10 Micron Red/Black Canister Fuel Filter with Cellulose Element

10 Micron Red/Black Canister Fuel Filter with Cellulose Element

Part Number: 12317
Skip to product information

Product Info

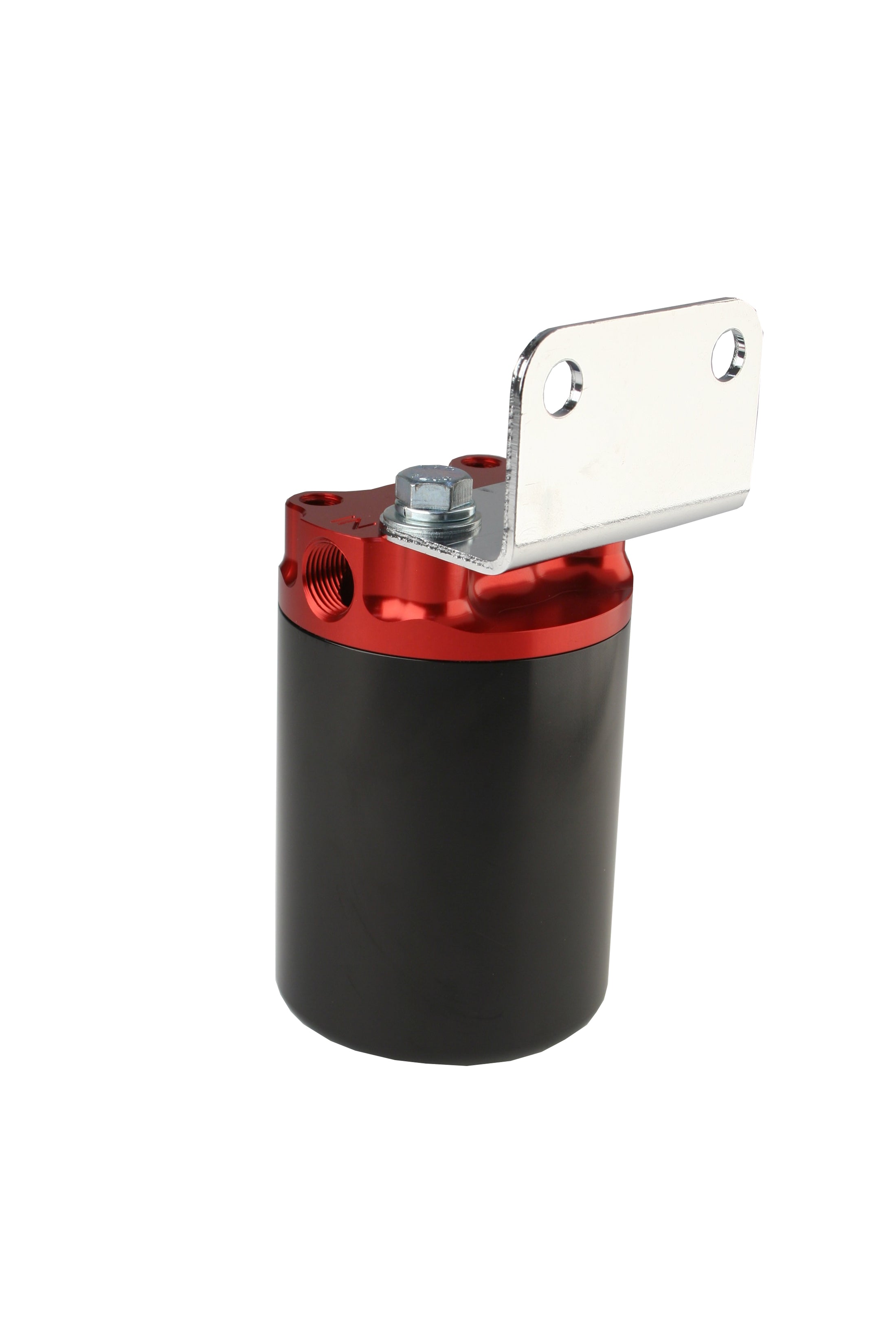

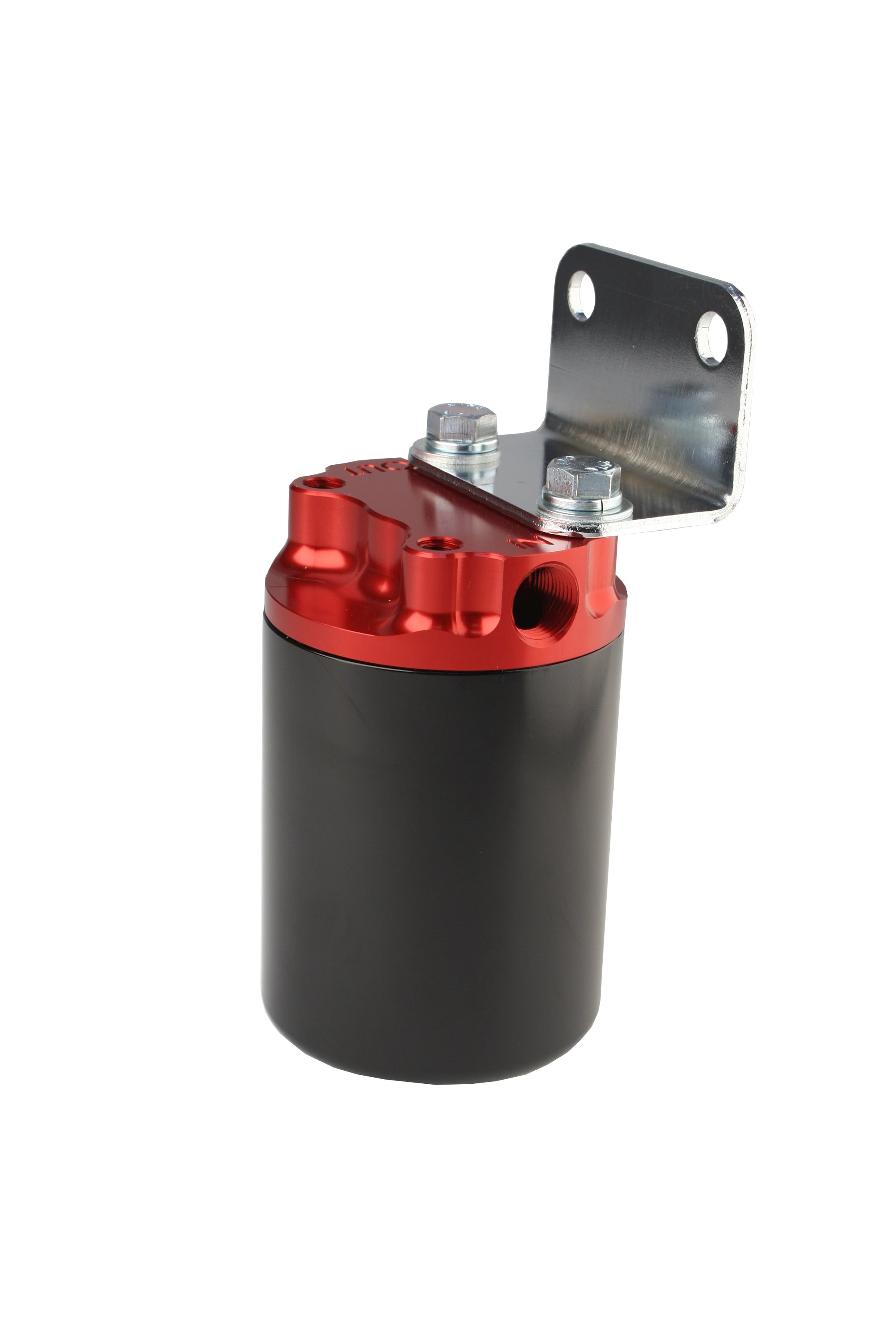

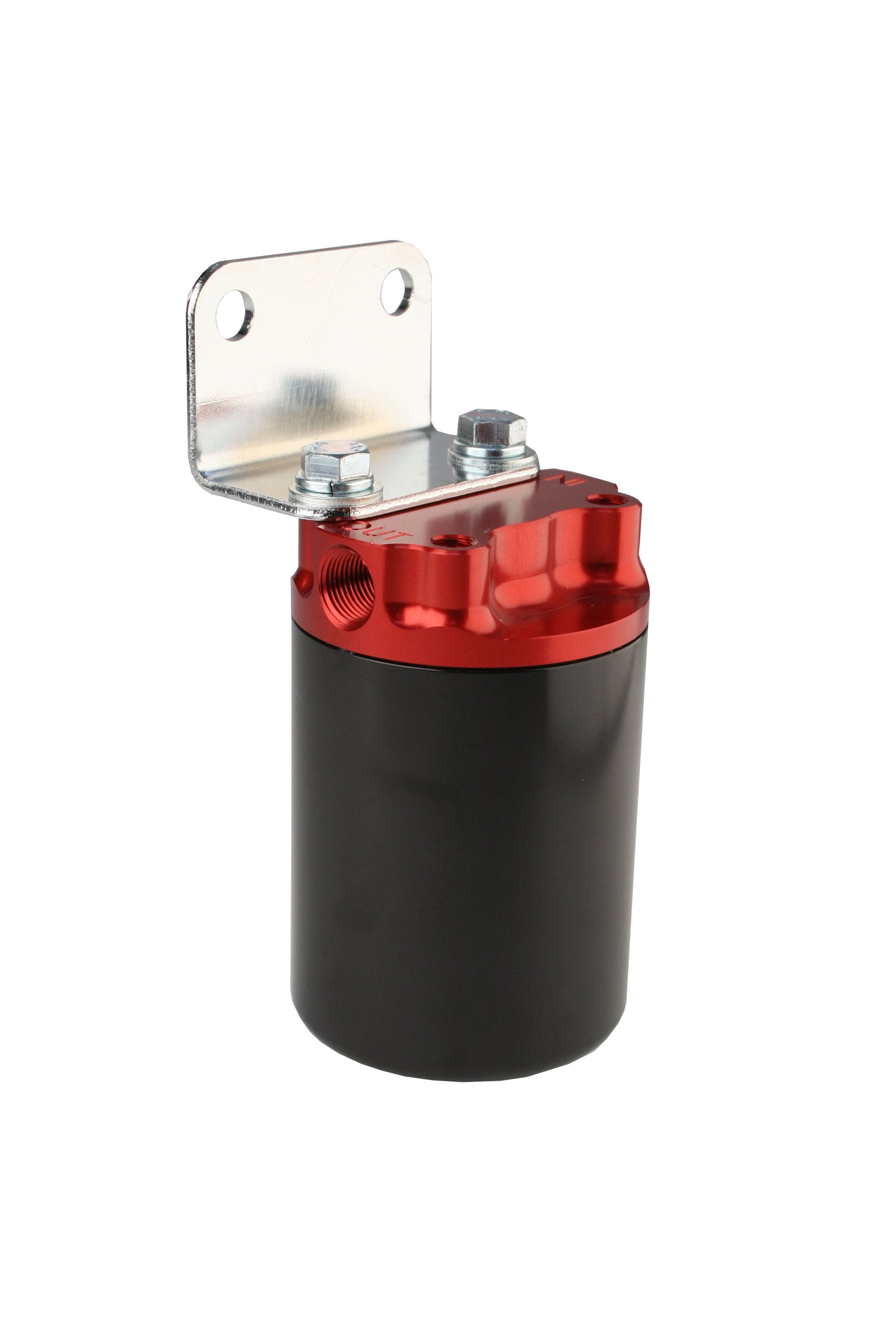

P/N 12317: 10 Micron, Red/Black Canister Fuel Filter

When an in-line fuel filter just won't work, these canister fuel filters are engineered to provide maximum flow with limited pressure drop in a canister style filter.

  • High-flow 10-micron fabric (fine) element.

  • Flows 1,500 lb/hr with a pressure drop of less than 1 PSI.

  • 3/8' NPT ports.

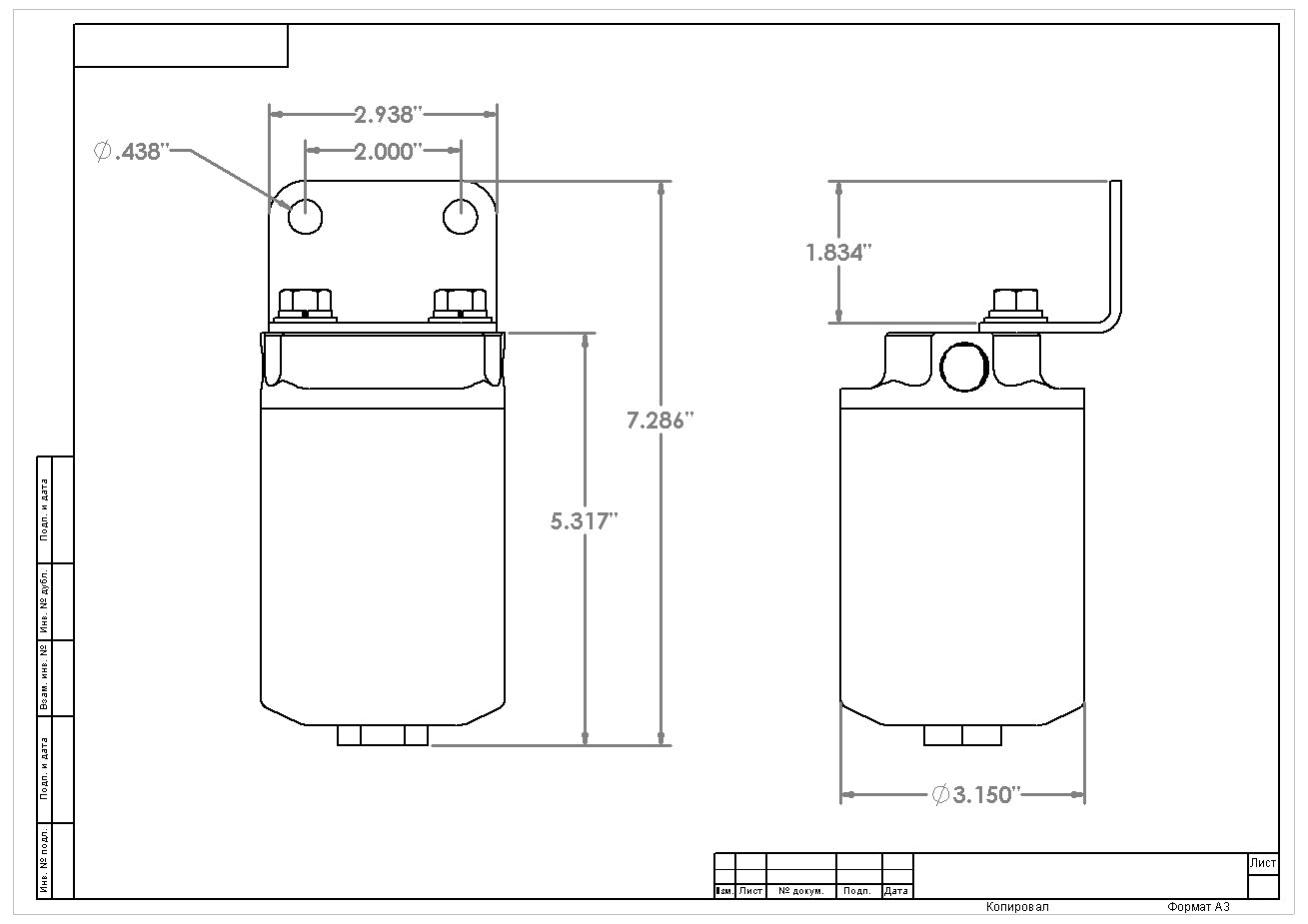

  • 6.125' tall x 3.75' diameter

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

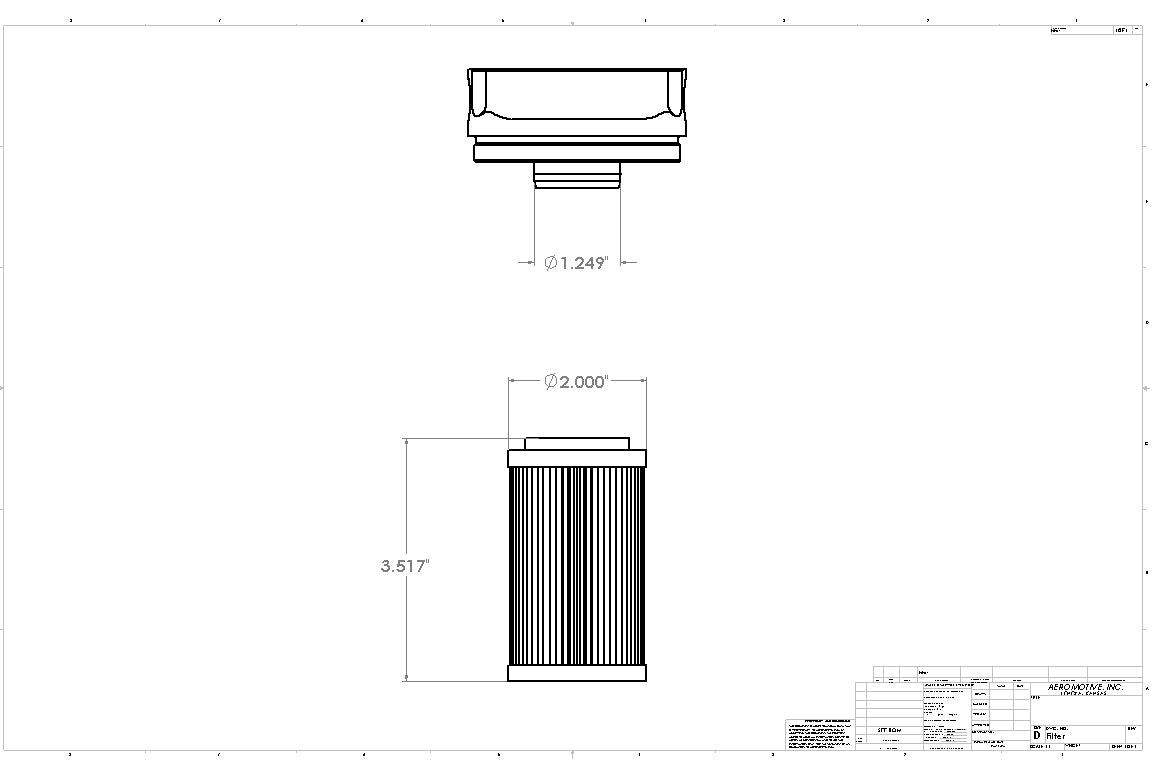

10 Micron Element For Canister Filter - 12608

Specifications

Fuel Filter Style Canister
Fuel Type Gas / Diesel
Inlet Quantity 1
Inlet Size 3/8 NPT
Inlet Attachment Female Thread
Inlet Outside Diameter 3/8 NPT
Outlet Quantity 1
Outlet Size 3/8 NPT
Outlet Attachment Female Thread
Outlet Outside Diameter 3/8 NPT
End 1 Gender Female
End 2 Gender Female
Fitting Type 3/8 NPT
Fittings Included No
Filter Element Included Yes
Filter Element Material Cellulose
Micron Rating 10
Smallest Particle Filtered 10 microns
Flow Rate 1500 Pounds Per Hour
Filter Housing Color Red
Filter Housing Finish Anodized
Filter Housing Diameter 3.75 Inches
Filter Housing Length 6.125 Inches
Filter Housing Material Billet Aluminum
Mounting Type External
Mounting Bracket Included Yes
Clamps Included No

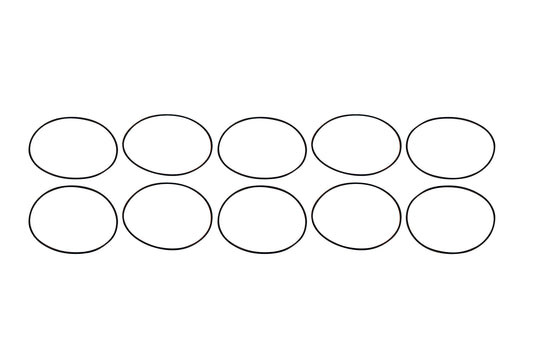

Gasket Or Seal Included Yes
Maximum Fuel Pressure (psi) 70 PSI
Universal Or Specific Fit Universal

filter replacement element
