10 Micron Pro-Series Fuel Filter with AN-12 ORB Ports & Cellulose Element

Part Number: 12310

Product Info

P/N 12310: Pro-Series 10-m Fabric AN-12 ORB Fuel Filter

High-flow, 10-micron fabric (cellulose) replaceable element

Featuring our tough, Hard-Coat Black Anodized finish.

Flows 2,000 lb/hr with a pressure drop of less than .5 PSI.

AN-12 ORB ports. Fittings available to adapt to AN-12, AN-10 and AN-08 line sizes. (see Fittings & Adapters)

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

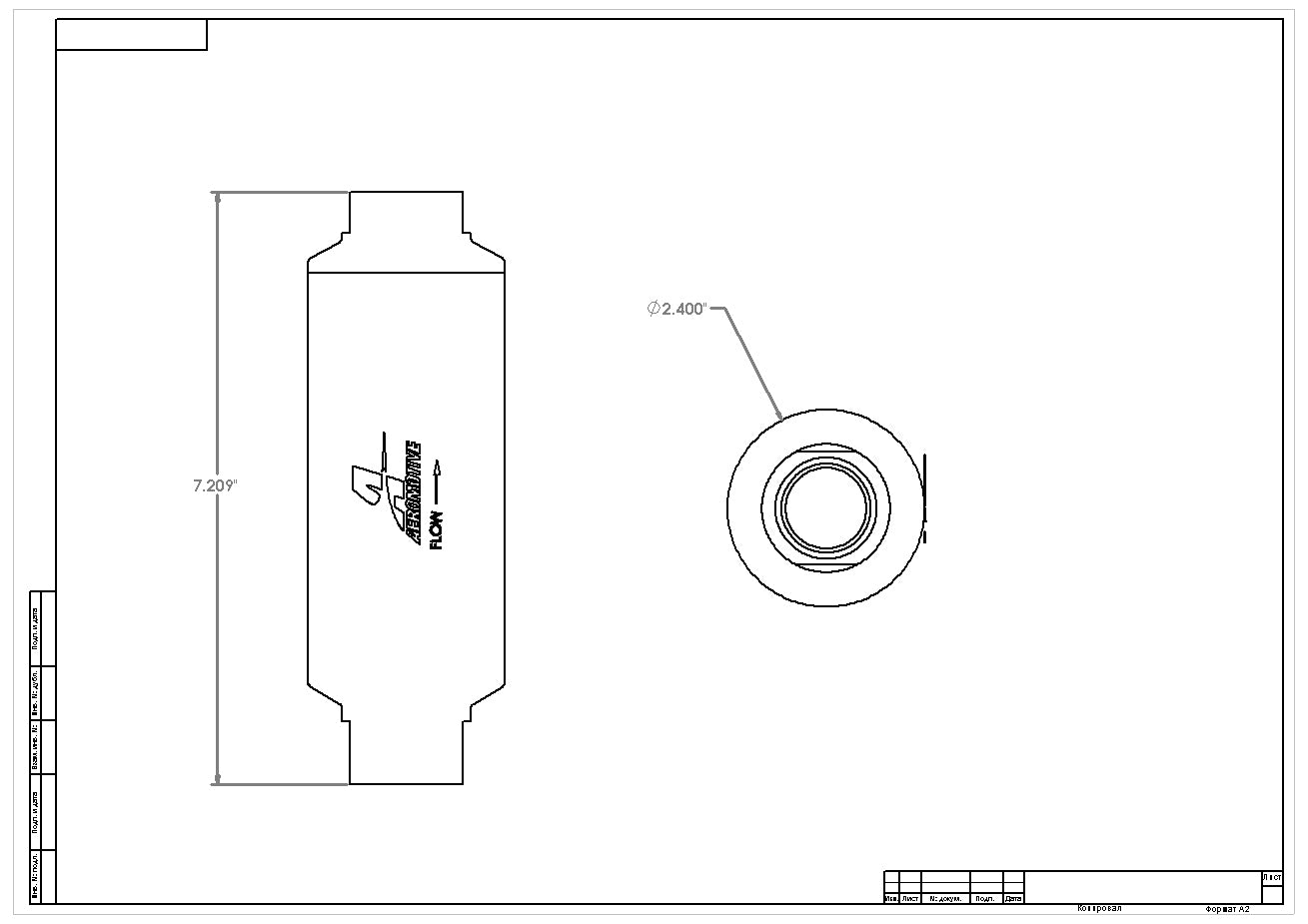

7" long x 2.5" diameter.

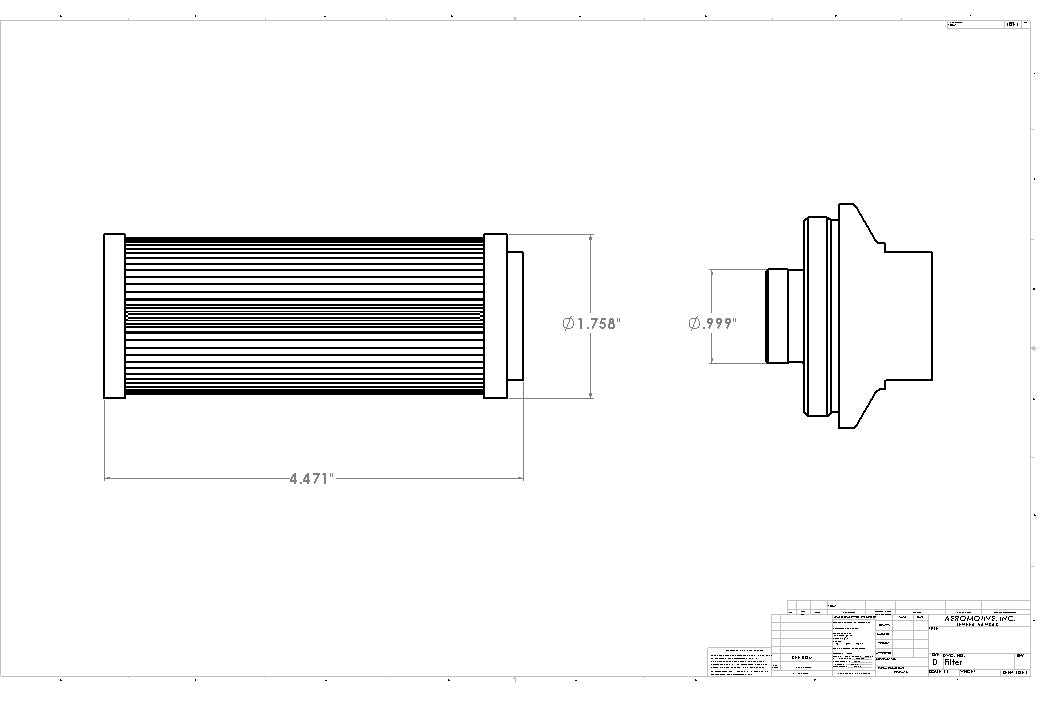

Replacement 10-m fabric element P/N 12610

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers filtration suitable for 200 - 4,000 plus HP applications burning, gas, ethanol and methanol fuels. Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.

Additional information

High-flow, 10-micron fabric (cellulose) replaceable element

Featuring our tough, Hard-Coat Black Anodized finish.

Flows 2,000 lb/hr with a pressure drop of less than .5 PSI.

AN-12 ORB ports. Fittings available to adapt to AN-12, AN-10 and AN-08 line sizes. (see Fittings & Adapters)

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

7" long x 2.5" diameter.

Replacement 10-m fabric element P/N 12610

Specifications

Fuel Filter Style	Inline
Fuel Type	Gas / Diesel
Inlet Quantity	1
Inlet Size	AN-12
Inlet Attachment	Female Thread
Inlet Outside Diameter	AN-12
Outlet Quantity	1
Outlet Size	AN-12
Outlet Attachment	Female Thread
Outlet Outside Diameter	AN-12
End 1 Gender	Female
End 2 Gender	Female
Fitting Type	AN-12
Fittings Included	No
Filter Element Included	Yes
Filter Element Material	Cellulose
Micron Rating	10
Smallest Particle Filtered	10 microns
Flow Rate	2000 Pounds Per Hour
Filter Housing Color	Black
Filter Housing Finish	Anodized
Filter Housing Diameter	2.5 Inches
Filter Housing Length	7 Inches
Filter Housing Material	Billet Aluminum
Mounting Type	External
Mounting Bracket Included	No
Clamps Included	No
Gasket Or Seal Included	Yes
Maximum Fuel Pressure (psi)	70 PSI
Universal Or Specific Fit	Universal
