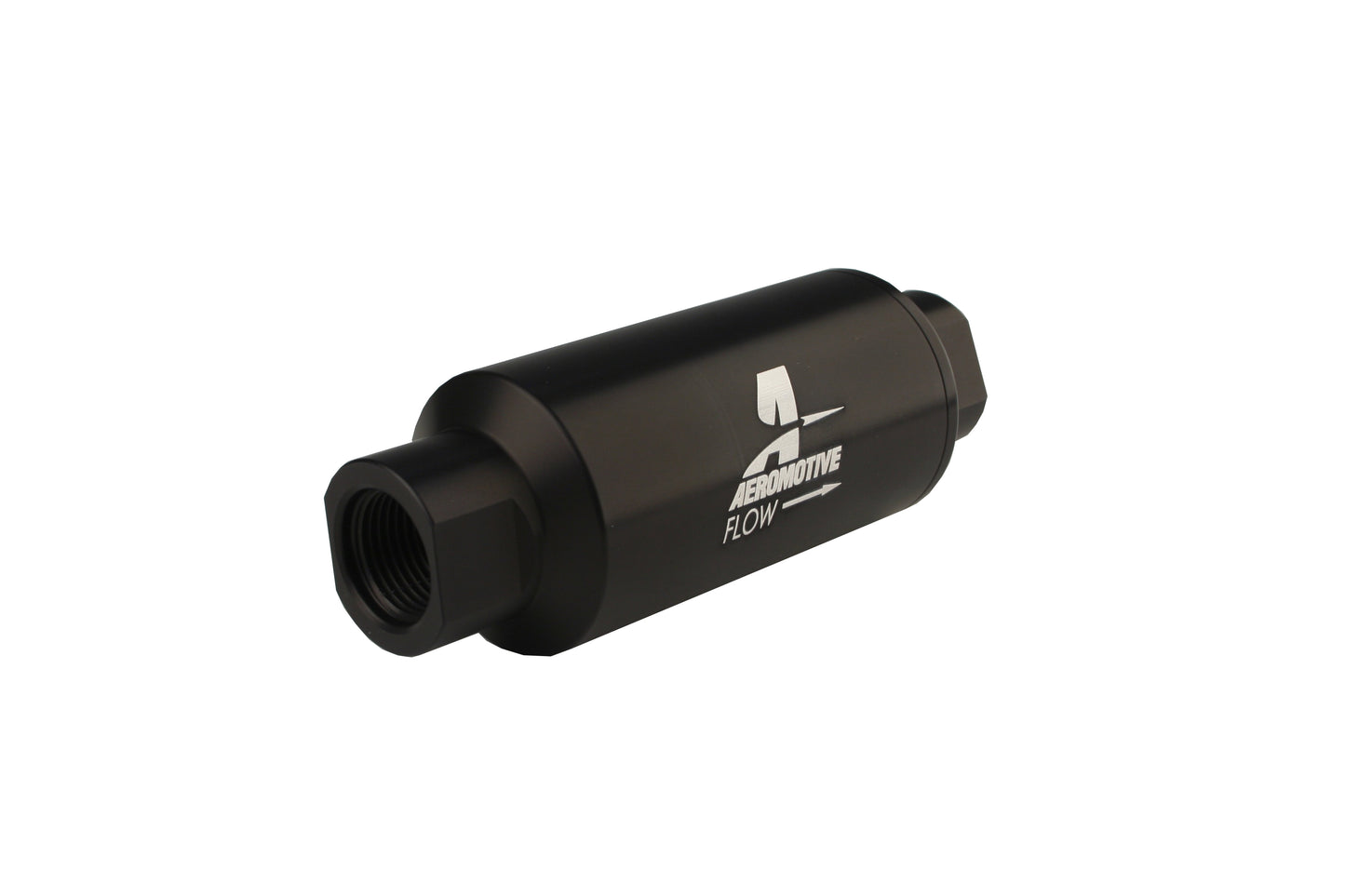

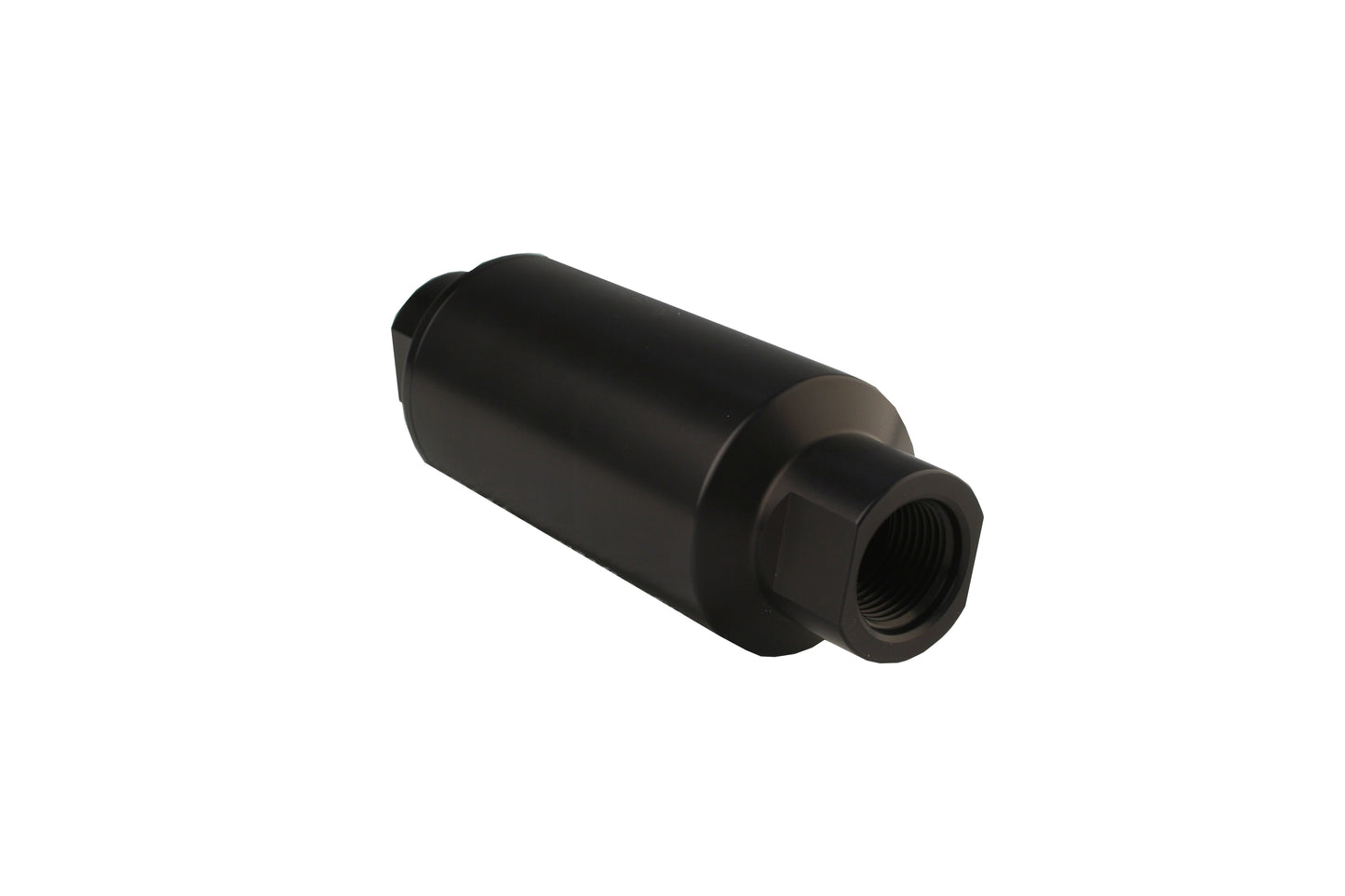

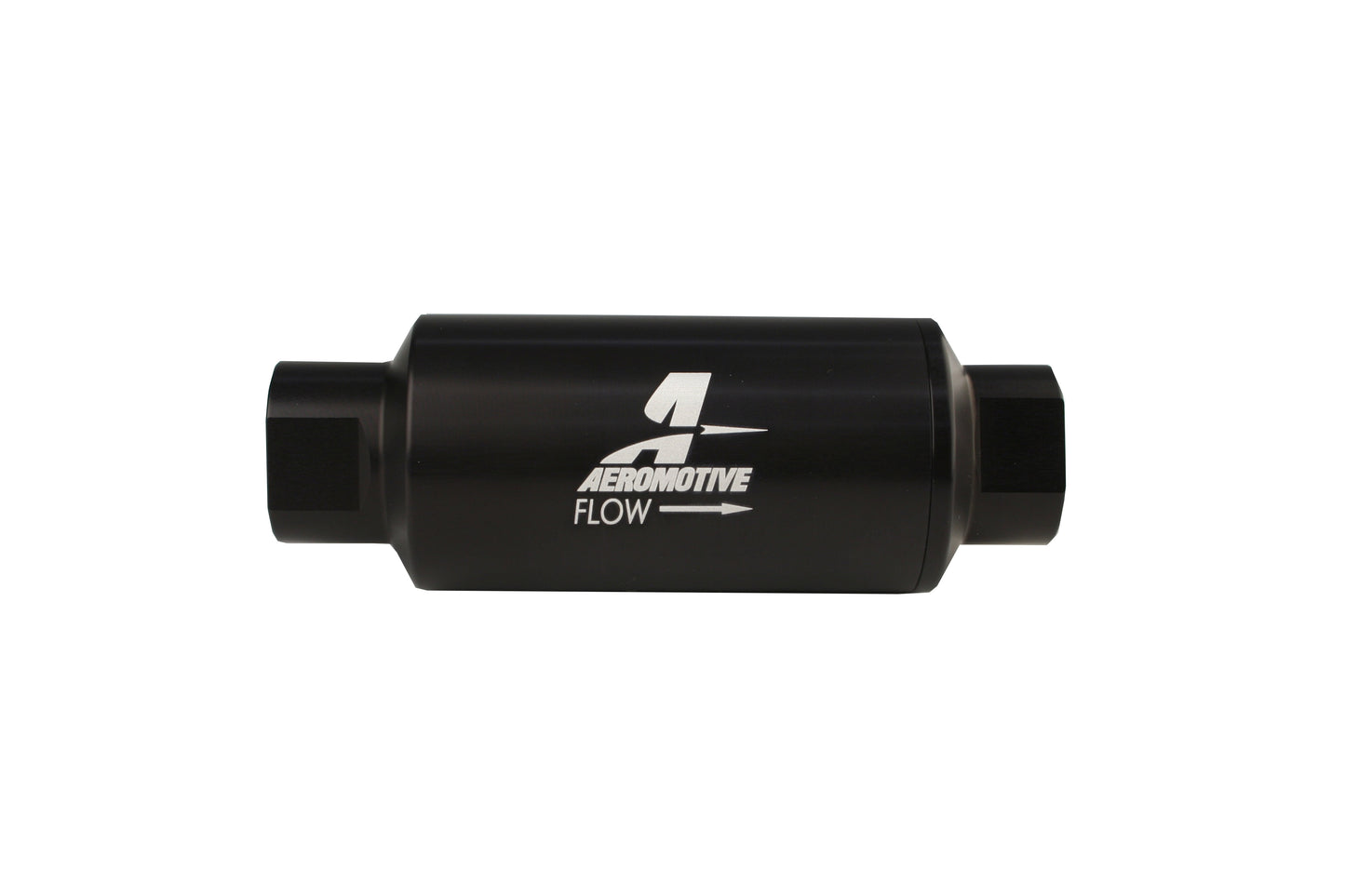

P/N 12307: Marine Inlet, ORB-10 Fuel Filter
100 Micron ORB 10 Element - 12604
- High-flow, 100-micron stainless steel (coarse) cleanable element.
- Flows 2,000 lb/hr with a pressure drop of less than .5 PSI.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. (see Fittings & Adapters)
- Compact size: 5.5' long x 2' diameterFor additional information on this product, see Regulator P/N 12304
100 Micron ORB 10 Element - 12604
Specifications
Specifications
Fuel Filter Style | Inline |
---|---|
Fuel Type | All Fuels |
Inlet Quantity | 1 |
Inlet Size | AN-10 |
Inlet Attachment | Female Thread |
Inlet Outside Diameter | AN-10 |
Outlet Quantity | 1 |
Outlet Size | AN-10 |
Outlet Attachment | Female Thread |
Outlet Outside Diameter | AN-10 |
End 1 Gender | Female |
End 2 Gender | Female |
Fitting Type | AN-10 |
Fittings Included | No |
Filter Element Included | Yes |
Filter Element Material | Stainless steel mesh |
Micron Rating | 100 |
Smallest Particle Filtered | 100 microns |
Flow Rate | 2000 Pounds Per Hour |
Filter Housing Color | Black |
Filter Housing Finish | Anodized |
Filter Housing Diameter | 2.0 Inches |
Filter Housing Length | 5.5 Inches |
Filter Housing Material | Billet Aluminum |
Mounting Type | External |
Mounting Bracket Included | No |
Clamps Included | No |
Gasket Or Seal Included | Yes |
Maximum Fuel Pressure (psi) | 70 PSI |
Universal Or Specific Fit | Universal |
filter replacement element
filter replacement element
100 Micron Stainless Mesh Replacement Element for ORB-10 Filter Housings
Regular price
$56.95
Sale price
$56.95
Regular price
Unit price
/
per
2" Filter Body 10-pack Replacement O-Rings
Regular price
$11.95
Sale price
$11.95
Regular price
Unit price
/
per
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
Regular price
$236.95
Sale price
$236.95
Regular price
Unit price
/
per
Part Number: 12307
