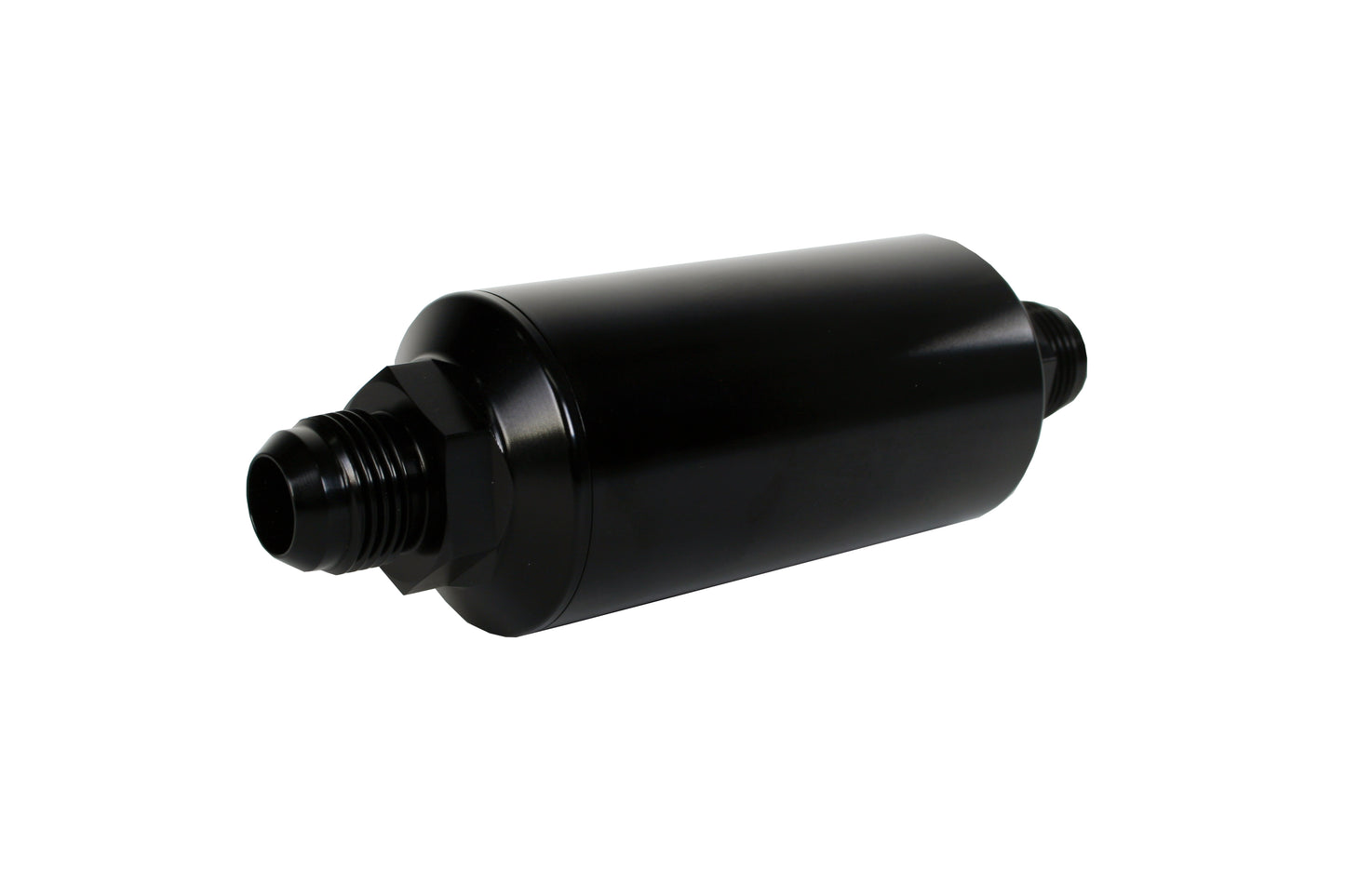

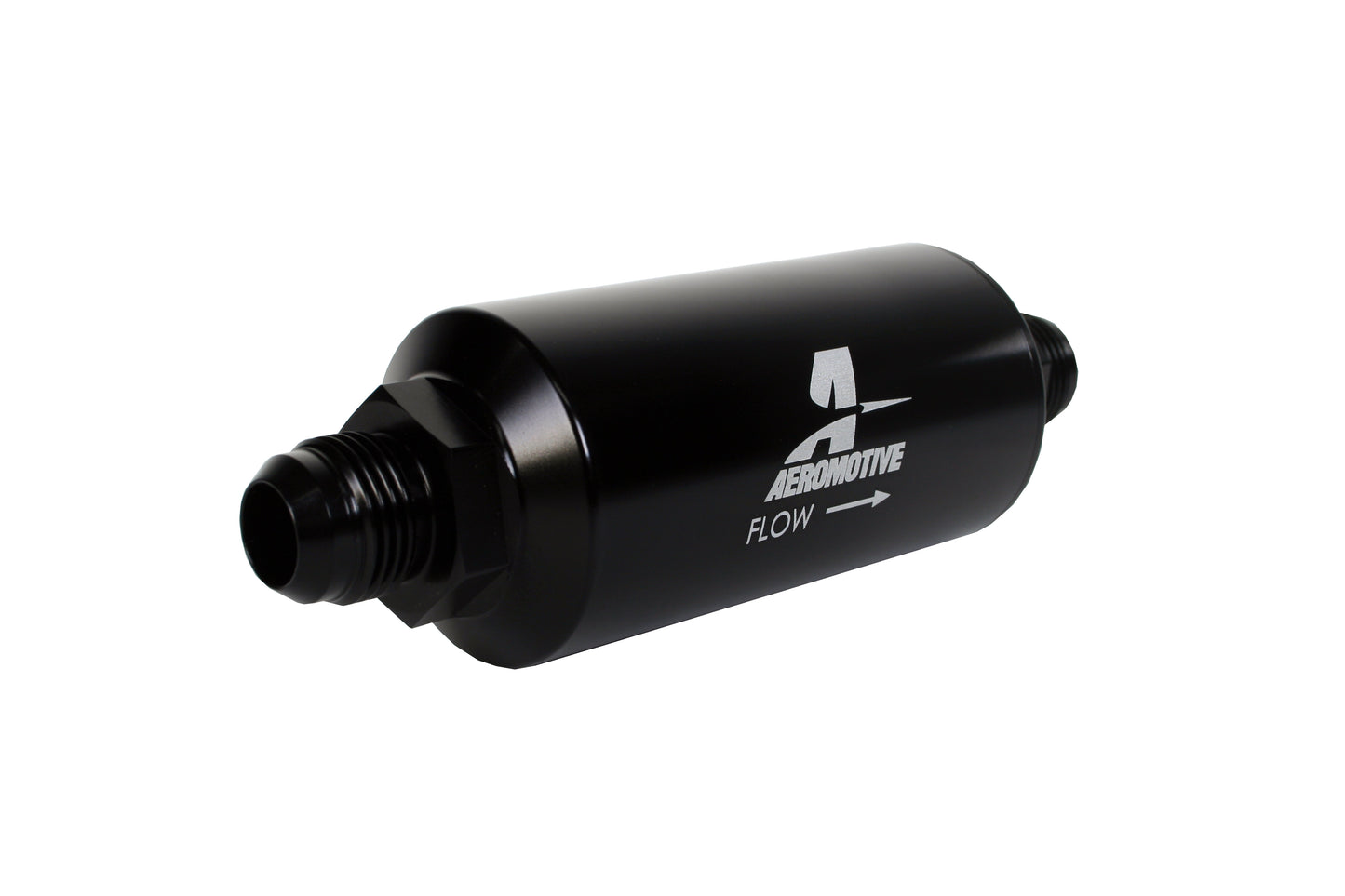

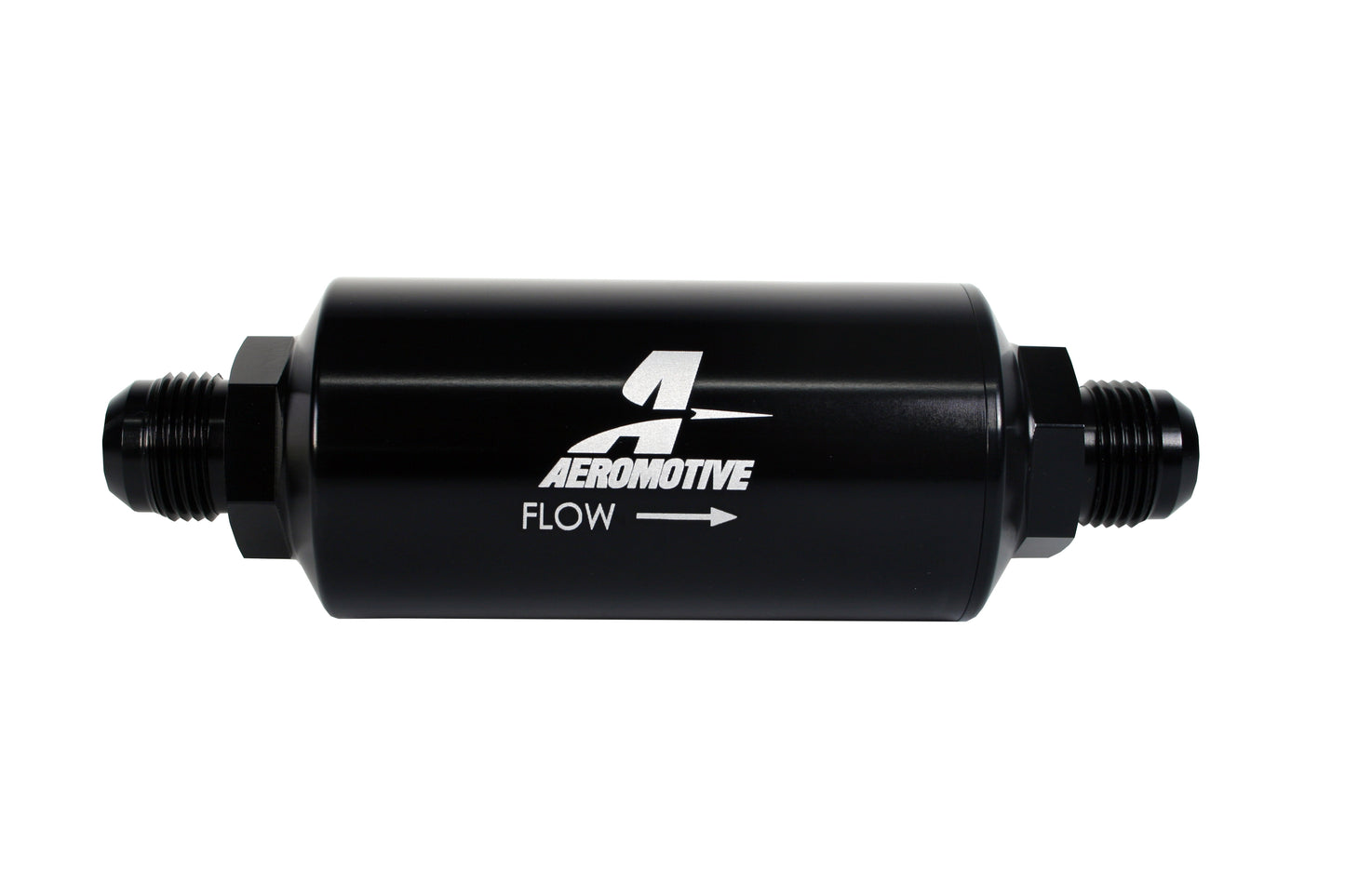

100 Micron Black Fuel Filter with Male AN-10 Ports & Stainless Mesh Element

100 Micron Black Fuel Filter with Male AN-10 Ports & Stainless Mesh Element

Part Number: 12389

Product Info
AN-10, 100 micron stainless steel element, black anodize finish

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.

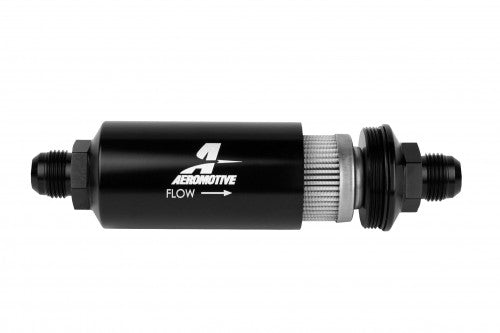

  • High-flow, 100-micron Stainless replaceable element.

  • Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.

  • Male AN-10

  • All filter assemblies feature an O-ring for positive sealing in high pressure applications.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • CNC-machined from 6061-T6 aircraft aluminum.

  • Bright dip black anodized finish for a corrosion resistant, show car quality appearance.


100 Micron ORB 10 Element - 12604

Specifications
Fuel Filter Style Inline
Fuel Type All Fuels
Inlet Quantity 1
Inlet Size AN-10
Inlet Attachment Male Thread
Inlet Outside Diameter AN-10
Outlet Quantity 1
Outlet Size AN-10
Outlet Attachment Male Thread
Outlet Outside Diameter AN-10
End 1 Gender Male
End 2 Gender Male
Fitting Type AN-10
Fittings Included No
Filter Element Included Yes
Filter Element Material Stainless steel mesh
Micron Rating 100
Smallest Particle Filtered 100 microns
Flow Rate 2000
Filter Housing Color Black
Filter Housing Finish Anodized
Filter Housing Diameter 2.0
Filter Housing Length 5.5
Filter Housing Material Billet Aluminum
Mounting Type External
Mounting Bracket Included No
Clamps Included No
Gasket Or Seal Included Yes
Maximum Fuel Pressure (psi) 70
Universal Or Specific Fit Universal

filter replacement element

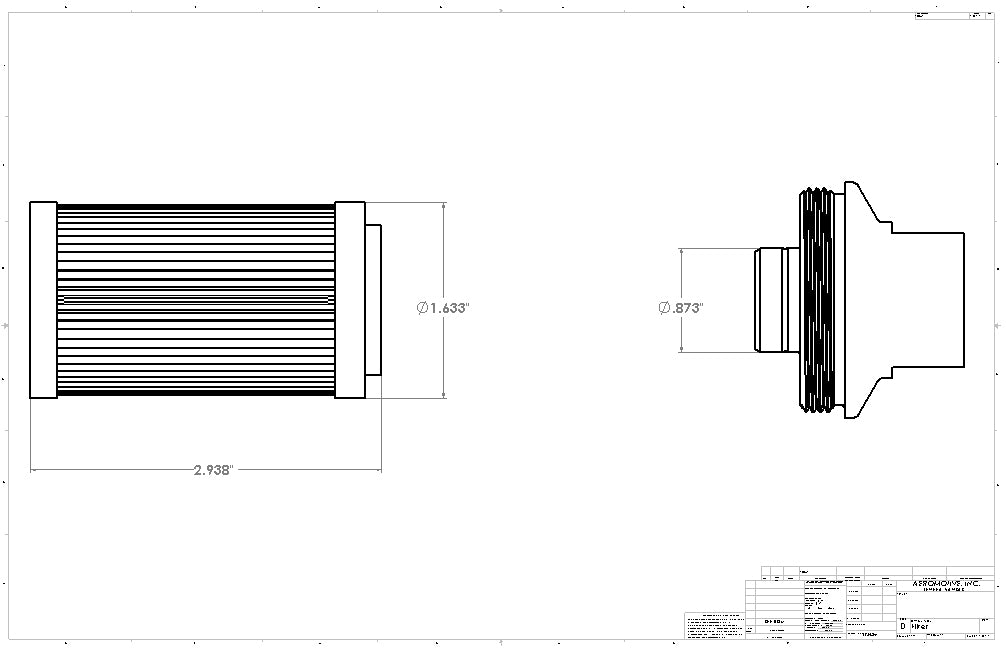

  • 100 Micron Stainless Mesh Replacement Element for ORB-10 Filter Housings
