Extreme Flow 40-m SS AN-16 ORB Fuel Filter

$339.95

-

P/N 12363: Extreme Flow 40-m SS AN-16 ORB Fuel Filter
Max flow filtration for Brushless Gear and Mechanical Fuel Pumps

High-flow Stainless Steel filter ideal for post pump filtration in a broad range fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.

Suitable as a post filter with mechanical or electric pumps up to 32-GPM.

  • High-flow, 40-micron Stainless Steel cleanable element.
  • Ideal for use with gasoline, Alcohol Methanol, Ethanol and Diesel fuels.
  • Suitable post filter for up to 32-GPM mechanical or electric fuel pumps.
  • Flows 9,000 lb/hr (24-GPM) with a pressure drop of less than 2-PSI.
  • Flows 12,000 lb/hr (32-GPM) with a pressure drop of less than 3-PSI.
  • AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • Extreme-Flow filters feature a tough, Hard-Coat Black finish.
  • 10″ long x 2-5/8″ diameter.
  • Replacement element P/N 12663
SKU: 12363 Categories: ,

Description

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers a full line of filter options suitable for 200 – 4,000 plus HP applications.  Specialized filter media for gas, ethanol and methanol fuels available.  Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you’ve come to expect from all Aeromotive components.

High-flow Stainless Steel filter ideal for post pump filtration in a broad range fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.

Suitable as a post filter with mechanical or electric pumps up to 32-GPM.

  • High-flow, 40-micron Stainless Steel cleanable element.
  • Ideal for use with gasoline, Alcohol Methanol, Ethanol and Diesel fuels.
  • Suitable post filter for up to 32-GPM mechanical or electric fuel pumps.
  • Flows 9,000 lb/hr (24-GPM) with a pressure drop of less than 2-PSI.
  • Flows 12,000 lb/hr (32-GPM) with a pressure drop of less than 3-PSI.
  • AN-16 ORB ports. Fittings available to adapt these filters from AN-16 down to AN-08 line sizes. (see Fittings & Adapters).
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • Extreme-Flow filters feature a tough, Hard-Coat Black finish.

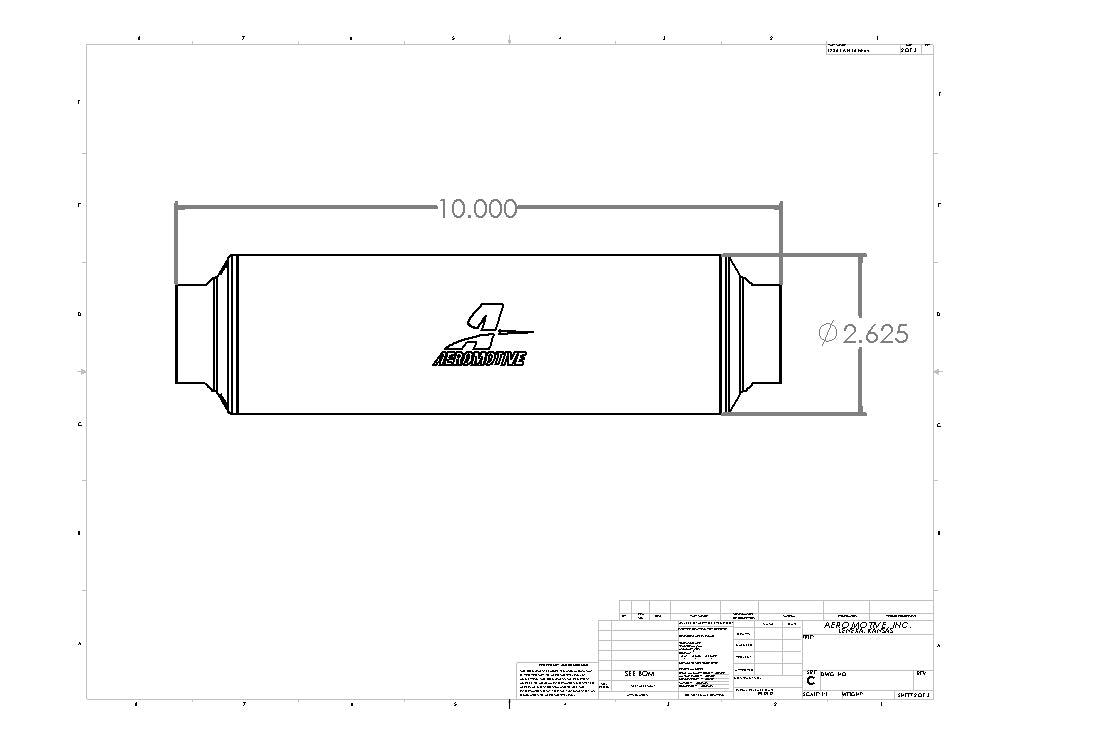

  • 10″ long x 2-5/8″ diameter.

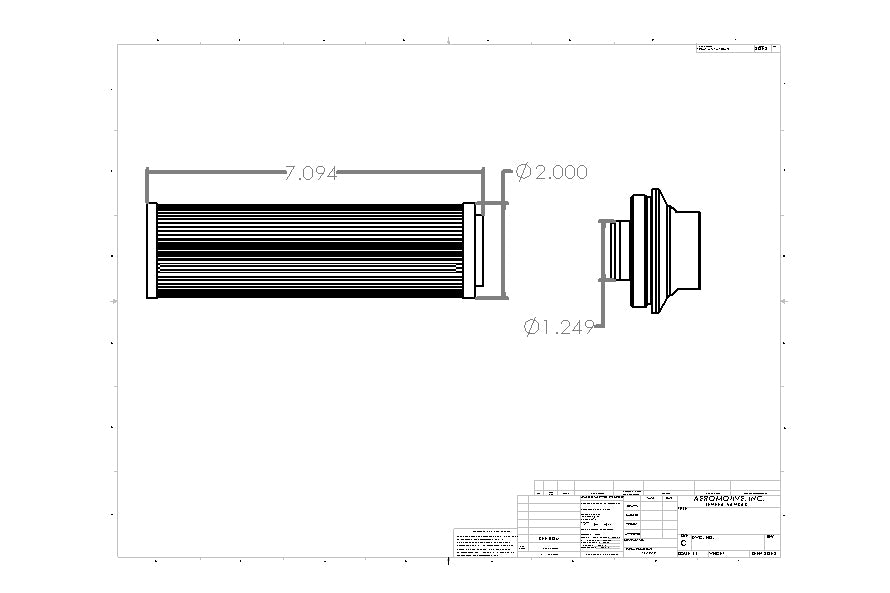

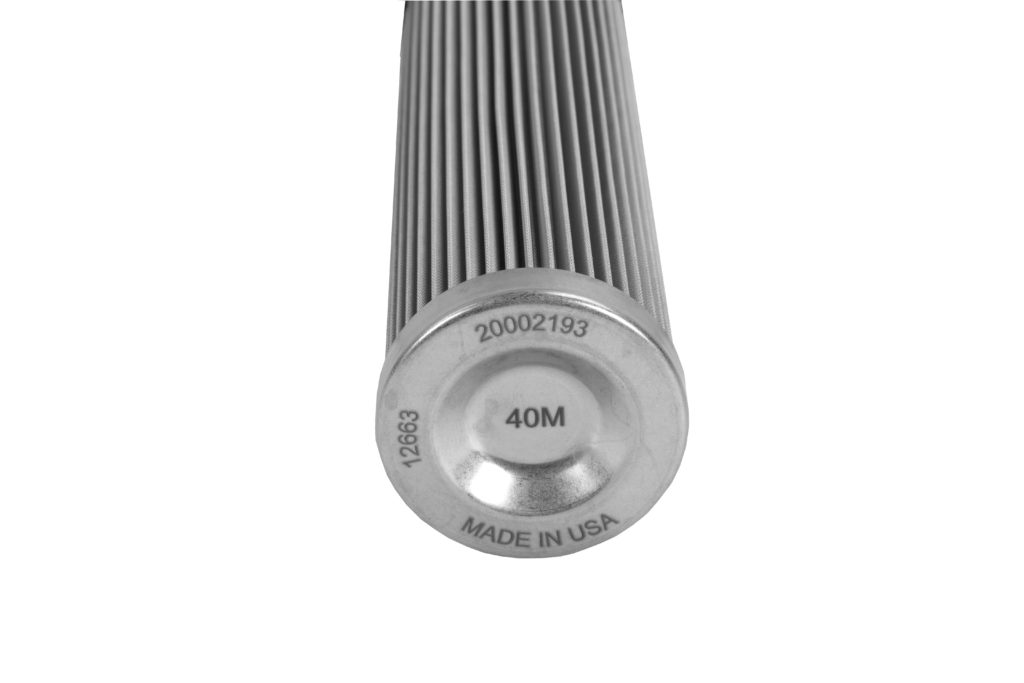

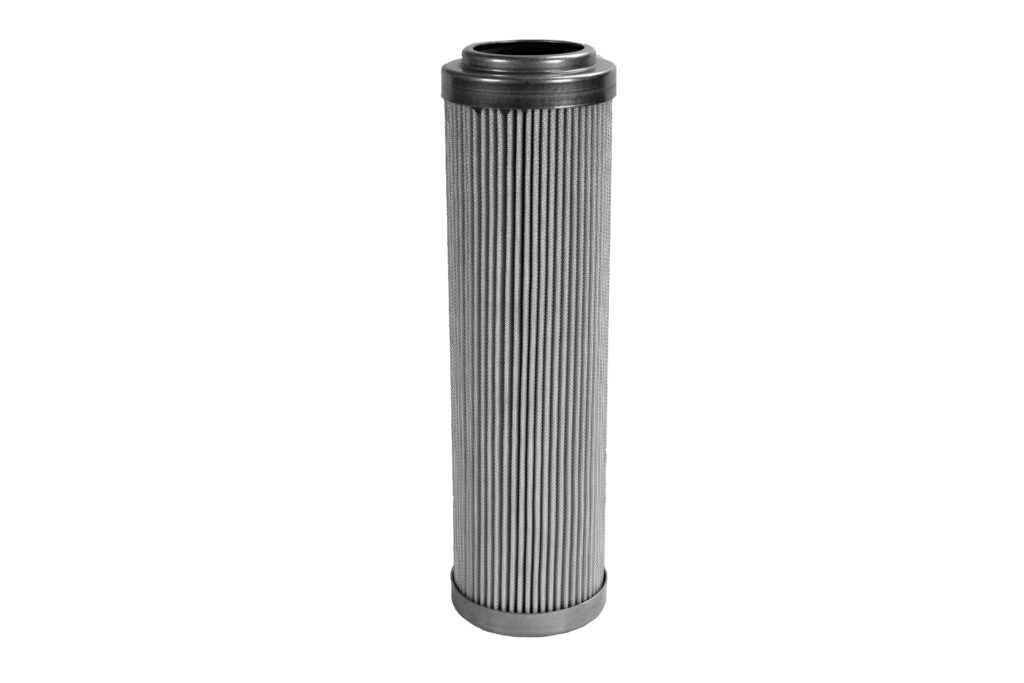

  • Replacement element P/N 12663





Additional information

Weight 2.43 lbs
Dimensions 3.5 × 3.5 × 10.5 in

Mounting Configuration: External

CARB or EFI Power Adder FUEL Horsepower
