40 Micron Stainless Mesh Replacement for Extreme Flow Filters

40 Micron Stainless Mesh Replacement for Extreme Flow Filters

Part Number: 12663

Product Info

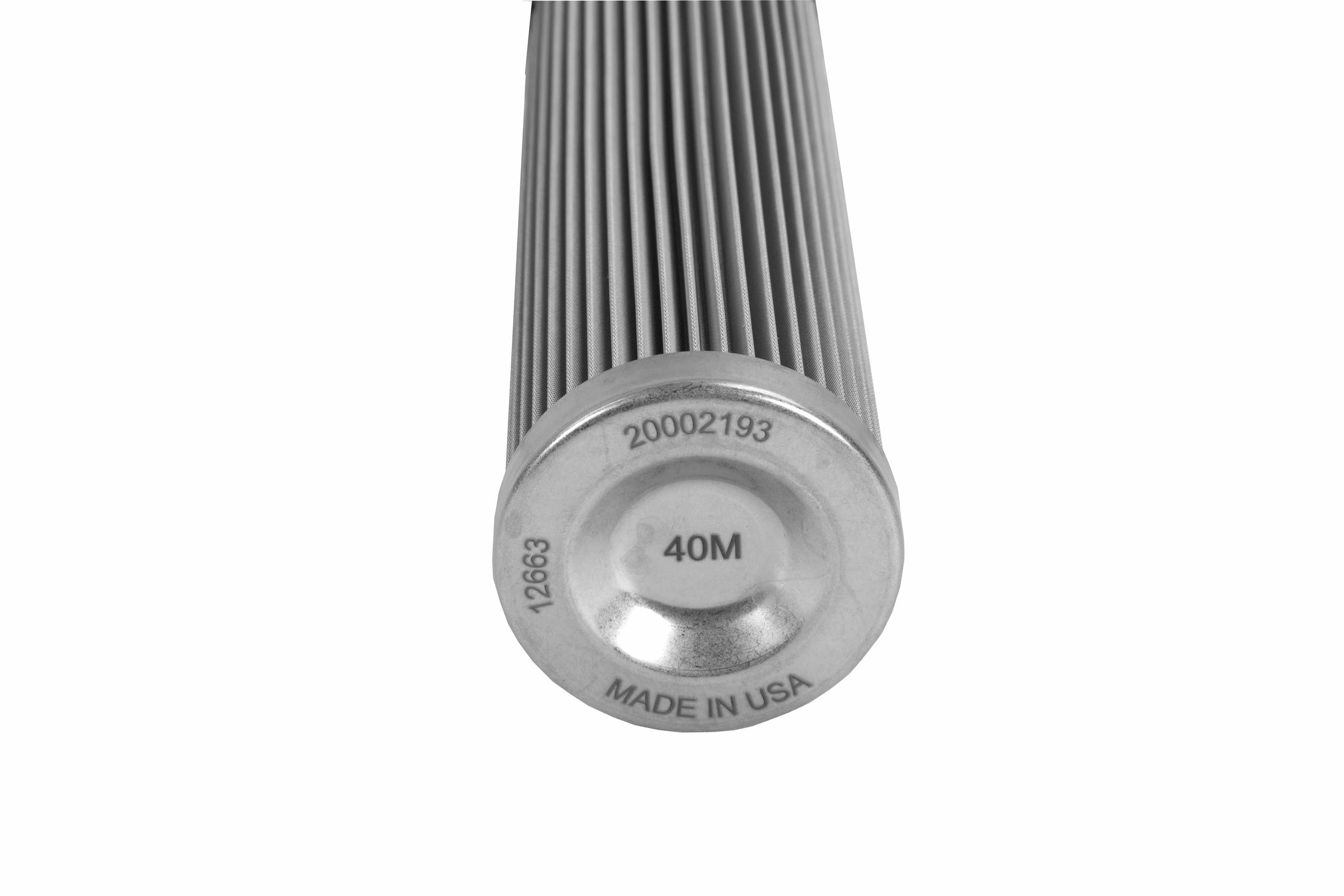

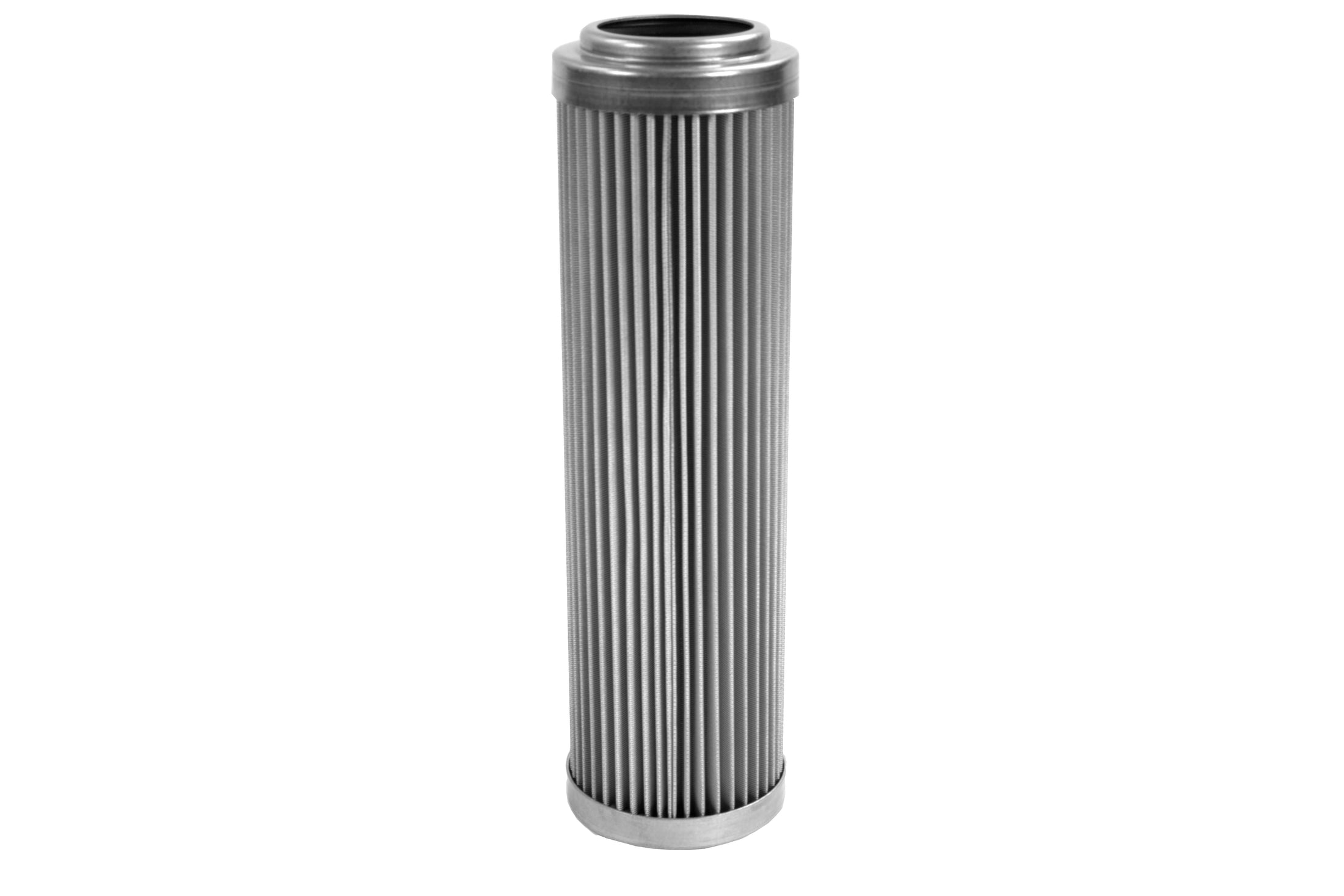

P/N 12663: Extreme Flow 40-m SS AN-16 Filter Element
Max flow filtration for Brushless Gear and Mechanical Fuel Pumps

High-flow Stainless Steel filter ideal for post pump filtration in a broad range fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.

Suitable as a post filter with mechanical or electric pumps up to 32-GPM.


  • High-flow, 40-micron Stainless Steel cleanable element.

  • Ideal for Gasoline, Alcohol Methanol, Ethanol and Diesel fuels.

  • Suitable post filter for up to 32-GPM mechanical or electric fuel pumps.

  • Flows 9,000 lb/hr (24-GPM) with a pressure drop of less than 2-PSI.

  • Flows 12,000 lb/hr (32-GPM) with a pressure drop of less than 3-PSI.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

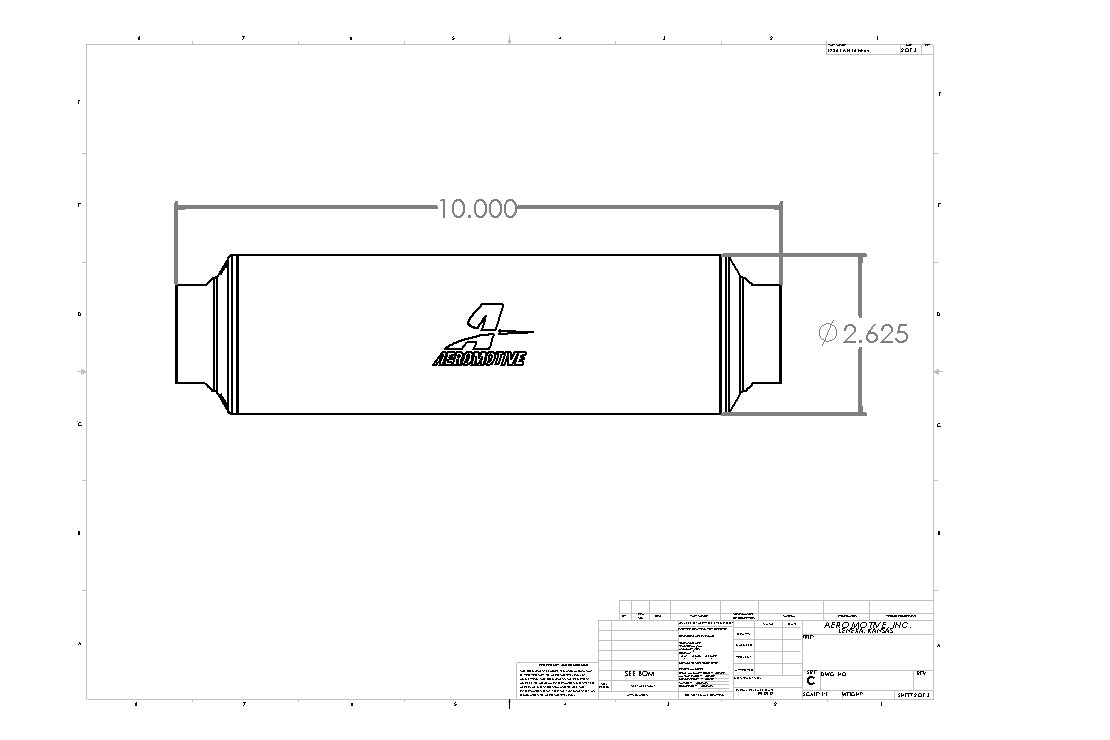

  • Replacement Element for Extreme Flow AN-16 ORB Filter P/N 12363

  • Suitable for use in all Aeromotive AN-16 Filter Housings.

Additional information
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. Aeromotive offers a full line of filter options suitable for 200 - 4,000 plus HP applications.  Specialized filter media for gas, ethanol and methanol fuels available.  Our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.

High-flow Stainless Steel filter ideal for post pump filtration in a broad range fuel applications including Alcohol Methanol, Ethanol, Gasoline and Diesel fuel using mechanical or electric fuel pumps up to 32-GPM.

Suitable as a post filter with mechanical or electric pumps up to 32-GPM.


  • High-flow, 40-micron Stainless Steel cleanable element.

  • Ideal for Gasoline, Alcohol Methanol, Ethanol and Diesel fuels.

  • Suitable post filter for up to 32-GPM mechanical or electric fuel pumps.

  • Flows 9,000 lb/hr (24-GPM) with a pressure drop of less than 2-PSI.

  • Flows 12,000 lb/hr (32-GPM) with a pressure drop of less than 3-PSI.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Replacement Element for Extreme Flow AN-16 ORB Filter P/N 12363

  • Suitable for use in all Aeromotive AN-16 Filter Housings.

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.

Reviews

40 Micron Stainless Mesh Replacement for Extreme Flow Filters

40 Micron Stainless Mesh Replacement for Extreme Flow Filters

Part Number: 12663
$87.95
$87.95

Part Number: 12663
Does This part fit My vehicle?
Product details
1 Year Warranty 90 Days Return Policy
