07-12 Shelby GT500 Stealth A1000 Street Fuel System with 5.4L 4-V Fuel Rails
P/N 17313: 07-12 GT500 Stealth EFI Fuel System.
For Mustang GT500’s with GT500 4-Valve 5.4L Engine.
- Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated.
- For Mustang Shelby GT500’s with 5.4L GT500 Supercharged 4V engine and/or equivalent intake.
- Includes Aeromotive’s Fuel Pump Speed Controller for continuous duty street/strip applications.
For Limited Duty/Racing Applications See P/N: 17312
This Mustang Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing Fuel Pump Speed Controller, designed to keep fuel cool in cars that will see extended street driving but still need full pump performance for all out racing. Fuel Lines and Hose-Ends sold separately. The purchase of a Tach Adapter will be required to operate Pump Speed Controller.

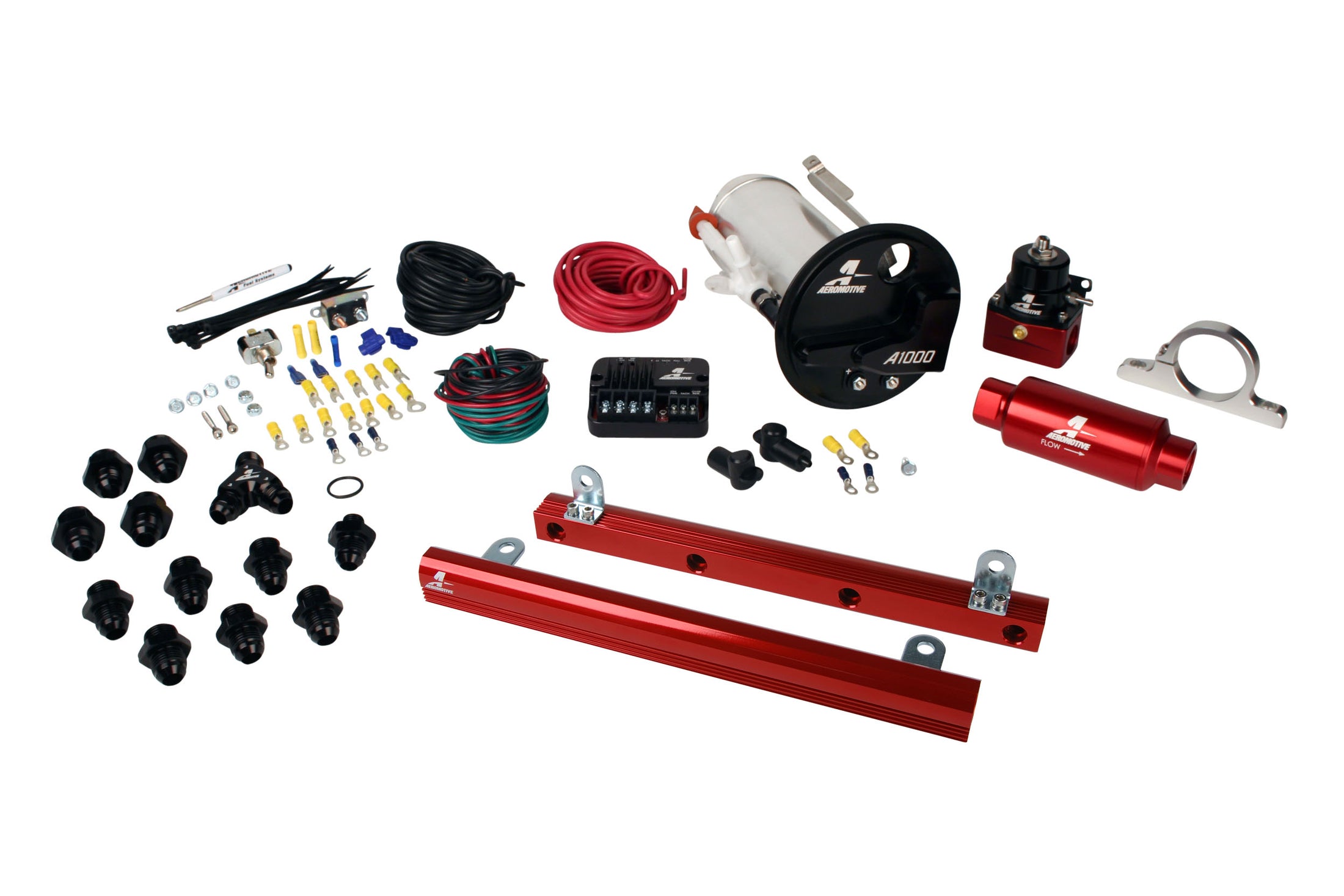

This system contains the following parts (click on any item for more details):
1ea p/n 14144 Fuel Rails
1ea p/n 13101 Fuel Pressure Regulator
1ea p/n 18682 Fuel Pump Assembly
1ea p/n 16306 Fuel Pump Speed Controller
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
4ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15649 ORB-06 to AN-08 Fitting
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
|Dimensions||19 × 13 × 13 in|
|CARB or EFI||Power Adder||FUEL||Horsepower|
