05-09 Mustang GT Stealth A1000 Racing Fuel System with 5.4L 4-V Fuel Rails
P/N 17304: 05-09 Mustang GT Stealth A1000 System.
For Mustang GT’s with GT500 4-Valve 5.4L Swap.
- Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated on gas.
- For 2005-2009 Mustang GT’s with engine swap to 5.4L GT500 Supercharged 4V engine and/or equivalent intake.
- Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty racing applications.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
For Continuous Duty/Street Applications See P/N 17305

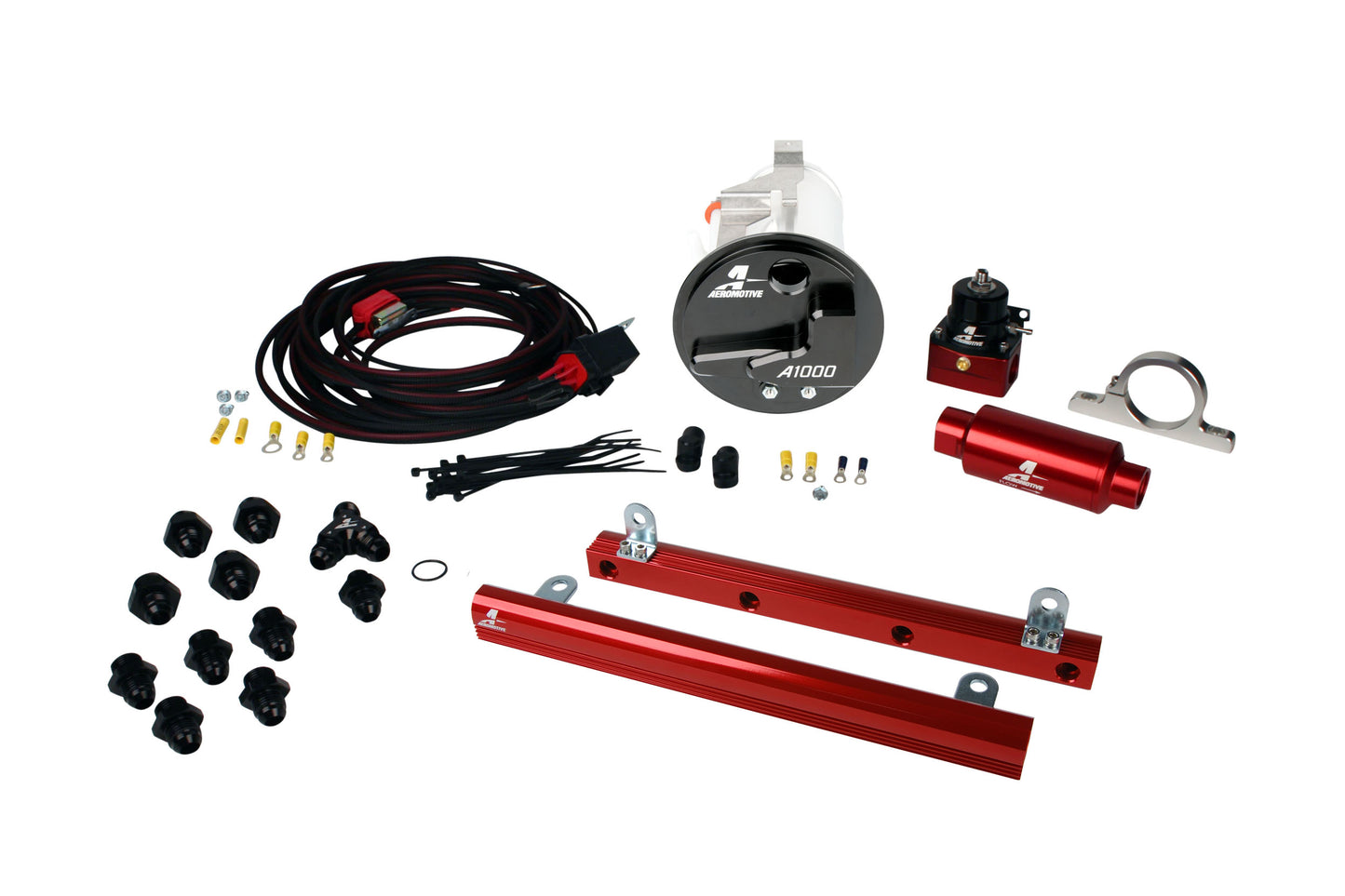

This Mustang Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving. Fuel Lines and Hose-Ends sold separately.
This system contains the following parts (click on any item for more details):
1ea p/n 14144 Fuel Rails
1ea p/n 13101 Fuel Pressure Regulator
1ea p/n 18676 Fuel Pump Assembly
1ea p/n 16307 Fuel Pump Wiring Kit
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
4ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15649 ORB-06 to AN-08 Fitting
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
|Dimensions||19 × 13 × 13 in|
Mounting Configuration: External
|CARB or EFI||Power Adder||FUEL||Horsepower|
