03-13 Corvette Stealth A1000 Street Fuel System with LS2 Fuel Rails
P/N 17175 03-13 Corvette Stealth A1000 EFI System
For Corvettes with Stock LS2 Style Engine.
- Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated.
- For Corvette’s equipped with LS2 engine and/or equivalent intake.
- Includes Aeromotive’s Fuel Pump Speed Controller for continuous duty street/strip application.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
For Limited Duty/Racing Applications See P/N 17174
This Corvette Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit inside the stock, OEM Corvette tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing Fuel Pump Speed Controller, designed to keep fuel cool in cars that will see extended street driving but still need full pump performance for all out racing. Fuel Lines and Hose-Ends sold separately. The purchase of a separate tach adapter may be required to operate the Fuel Pump Speed Controller.

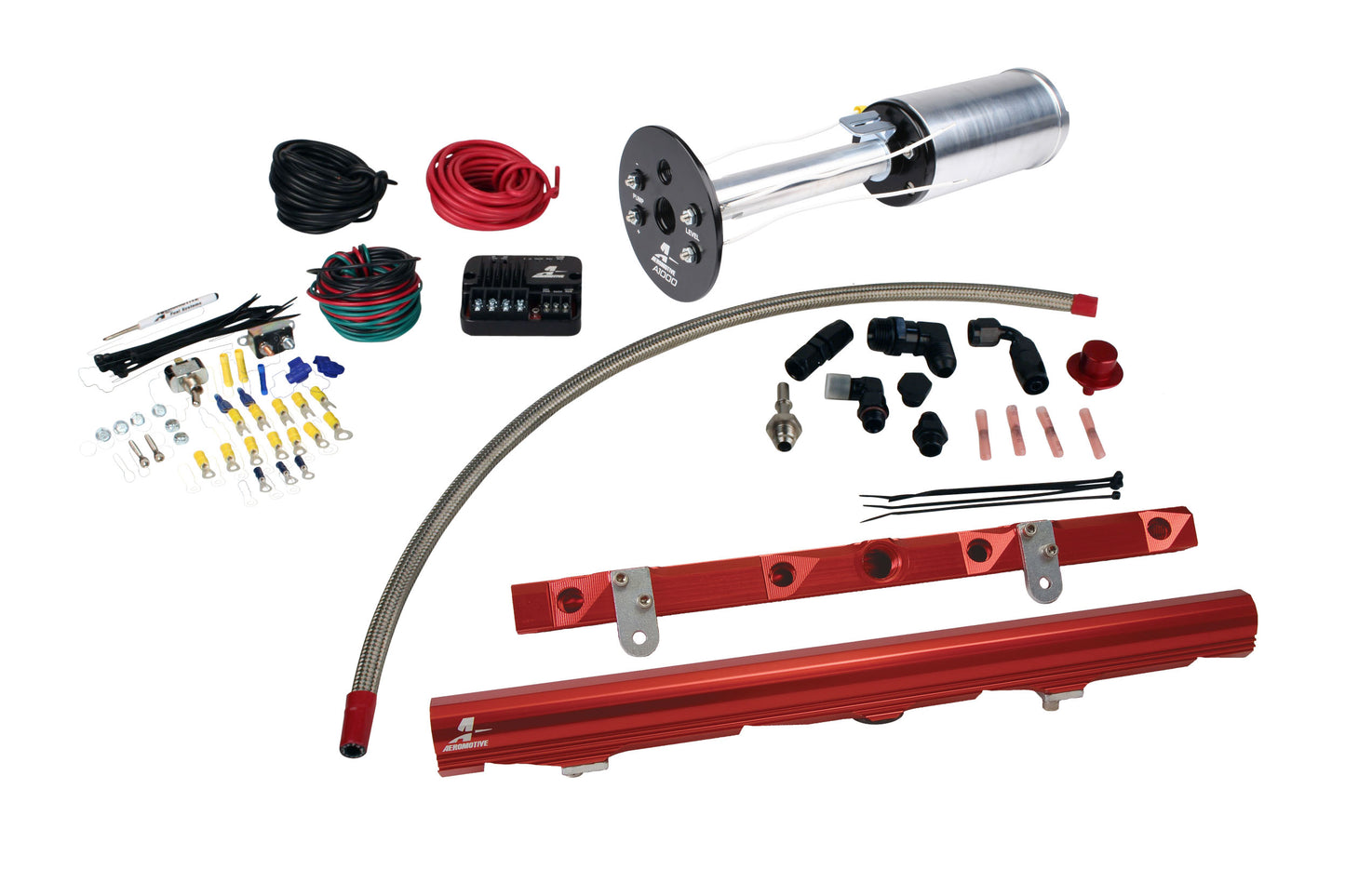

This kit contains the following parts:
1ea p/n 14114 Fuel Rails
1ea p/n 13101 Fuel Pressure Regulator
1ea p/n 18670 Fuel Pump Assembly
1ea p/n 16306 Fuel Pump Speed Controller
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
1ea p/n 15602 AN-06 Union Fitting
1ea p/n 15606 ORB-06 to AN-06 Fitting
4ea p/n 15607 ORB-08 to AN-08 Fittings
4ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
|Dimensions||13 × 13 × 19 in|
Mounting Configuration: External
|CARB or EFI||Power Adder||FUEL||Horsepower|
