03-04 Cobra Stealth Eliminator Race Fuel System
P/N 17190: 03-04 Cobra Stealth Eliminator System.
For Mustang Cobra’s with 4.6L 4-V Cobra Engine.
- Rated for EFI engines producing up to 1,400 Flywheel HP Forced Induction or 1,900 Flywheel HP Naturally Aspirated on gas.
- For 2003-2004 Mustang Cobra Chassis with Cobra Engine and/or Intake Manifold and OEM style 03-04 Cobra Fuel Tank.
- Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty racing applications.
For Continuous Duty/Street Applications See P/N 17191

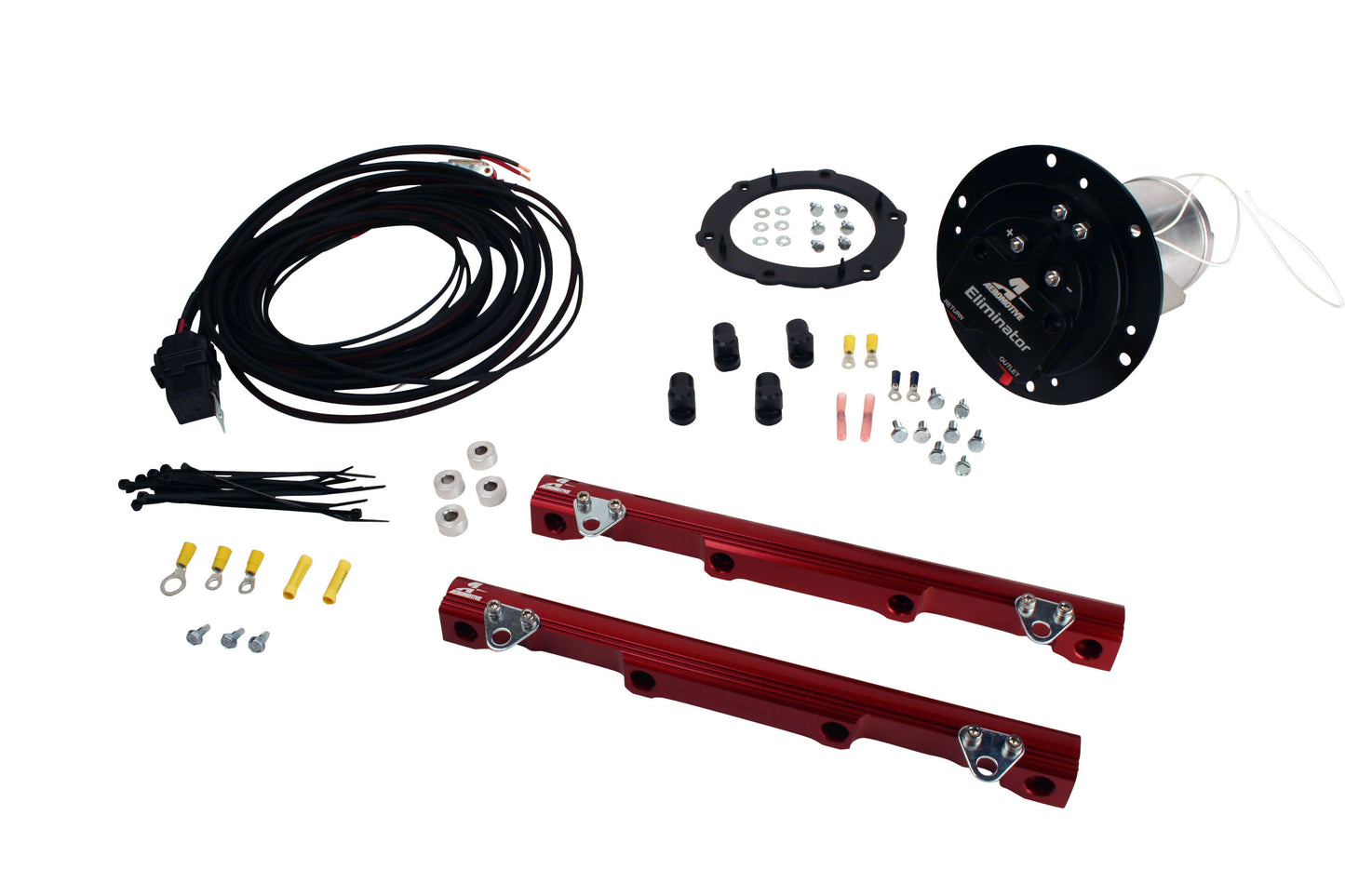

This Mustang Stealth Fuel System includes the Aeromotive Stealth Eliminator fuel pump, designed to fit inside the stock, OEM 03-04 Cobra Mustang tank and integrate with the stock fuel-level sending unit. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving. Fuel Lines and Hose-Ends sold separately.
This system contains the following parts (click on any item for more details):
1ea p/n 14111 Fuel Rails
1ea p/n 13134 Fuel Pressure Regulator
1ea p/n 18680 Fuel Pump Assembly
1ea p/n 16307 Fuel Pump Wiring Kit
1ea p/n 12305 Filter Bracket
1ea p/n 12335 Filter Assembly, 40-micron
1ea p/n 15107 One-Way Check Valve
6ea p/n 15607 ORB-08 to AN-08 Fittings
5ea p/n 15610 ORB-10 to AN-08 Fittings
1ea p/n 15674 Y-Block, AN-08
1ea p/n OR002-2910 AN-10 O-Ring
|Dimensions||19 × 13 × 13 in|
Mounting Configuration: External
|CARB or EFI||Power Adder||FUEL||Horsepower|
