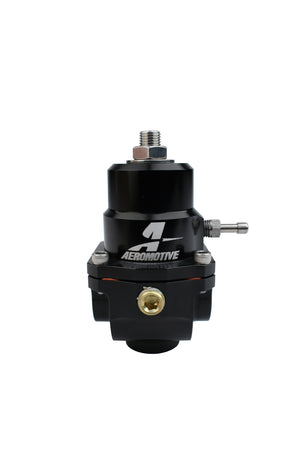

X1 Series Carbureted Return Style Fuel Pressure Regulator
X1 Series Carbureted Return Style Fuel Pressure Regulator
Product Info
Product Info
P/N 13304 X1 Carbureted Return Style Regulator
Carbureted return style Regulator for Return Style Systems
- Base fuel pressure adjustable from 3-20 PSI.
- Vacuum/Boost reference capability.
- 1:1 rising rate for blow-through carburetors.
- Gasoline, ethanol, alcohol and diesel compatible.
- 2 - ORB -08 inlet/outlet ports on the sides.
- 1 - ORB-08 return port on the bottom port.
- 1 - 1/8" NPT Gauge Port with plug.
- 1/16" NPT Boost Port with 5/32" hose barb.
- Compatible with both X1 EFI Conversion kits.
- 0.313" return style with matching spring and poppet.
- Handles up to 150 GPH with AN-08 return line.
- Suitable for any Aeromotive pump up to A1000.
- Mounting bracket included (not shown).
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
X1 Regulator Service/Conversion Kits:
Include Seat, diaphragm/poppet assembly and spring
P/N 13014 150 GPH 0.313" Carb Service Kit
P/N 13013 150 GPH 0.188" EFI Conversion Kit
P/N 13015 250 GPH 0.313" EFI Conversion Kit
Additional information
Additional information
Using the X1 regulator today for a carburetor or EFI, you can easily switch platforms back and forth at will, without having to purchase another regulator. Simply get the correct conversion kit for your pump and pressure range (sold separately) and you can swap out the internal parts while leaving the regulator mounted and plumbed as is.
Replace original X1 Series regulator internals with the conversion kit of your choice (Part #'s 13013, 13014, and 13015) and you have a regulator with vastly different characteristics. While versatility is one of the X1's greatest assets, it is far from the only new design feature. Utilizing larger (3) -8AN ORB inlet/outlet/return ports to accommodate increased flow, at the same time Aeromotive reduced overall size and the weight by 33% (compared to Aeromotive 13109 regulator).
The new X1 design eliminates the compromise common to other convertible regulator designs, with the optimization of all internal components including the diaphragm/poppet, spring and return style seat, the X1 delivers all of the performance and features you expect from an application specific return style regulator, regardless of what you decide to do with your induction system tomorow. Above and beyond the expected performance, you still have the amenities like a 1/8" NPT gauge port and 1:1 ratio boost reference port for forced induction applications. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
The X1 Series provides flexible performance that grows as your fuel system grows. For more information on the X1 Series Regulators, Click Here
Specifications
Specifications
| Pressure Range | 3-20 PSI |
|---|---|
| Adjustable | Yes |
| Minimum Pressure | 3 PSI |
| Maximum Pressure | 20 PSI |
| Mounting Bracket Included | Yes |
| Port Quantity | 2 |
| Inlet Port Diameter | ORB-08 |
| Inlet Gender | Female |
| Gauge Included | No |
| Color | Black |
| Grade Type | Performance |
Regulator Service Kits
Regulator Service Kits
Regulator Service Kit for Part #13304 and #13305
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Limited Warranty for Pertronix and Aeromotive Products for the United States of America
PerTronix, LLC (for the Pertronix, Taylor, Doug’s, JBA, Patriot, Compu-Fire, and Spyke branded products) and Aeromotive, LLC (for the Aeromotive branded products) respectively warrant to the original end user purchaser in the United States that the Pertronix, Taylor, Doug’s, JBA, Patriot, Compu-Fire, and Spyke branded products (“Product(s)”) shall be free from defects in material and workmanship for the warranty durations set forth in the chart below from the date of purchase or delivery, whichever is later.
| Products | Warranty Duration |
|
2 years |
|
1 year |
Because PerTronix, LLC and Aeromotive, LLC (collectively, the “Company”) cannot control the quality of products sold by unauthorized sellers, this warranty applies only to Products that were purchased from the Company or the Company’s authorized sellers in the United States, unless otherwise prohibited by law. Company reserves the right to reject warranty claims for Products purchased from unauthorized sellers, including unauthorized Internet sites.
This warranty does not cover any defects due to normal wear and tear, damage due to misuse, alteration to the product, negligence, damage caused by aftermarket applied coatings, discoloration, or corrosion of finished surfaces. This warranty also does not cover damage resulting from collision, improper installation, off-road use, road hazards, the use of exhaust insulating wrap or like products, or rust occurring after installation.
Purchasers of a Product who wish to make a warranty claim based upon an alleged Product defect should email the Company at techs@aeromotiveinc.com (for Aeromotive products) or techs@pertronix.com (for PerTronix products) the following information: (1) Product subject to the claim, (2) brief description of the alleged defect, (3) date and place of purchase/delivery, (4) proof of purchase (showing when and where the Product was purchased), and (5) pictures or videos of the Product. If you purchased on an online marketplace, please be sure the proof of purchase shows from whom you purchased (this information is available in your order history). In some instances, Company may instruct you to mail the Product to Company for inspection and/or repair; if such instruction is provided, Company will provide you with a prepaid shipping label. You can also contact the Company Monday – Friday, 8AM – 6:30PM CT at (913) 808-2376.
Company will replace or repair a defective Product that is covered by this warranty. This
warranty does not cover the cost of removal or installation. Company will pay for the return shipping of the Product to the purchaser.
There are no warranties which extend beyond those stated herein. ANY IMPLIED
WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some States do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
UNDER NO CIRCUMSTANCES SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF THIS LIMITED
WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.
If you have any questions about whether a seller is authorized, please contact us at (913) 808-2376.
This warranty supersedes any warranties stated in product manuals or other written materials.
Effective Date: March 16, 2026
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Limits of Responsibility:
- See Product Warranty page for more info.
Reviews
Reviews
X1 Series Carbureted Return Style Fuel Pressure Regulator
X1 Series Carbureted Return Style Fuel Pressure Regulator
Emissions Code
Continue Reading to Understand Emissions Codes
View full details
Product Info
Product Info
P/N 13304 X1 Carbureted Return Style Regulator
Carbureted return style Regulator for Return Style Systems
- Base fuel pressure adjustable from 3-20 PSI.
- Vacuum/Boost reference capability.
- 1:1 rising rate for blow-through carburetors.
- Gasoline, ethanol, alcohol and diesel compatible.
- 2 - ORB -08 inlet/outlet ports on the sides.
- 1 - ORB-08 return port on the bottom port.
- 1 - 1/8" NPT Gauge Port with plug.
- 1/16" NPT Boost Port with 5/32" hose barb.
- Compatible with both X1 EFI Conversion kits.
- 0.313" return style with matching spring and poppet.
- Handles up to 150 GPH with AN-08 return line.
- Suitable for any Aeromotive pump up to A1000.
- Mounting bracket included (not shown).
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
X1 Regulator Service/Conversion Kits:
Include Seat, diaphragm/poppet assembly and spring
P/N 13014 150 GPH 0.313" Carb Service Kit
P/N 13013 150 GPH 0.188" EFI Conversion Kit
P/N 13015 250 GPH 0.313" EFI Conversion Kit
Additional information
Additional information
Using the X1 regulator today for a carburetor or EFI, you can easily switch platforms back and forth at will, without having to purchase another regulator. Simply get the correct conversion kit for your pump and pressure range (sold separately) and you can swap out the internal parts while leaving the regulator mounted and plumbed as is.
Replace original X1 Series regulator internals with the conversion kit of your choice (Part #'s 13013, 13014, and 13015) and you have a regulator with vastly different characteristics. While versatility is one of the X1's greatest assets, it is far from the only new design feature. Utilizing larger (3) -8AN ORB inlet/outlet/return ports to accommodate increased flow, at the same time Aeromotive reduced overall size and the weight by 33% (compared to Aeromotive 13109 regulator).
The new X1 design eliminates the compromise common to other convertible regulator designs, with the optimization of all internal components including the diaphragm/poppet, spring and return style seat, the X1 delivers all of the performance and features you expect from an application specific return style regulator, regardless of what you decide to do with your induction system tomorow. Above and beyond the expected performance, you still have the amenities like a 1/8" NPT gauge port and 1:1 ratio boost reference port for forced induction applications. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
The X1 Series provides flexible performance that grows as your fuel system grows. For more information on the X1 Series Regulators, Click Here
Specifications
Specifications
| Pressure Range | 3-20 PSI |
|---|---|
| Adjustable | Yes |
| Minimum Pressure | 3 PSI |
| Maximum Pressure | 20 PSI |
| Mounting Bracket Included | Yes |
| Port Quantity | 2 |
| Inlet Port Diameter | ORB-08 |
| Inlet Gender | Female |
| Gauge Included | No |
| Color | Black |
| Grade Type | Performance |
Regulator Service Kits
Regulator Service Kits
Regulator Service Kit for Part #13304 and #13305
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Limited Warranty for Pertronix and Aeromotive Products for the United States of America
PerTronix, LLC (for the Pertronix, Taylor, Doug’s, JBA, Patriot, Compu-Fire, and Spyke branded products) and Aeromotive, LLC (for the Aeromotive branded products) respectively warrant to the original end user purchaser in the United States that the Pertronix, Taylor, Doug’s, JBA, Patriot, Compu-Fire, and Spyke branded products (“Product(s)”) shall be free from defects in material and workmanship for the warranty durations set forth in the chart below from the date of purchase or delivery, whichever is later.
| Products | Warranty Duration |
|
2 years |
|
1 year |
Because PerTronix, LLC and Aeromotive, LLC (collectively, the “Company”) cannot control the quality of products sold by unauthorized sellers, this warranty applies only to Products that were purchased from the Company or the Company’s authorized sellers in the United States, unless otherwise prohibited by law. Company reserves the right to reject warranty claims for Products purchased from unauthorized sellers, including unauthorized Internet sites.
This warranty does not cover any defects due to normal wear and tear, damage due to misuse, alteration to the product, negligence, damage caused by aftermarket applied coatings, discoloration, or corrosion of finished surfaces. This warranty also does not cover damage resulting from collision, improper installation, off-road use, road hazards, the use of exhaust insulating wrap or like products, or rust occurring after installation.
Purchasers of a Product who wish to make a warranty claim based upon an alleged Product defect should email the Company at techs@aeromotiveinc.com (for Aeromotive products) or techs@pertronix.com (for PerTronix products) the following information: (1) Product subject to the claim, (2) brief description of the alleged defect, (3) date and place of purchase/delivery, (4) proof of purchase (showing when and where the Product was purchased), and (5) pictures or videos of the Product. If you purchased on an online marketplace, please be sure the proof of purchase shows from whom you purchased (this information is available in your order history). In some instances, Company may instruct you to mail the Product to Company for inspection and/or repair; if such instruction is provided, Company will provide you with a prepaid shipping label. You can also contact the Company Monday – Friday, 8AM – 6:30PM CT at (913) 808-2376.
Company will replace or repair a defective Product that is covered by this warranty. This
warranty does not cover the cost of removal or installation. Company will pay for the return shipping of the Product to the purchaser.
There are no warranties which extend beyond those stated herein. ANY IMPLIED
WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some States do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
UNDER NO CIRCUMSTANCES SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF THIS LIMITED
WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.
If you have any questions about whether a seller is authorized, please contact us at (913) 808-2376.
This warranty supersedes any warranties stated in product manuals or other written materials.
Effective Date: March 16, 2026
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Limits of Responsibility:
- See Product Warranty page for more info.
Reviews
Reviews
EMISSIONS PLACARD
Aeromotive use a voluntary product identification program whereby all emission sensitive products can be identified by placing numbered labels in product packaging and listing corresponding numeric codes next to each part number. The corresponding numbers and explanations are as follows:
AEROMOTIVE EMISSIONS CODES
This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
AEROMOTIVE EMISSIONS CODES
This product is Legal for use on Pre-PoIIution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows
- 1965 and Older US Manufactured California Certified Vehicles
- 1967 and Older US Manufactured Federally Certified Vehicles
- 1967 and Older Foreign Manufactured Vehicles
AEROMOTIVE EMISSIONS CODES
This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.
AEROMOTIVE EMISSIONS CODES
This Product is considered а Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufactured's Application Guide and lnstallation Instructions.
AEROMOTIVE EMISSIONS CODES
This Product is legal for Street or Off Highway use in 49 States. This product meets the EPA Anti Tampering Policy for Reasonable Basis that allows the stated vehicle to operate within the legal emissions standards in states that do not require а California EO. This product in Not Legal for Street or Off Highway use in California.
AEROMOTIVE EMISSIONS CODES
This Product is Certified by the Manufacturer as being а Non-Emissions Related part per CARB and EPA regulations and therefore does not require emissions certification or CARB EO and is legal in all 50 states.
