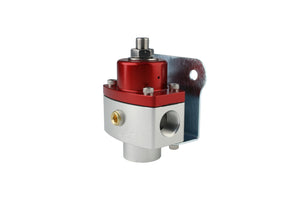

SS-Series Carbureted Dead-Head Fuel Pressure Regulator with 3/8" NPT Ports

SS-Series Carbureted Dead-Head Fuel Pressure Regulator with 3/8" NPT Ports

Part Number: 13205
Skip to product information

Product Info

P/N 13205 SS-Series 3/8" NPT Carb Regulator
Dead-Head Regulator for up to 750 FWHP on gas.

Specifically designed for carbureted street or racing engines on gasoline, the SS-Series adjustable regulator offers higher flow, quicker response and less pressure creep than competing two-port designs. Popular in circle track applications up to and including NASCAR® level horsepower and as a dedicated nitrous regulator.

  • Adjustable from 5-10 PSI.

  • P/N 13205 provides 3/8" NPT inlet/outlet ports.

  • Dedicated 1/8" NPT gauge port.

  • Regulator re-seats when the needle and seat closes, preventing pressure creep.

  • Mounting bracket included.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Not rated for alcohol fuels, ethanol or methanol.

  • Fitting only kits available:
    • P/N 15204 : 3x 3/8" NPT to AN-06 port fittings.
    • P/N 15205 : 3x 3/8" NPT to AN-08 port fittings.



Specifications

Pressure Range 5-10 PSI
Adjustable Yes
Minimum Pressure 5 PSI
Maximum Pressure 10 PSI
Mounting Bracket Included Yes
Port Quantity 3
Inlet Port Diameter 3/8
Inlet Gender Female
Gauge Included No
Color Red/Silver
Grade Type Performance
