Fuel Cell with Integrated Brushless 5.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter (90 Degree Outlet)

Fuel Cell with Integrated Brushless 5.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter (90 Degree Outlet)

Part Number: 19304
Skip to product information

Product Info

P/N 19304 (6 Gallon), 19310 (15 Gallon), and 19316 (20 Gallon): Fuel Cell with Brushless Spur 5.0 GPM In-Tank Fuel Pump Module, True Variable Speed, Pre-Pump Fuel Filter (90 Degree Outlet)
Ground Shaking Performance – Advanced Technology


  • Supports

    • Fuel-injected engines: GAS
      up to 3400 FWHP – naturally-aspirated
      up to 2600 FWHP – forced air induction

    • Carbureted engines: GAS
      Up to 3600 FWHP – naturally-aspirated
      Up to 2700 FWHP – forced air induction

    • Fuel-injected engines: E85
      up to 2380 FWHP – naturally-aspirated
      up to 1820 FWHP – forced air induction

    • Carbureted engines: E85
      Up to 2520 FWHP – naturally-aspirated
      Up to 1890 FWHP – forced air induction

    • Fuel-injected engines: METHANOL
      up to 1,190 FWHP – naturally-aspirated
      up to 910 FWHP – forced air induction

    • Carbureted engines: METHANOL
      Up to 1,260 FWHP – naturally-aspirated
      Up to 945 FWHP – forced air induction

  • Dimensions:

    • 6 Gallon: 12" L x 12" W x 10" H
    • 15 Gallon: 18" L x 20" W x 10" H
    • 20 Gallon: 24" L x 20" W x 10" H

  • Lighter than the traditional Pro-Series pumps.

  • Reduced current draw at higher, EFI pressures.

  • Extended service life in methanol and ethanol.

  • New integral spur-gear pumping mechanism.

  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.

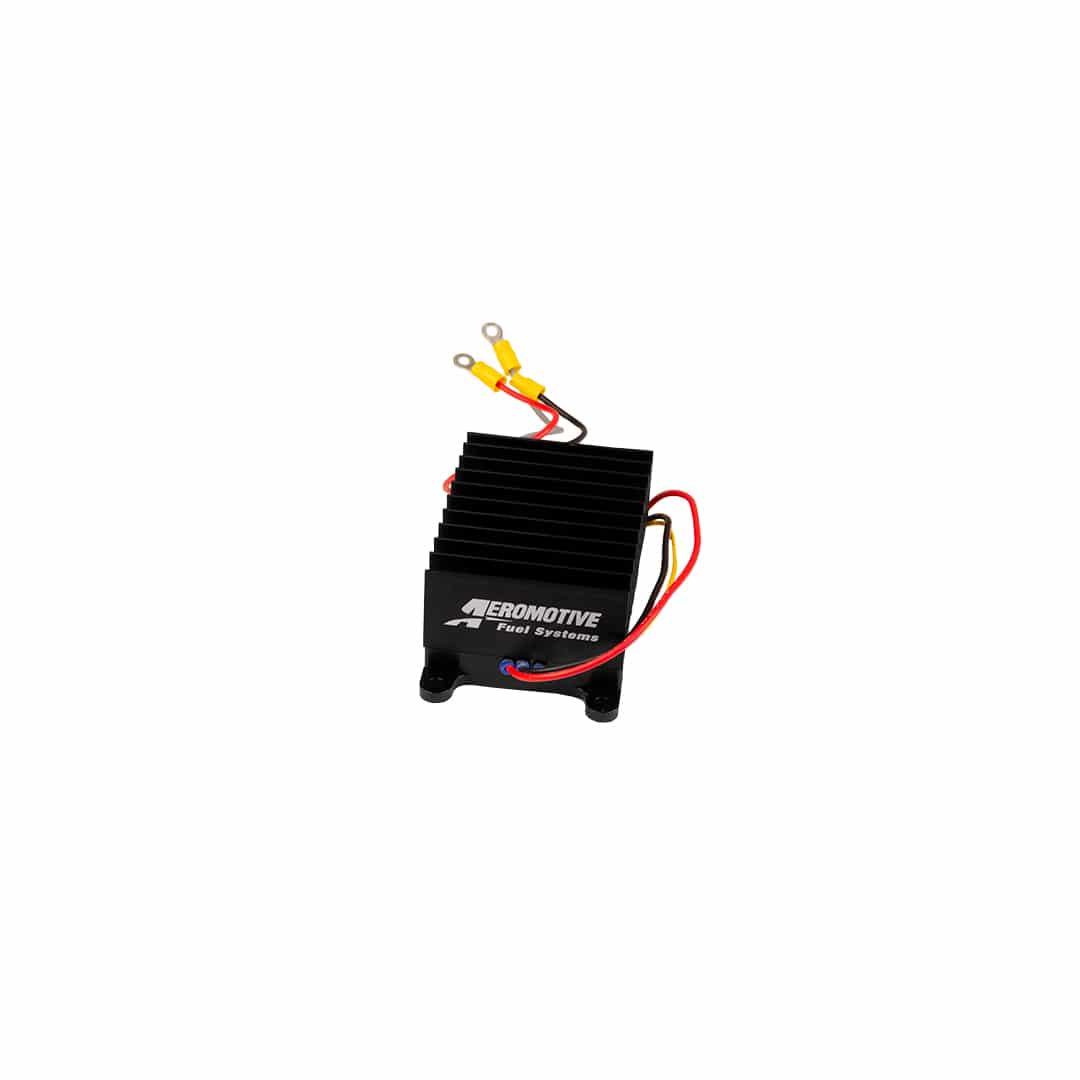

  • Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.

  • ORB-10 outlet port.

  • Requires straight 12-VDC to the 16-VDC power supply.
    • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
  • Not compatible with pulse-modulated systems or fuel pump speed controllers.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.



EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Specifications

#19310 - 15 Gallon #19316 - 20 Gallon #19304 - 6 Gallon
Series Stealth Fuel Cell Stealth Fuel Cell Stealth Fuel Cell
Capacity 15 Gallons 20 Gallons 6 Gallons
Baffled Yes Yes Yes
Material Aluminum Aluminum Aluminum
Universal Or Specific Fit Universal Universal Universal
Color Natural Natural Natural
Filler Neck Attached Yes Yes Yes
Width 20 Inches 20 Inches 12 Inches
Fuel Type Gas Gas Gas
Grade Type Performance Performance Performance
Height 10 Inches 10 Inches 10 Inches
Length 18 Inches 24 Inches 12 Inches
Mounting Hardware Included No No No
Mounting Straps Included No No No
Sender Ohm Range 0-90 0-90
Sending Unit Included Yes Yes No
Fuel Pump Included Yes Yes Yes
Maximum Flow Rating 5.0 GPM 5.0 GPM 5.0 GPM
Maximum Pressure 150 PSI 150 PSI 150 PSI
Pump Design Spur Gear Spur Gear Spur Gear
Motor Style Brushless Brushless Brushless
Integrated Controller Yes Yes Yes
Pulse Width Modulation Compatible No No No
Outlet Type Female Female Female
Outlet Outside Diameter ORB-12 ORB-12 ORB-12
Return Fitting Size ORB-10 ORB-10 ORB-10
Maximum Current Draw 12 @ 40 psi 12 @ 40 psi 12 @ 40 psi
Voltage 12-16V 12-16V 12-16V
Negative Ground Yes Yes Yes
Wire Quantity 3 3 3
Wiring Harness Included No No No
Terminal Gender Male Male Male
Terminal Quantity 3 3 3
Terminal Type Threaded Stud Threaded Stud Threaded Stud

Installation Instructions

Instruction Manual
19304 Installation Instructions

Download PDF
Instruction Manual
19310 Installation Instructions

Download PDF
Instruction Manual
19316 Installation Instructions

Download PDF

Product warranty

Limited Warranty for Aeromotive Products for the United States of America

Aeromotive, LLC warrant to the original end user purchaser in the United States that the Aeromotive and Waterman Racing Components branded products (“Product(s)”) shall be free from defects in material and workmanship for the warranty durations set forth in the chart below from the date of purchase or delivery, whichever is later.

 Products Warranty Duration
  • Aeromotive marine pumps
2 years
  • All other Aeromotive products
  • Waterman Racing Components products
1 year



Because Aeromotive, LLC (collectively, the “Company”) cannot control the quality of products sold by unauthorized sellers, this warranty applies only to Products that were purchased from the Company or the Company’s authorized sellers in the United States, unless otherwise prohibited by law. Company reserves the right to reject warranty claims for Products purchased from unauthorized sellers, including unauthorized Internet sites.

This warranty does not cover any defects due to normal wear and tear, damage due to misuse, alteration to the product, negligence, damage caused by aftermarket applied coatings, discoloration, or corrosion of finished surfaces. This warranty also does not cover damage resulting from collision, improper installation, off-road use, road hazards, the use of exhaust insulating wrap or like products, or rust occurring after installation.

Purchasers of a Product who wish to make a warranty claim based upon an alleged Product defect should email the Company at techs@aeromotiveinc.com the following information: (1) Product subject to the claim, (2) brief description of the alleged defect, (3) date and place of purchase/delivery, (4) proof of purchase (showing when and where the Product was purchased), and (5) pictures or videos of the Product. If you purchased on an online marketplace, please be sure the proof of purchase shows from whom you purchased (this information is available in your order history). In some instances, Company may instruct you to mail the Product to Company for inspection and/or repair; if such instruction is provided, Company will provide you with a prepaid shipping label. You can also contact the Company Monday – Friday, 8AM – 6:30PM CT at (913) 808-2376.

Company will replace or repair a defective Product that is covered by this warranty. This
warranty does not cover the cost of removal or installation. Company will pay for the return shipping of the Product to the purchaser.

There are no warranties which extend beyond those stated herein. ANY IMPLIED
WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some States do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

UNDER NO CIRCUMSTANCES SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF THIS LIMITED
WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

If you have any questions about whether a seller is authorized, please contact us at (913) 808-2376.

This warranty supersedes any warranties stated in product manuals or other written materials.

Effective Date: March 16, 2026

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Limits of Responsibility:

  • See Product Warranty page for more info.

Overstock Sale items:

Aeromotive is currently offering select overstock items at a discount. These items are final sale — no returns or exchanges will be accepted. The full manufacturer warranty still applies.

Orders placed after 12:01 AM CST on May 18, 2026 for any of the SKUs listed below are not eligible for return or exchange.

Eligible products are clearly labeled "Overstock Sale" on their product pages so customers can identify them before purchase.

The following SKUs are included in this supplemental return policy: 14202, 14163, 19105, 18728, 18727, 15600, 11821, 18081, 14169, 18721, 18720, 14180, 11190, 18052, 12390, 19000, 14114, 14188, 11743, 11744, 18036, 18038, 18410, 18810

Reviews

Fuel Cell with Integrated Brushless 5.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter (90 Degree Outlet)

Fuel Cell with Integrated Brushless 5.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter (90 Degree Outlet)

Part Number: 19304
Choose your Size:
Regular price $2,951.08
Sale price $2,951.08 Regular price $3,278.98

Part Number: 19304
Does This part fit My vehicle?
Product details
Payment methods
  • Visa
  • Mastercard
  • PayPal
  • American Express
  • Discover
  • Affirm
This product has free shipping!
Emissions code

Emissions Code

Continue Reading to Understand Emissions Codes

View full details

Product Info

P/N 19304 (6 Gallon), 19310 (15 Gallon), and 19316 (20 Gallon): Fuel Cell with Brushless Spur 5.0 GPM In-Tank Fuel Pump Module, True Variable Speed, Pre-Pump Fuel Filter (90 Degree Outlet)
Ground Shaking Performance – Advanced Technology


  • Supports

    • Fuel-injected engines: GAS
      up to 3400 FWHP – naturally-aspirated
      up to 2600 FWHP – forced air induction

    • Carbureted engines: GAS
      Up to 3600 FWHP – naturally-aspirated
      Up to 2700 FWHP – forced air induction

    • Fuel-injected engines: E85
      up to 2380 FWHP – naturally-aspirated
      up to 1820 FWHP – forced air induction

    • Carbureted engines: E85
      Up to 2520 FWHP – naturally-aspirated
      Up to 1890 FWHP – forced air induction

    • Fuel-injected engines: METHANOL
      up to 1,190 FWHP – naturally-aspirated
      up to 910 FWHP – forced air induction

    • Carbureted engines: METHANOL
      Up to 1,260 FWHP – naturally-aspirated
      Up to 945 FWHP – forced air induction

  • Dimensions:

    • 6 Gallon: 12" L x 12" W x 10" H
    • 15 Gallon: 18" L x 20" W x 10" H
    • 20 Gallon: 24" L x 20" W x 10" H

  • Lighter than the traditional Pro-Series pumps.

  • Reduced current draw at higher, EFI pressures.

  • Extended service life in methanol and ethanol.

  • New integral spur-gear pumping mechanism.

  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.

  • Integral, external brushless controller for a clean installation, cooler fuel, and enhanced reliability.

  • ORB-10 outlet port.

  • Requires straight 12-VDC to the 16-VDC power supply.
    • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
  • Not compatible with pulse-modulated systems or fuel pump speed controllers.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.



EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Specifications

#19310 - 15 Gallon #19316 - 20 Gallon #19304 - 6 Gallon
Series Stealth Fuel Cell Stealth Fuel Cell Stealth Fuel Cell
Capacity 15 Gallons 20 Gallons 6 Gallons
Baffled Yes Yes Yes
Material Aluminum Aluminum Aluminum
Universal Or Specific Fit Universal Universal Universal
Color Natural Natural Natural
Filler Neck Attached Yes Yes Yes
Width 20 Inches 20 Inches 12 Inches
Fuel Type Gas Gas Gas
Grade Type Performance Performance Performance
Height 10 Inches 10 Inches 10 Inches
Length 18 Inches 24 Inches 12 Inches
Mounting Hardware Included No No No
Mounting Straps Included No No No
Sender Ohm Range 0-90 0-90
Sending Unit Included Yes Yes No
Fuel Pump Included Yes Yes Yes
Maximum Flow Rating 5.0 GPM 5.0 GPM 5.0 GPM
Maximum Pressure 150 PSI 150 PSI 150 PSI
Pump Design Spur Gear Spur Gear Spur Gear
Motor Style Brushless Brushless Brushless
Integrated Controller Yes Yes Yes
Pulse Width Modulation Compatible No No No
Outlet Type Female Female Female
Outlet Outside Diameter ORB-12 ORB-12 ORB-12
Return Fitting Size ORB-10 ORB-10 ORB-10
Maximum Current Draw 12 @ 40 psi 12 @ 40 psi 12 @ 40 psi
Voltage 12-16V 12-16V 12-16V
Negative Ground Yes Yes Yes
Wire Quantity 3 3 3
Wiring Harness Included No No No
Terminal Gender Male Male Male
Terminal Quantity 3 3 3
Terminal Type Threaded Stud Threaded Stud Threaded Stud

Installation Instructions

Instruction Manual
19304 Installation Instructions

Download PDF
Instruction Manual
19310 Installation Instructions

Download PDF
Instruction Manual
19316 Installation Instructions

Download PDF

Product warranty

Limited Warranty for Aeromotive Products for the United States of America

Aeromotive, LLC warrant to the original end user purchaser in the United States that the Aeromotive and Waterman Racing Components branded products (“Product(s)”) shall be free from defects in material and workmanship for the warranty durations set forth in the chart below from the date of purchase or delivery, whichever is later.

 Products Warranty Duration
  • Aeromotive marine pumps
2 years
  • All other Aeromotive products
  • Waterman Racing Components products
1 year



Because Aeromotive, LLC (collectively, the “Company”) cannot control the quality of products sold by unauthorized sellers, this warranty applies only to Products that were purchased from the Company or the Company’s authorized sellers in the United States, unless otherwise prohibited by law. Company reserves the right to reject warranty claims for Products purchased from unauthorized sellers, including unauthorized Internet sites.

This warranty does not cover any defects due to normal wear and tear, damage due to misuse, alteration to the product, negligence, damage caused by aftermarket applied coatings, discoloration, or corrosion of finished surfaces. This warranty also does not cover damage resulting from collision, improper installation, off-road use, road hazards, the use of exhaust insulating wrap or like products, or rust occurring after installation.

Purchasers of a Product who wish to make a warranty claim based upon an alleged Product defect should email the Company at techs@aeromotiveinc.com the following information: (1) Product subject to the claim, (2) brief description of the alleged defect, (3) date and place of purchase/delivery, (4) proof of purchase (showing when and where the Product was purchased), and (5) pictures or videos of the Product. If you purchased on an online marketplace, please be sure the proof of purchase shows from whom you purchased (this information is available in your order history). In some instances, Company may instruct you to mail the Product to Company for inspection and/or repair; if such instruction is provided, Company will provide you with a prepaid shipping label. You can also contact the Company Monday – Friday, 8AM – 6:30PM CT at (913) 808-2376.

Company will replace or repair a defective Product that is covered by this warranty. This
warranty does not cover the cost of removal or installation. Company will pay for the return shipping of the Product to the purchaser.

There are no warranties which extend beyond those stated herein. ANY IMPLIED
WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some States do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

UNDER NO CIRCUMSTANCES SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF THIS LIMITED
WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

If you have any questions about whether a seller is authorized, please contact us at (913) 808-2376.

This warranty supersedes any warranties stated in product manuals or other written materials.

Effective Date: March 16, 2026

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Limits of Responsibility:

  • See Product Warranty page for more info.

Overstock Sale items:

Aeromotive is currently offering select overstock items at a discount. These items are final sale — no returns or exchanges will be accepted. The full manufacturer warranty still applies.

Orders placed after 12:01 AM CST on May 18, 2026 for any of the SKUs listed below are not eligible for return or exchange.

Eligible products are clearly labeled "Overstock Sale" on their product pages so customers can identify them before purchase.

The following SKUs are included in this supplemental return policy: 14202, 14163, 19105, 18728, 18727, 15600, 11821, 18081, 14169, 18721, 18720, 14180, 11190, 18052, 12390, 19000, 14114, 14188, 11743, 11744, 18036, 18038, 18410, 18810

Reviews

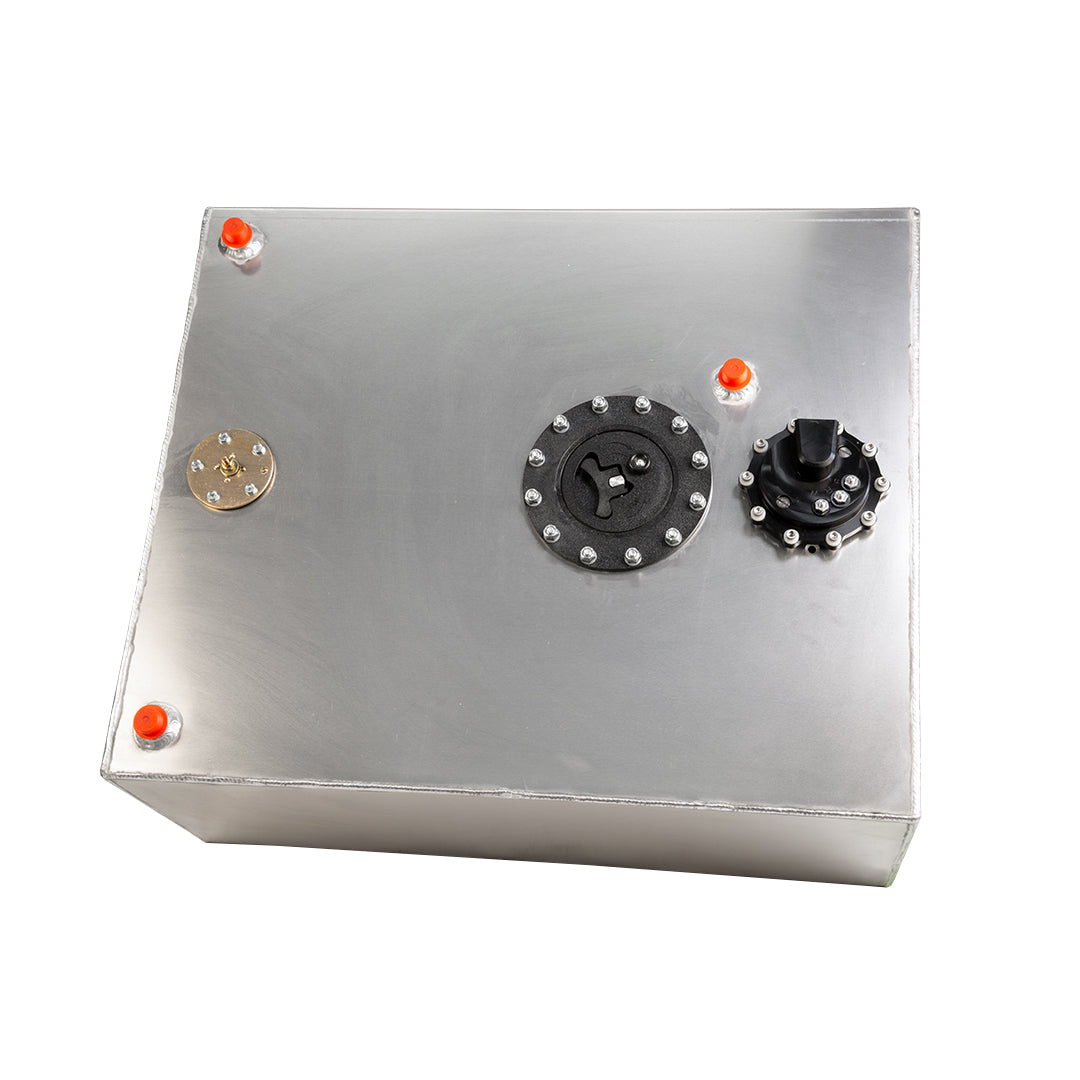

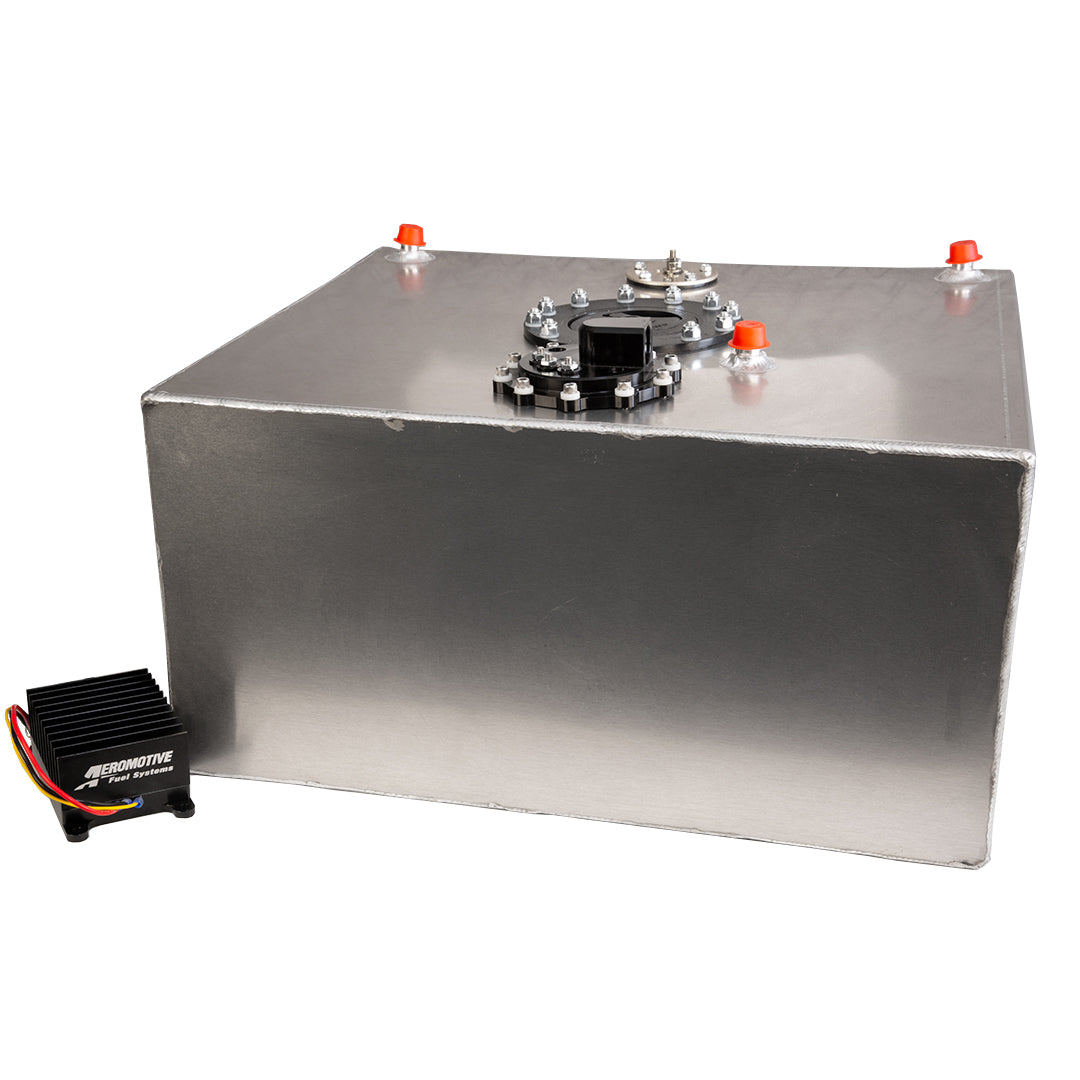

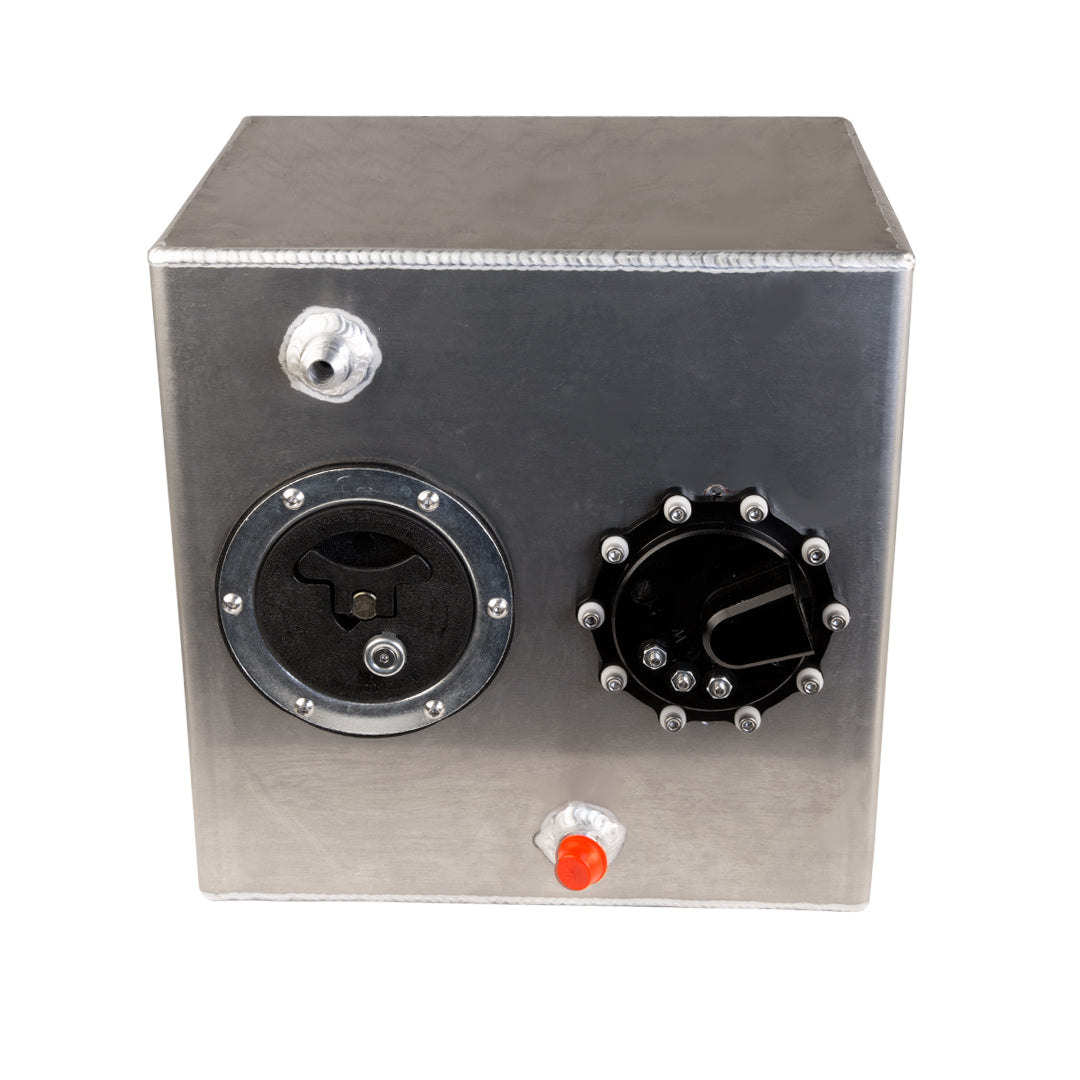

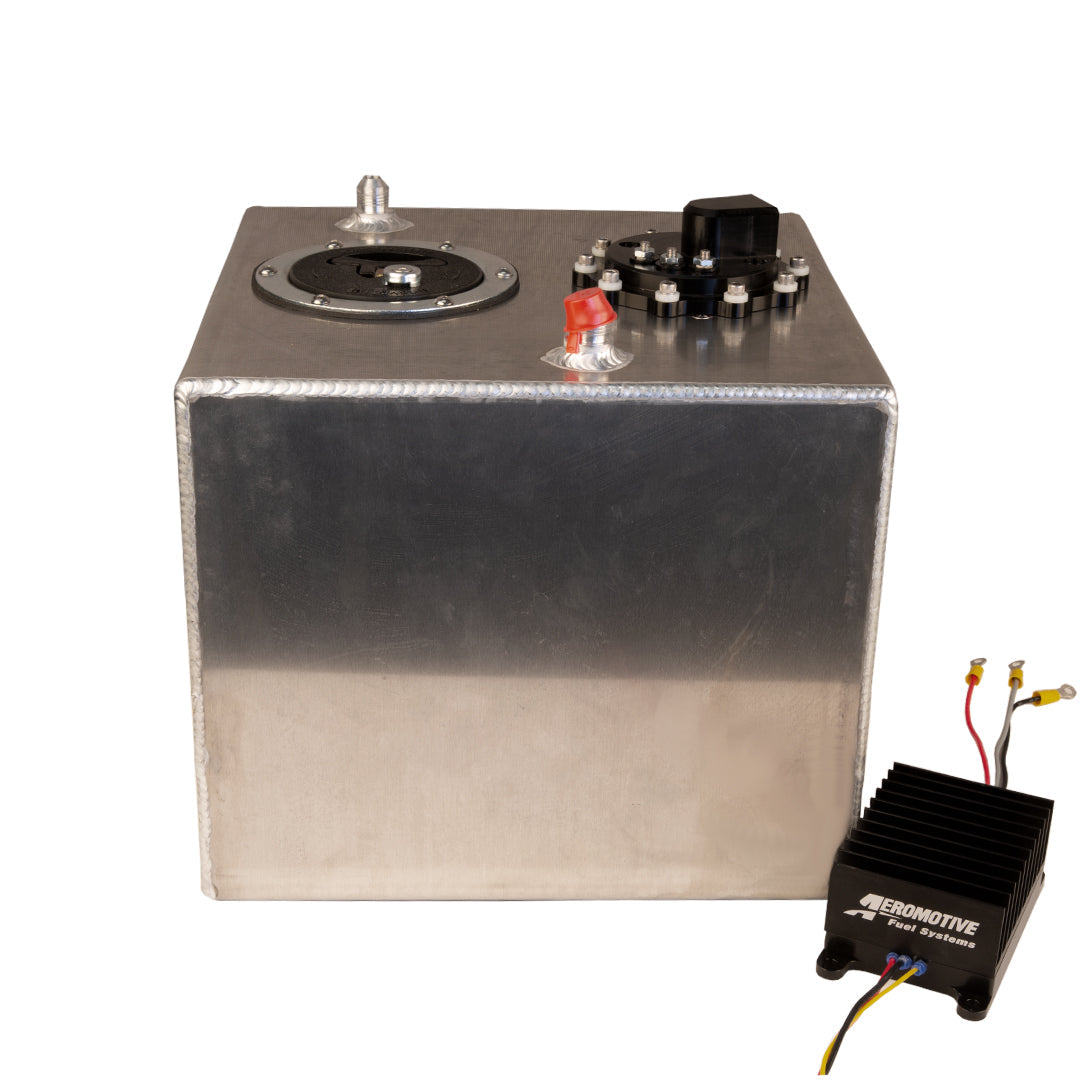

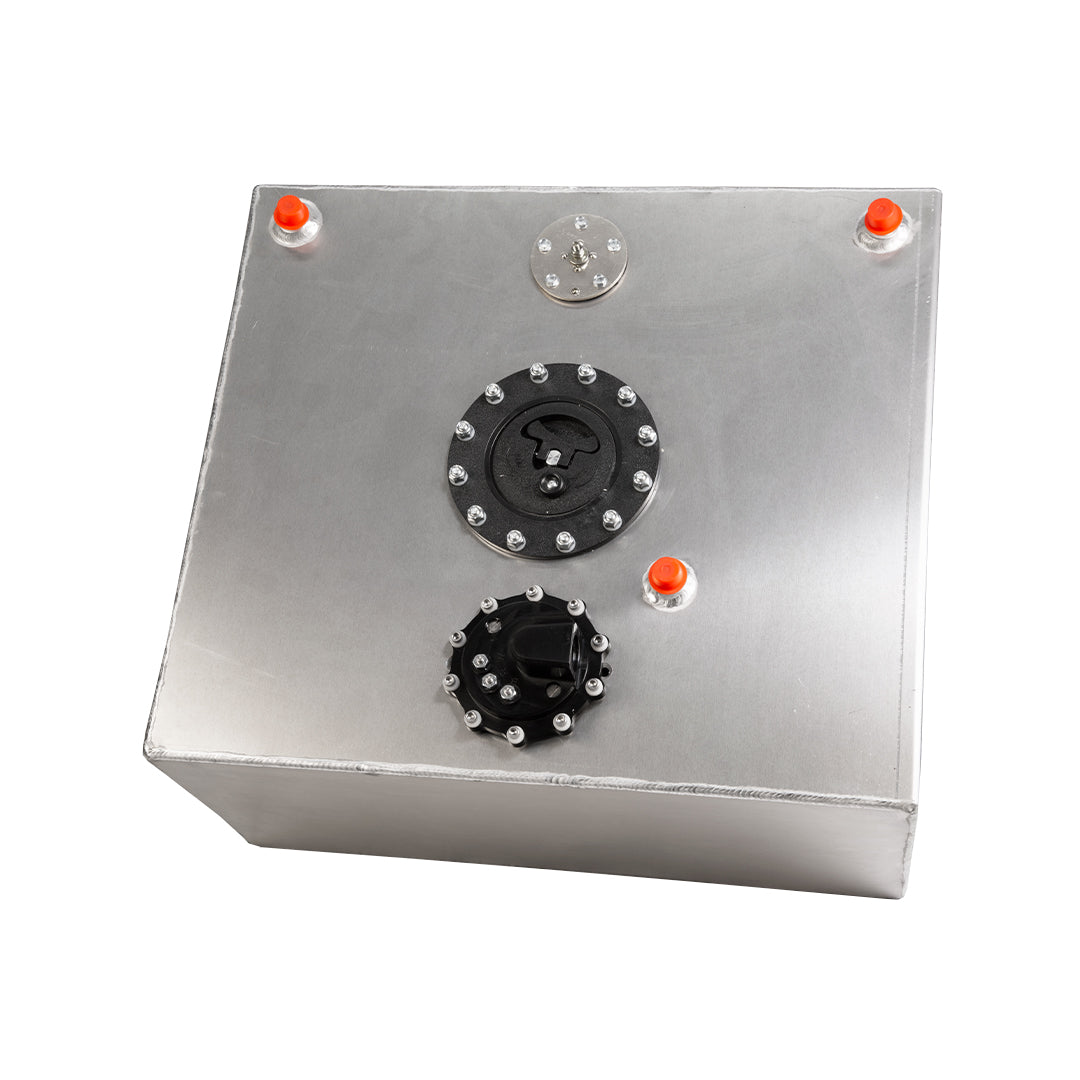

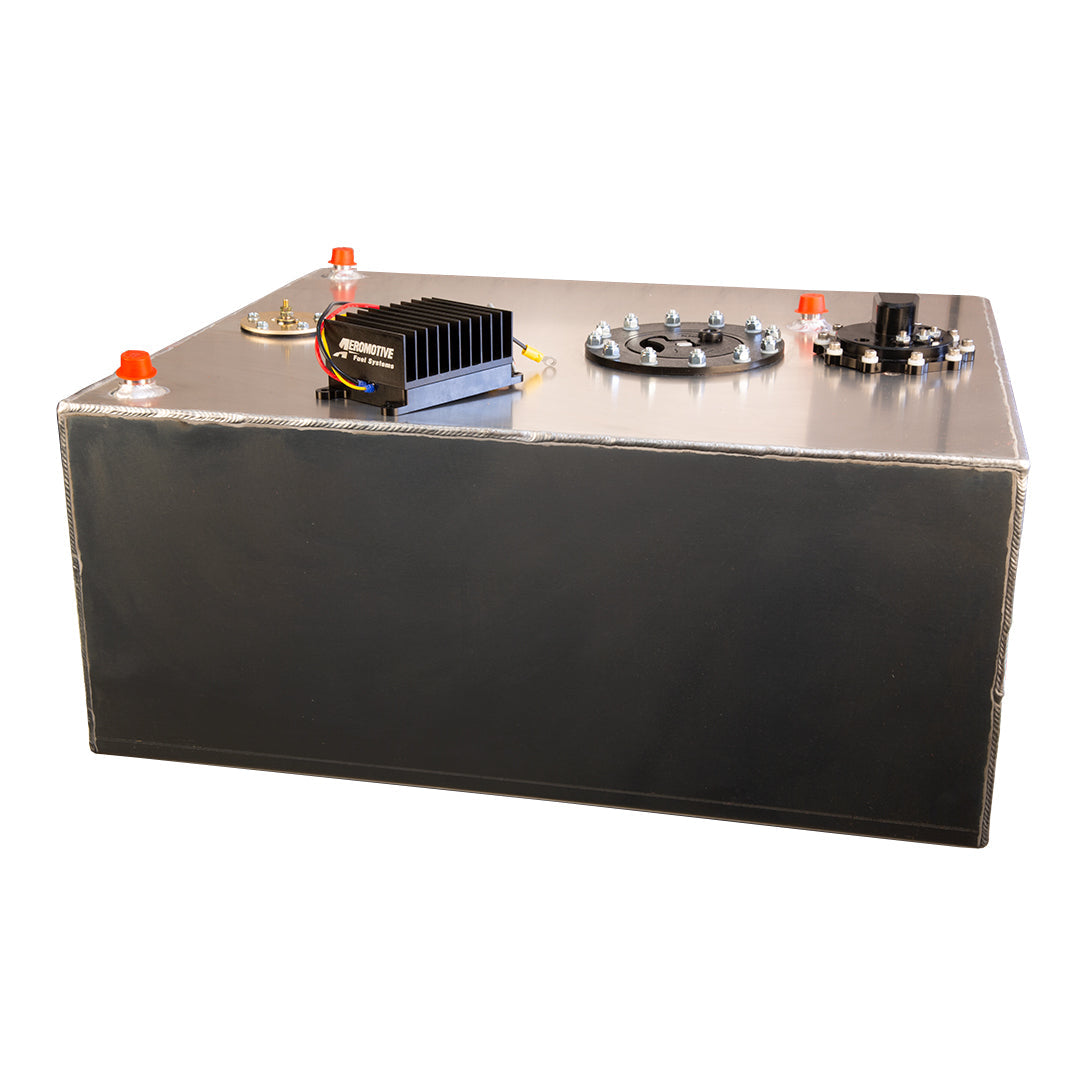

Fuel Cell with Integrated Brushless 5.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter (90 Degree Outlet)
Fuel Cell with Integrated Brushless 5.0 GPM In-Tank Fuel Pump Module, True Variable Speed, and Pre-Pump Fuel Filter (90 Degree Outlet)
Size:
6 Gallon
Regular price $2,951.08
Sale price $2,951.08 Regular price $3,278.98

You may also like

Recently Viewed Products

Fuel Your Passion with Aeromotive

Trending Builds & Posts in the Aeromotive Community
