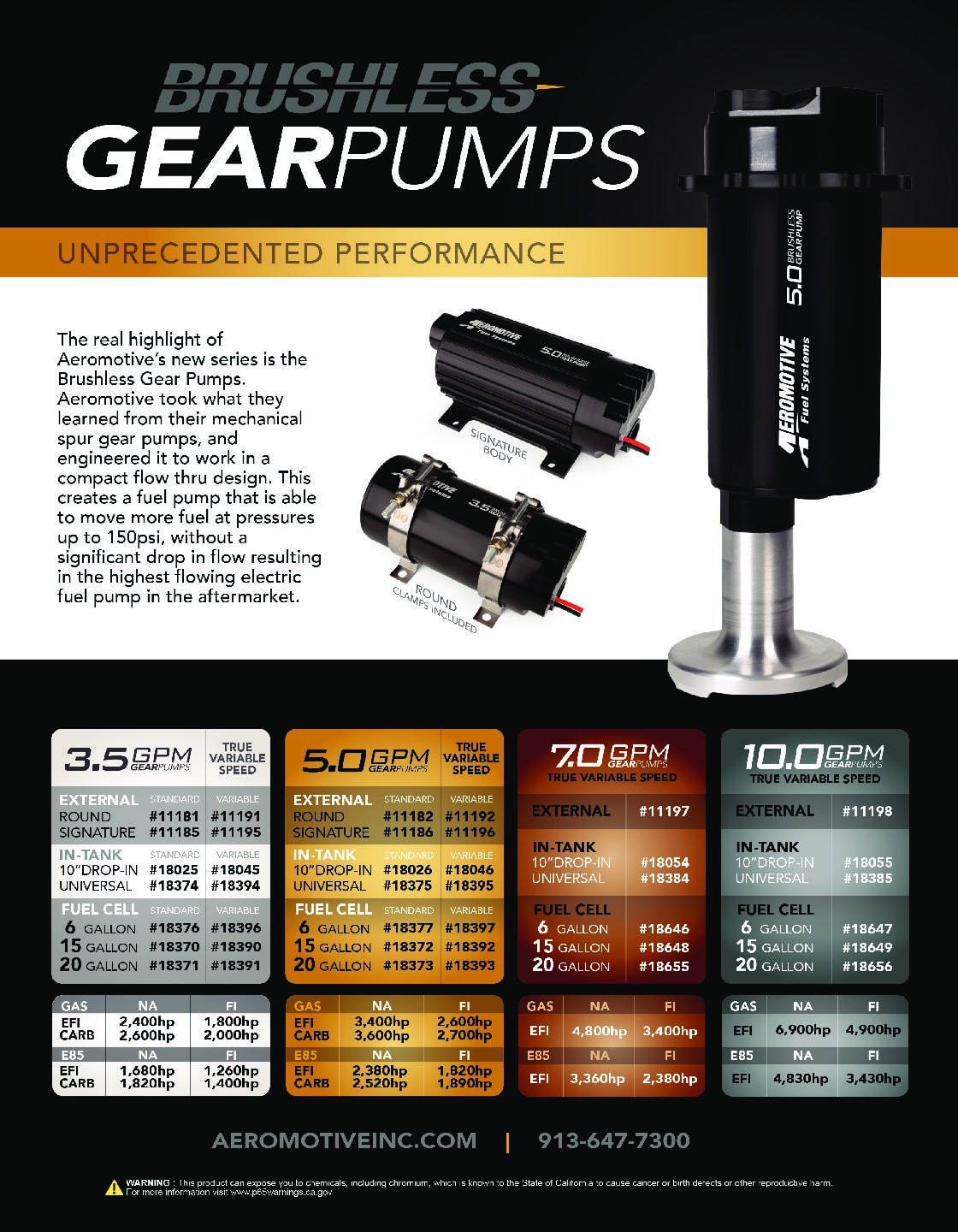

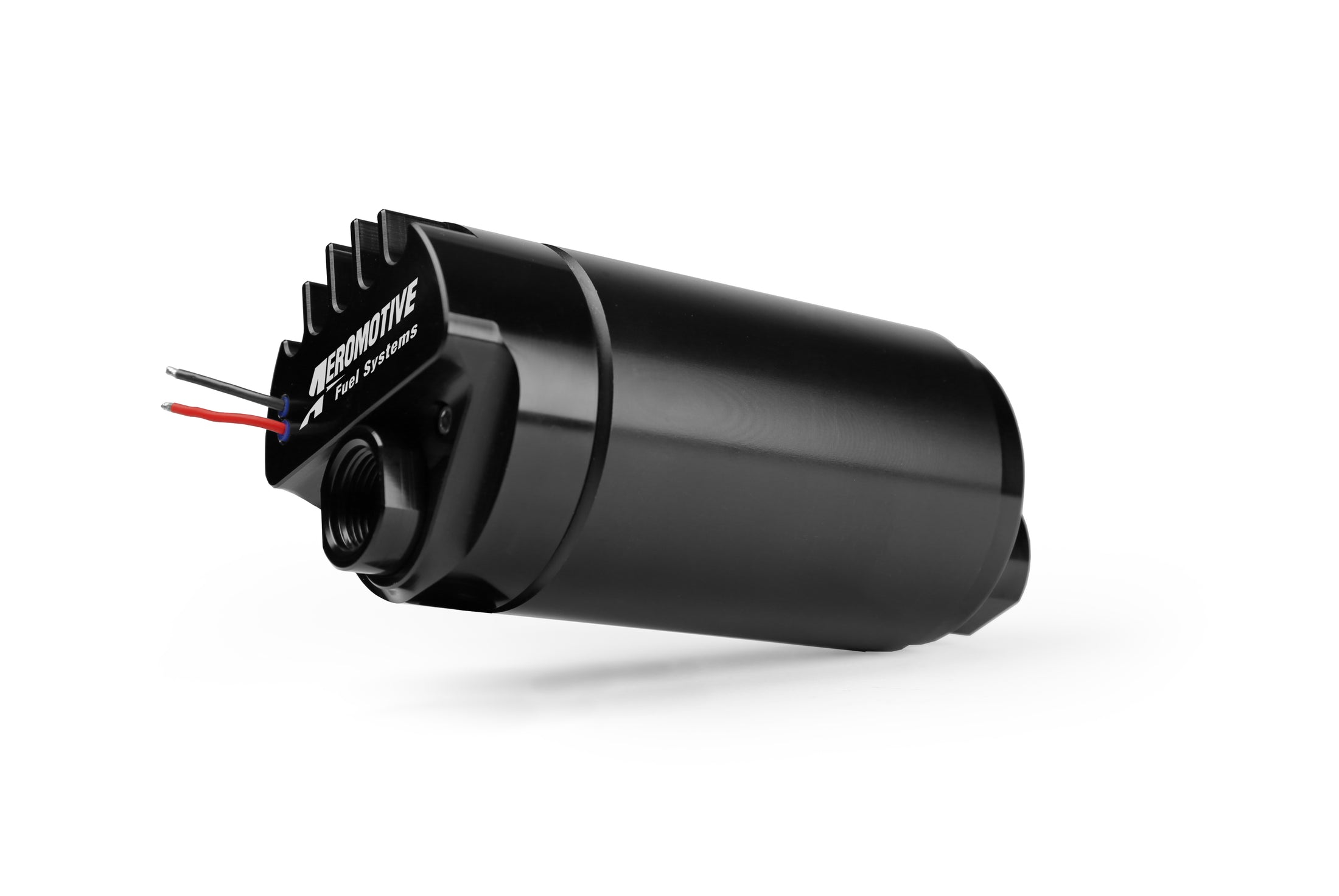

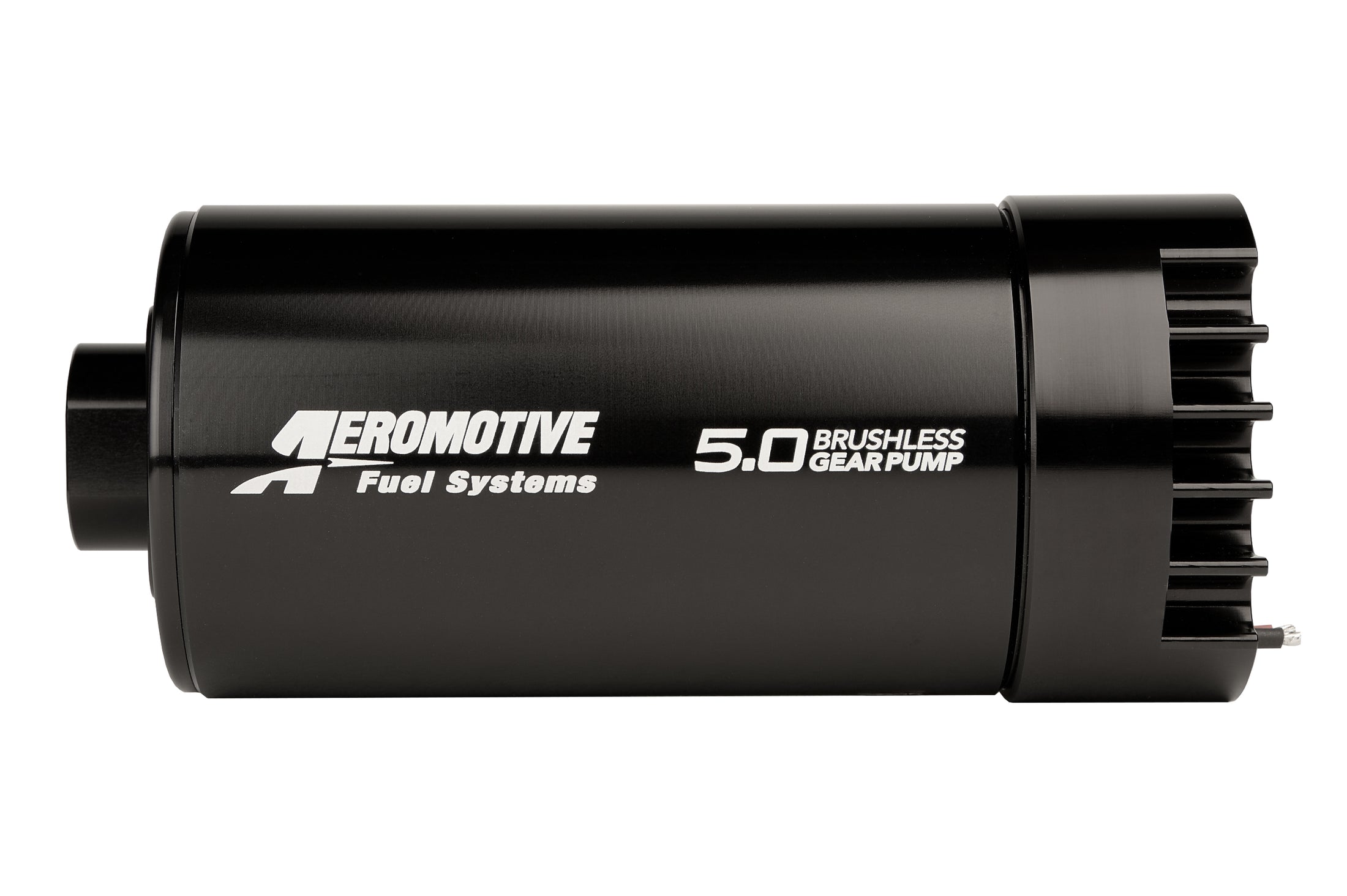

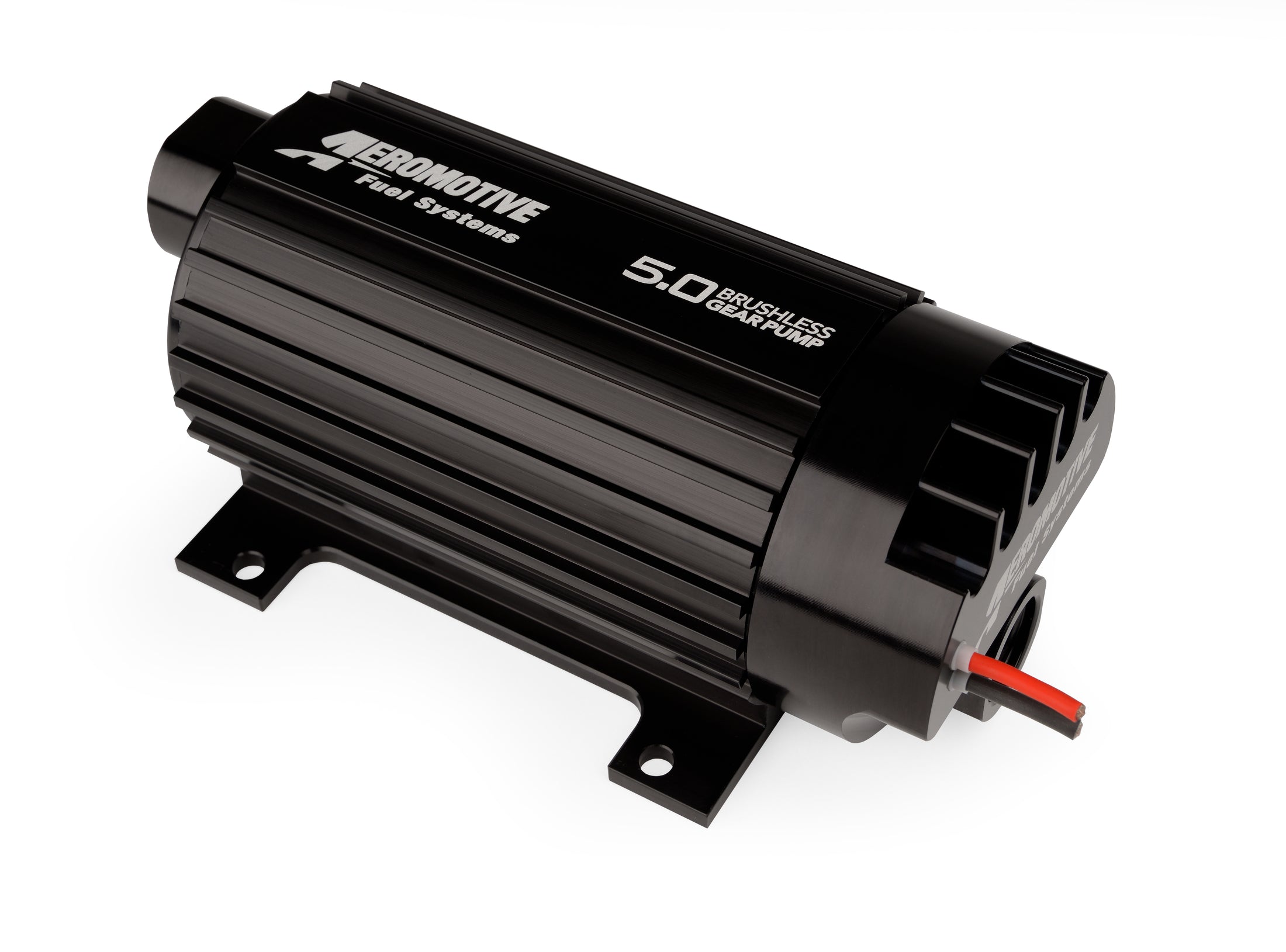

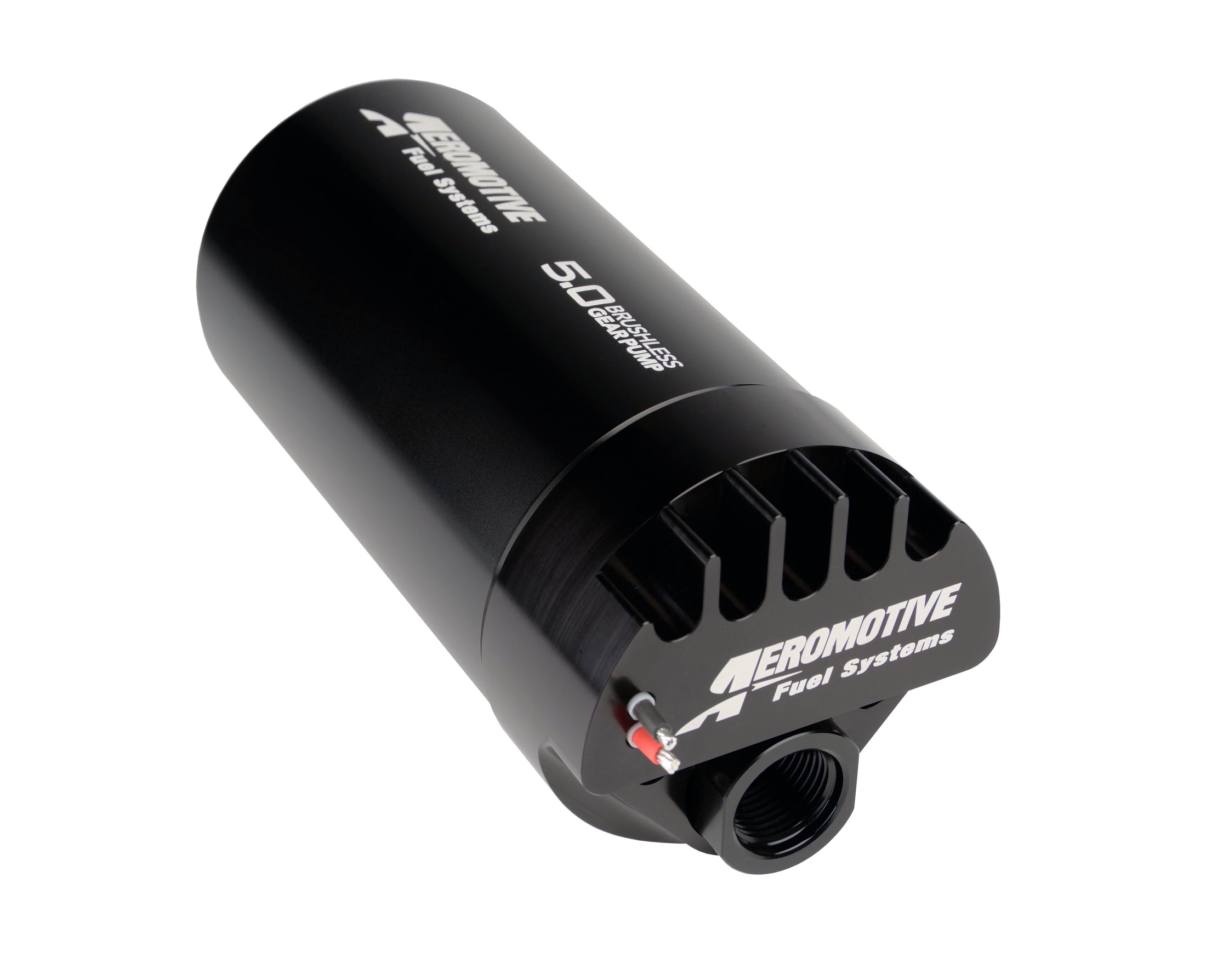

5.0 GPM In-Line Brushless Fuel Pump

5.0 GPM In-Line Brushless Fuel Pump

Part Number: 11192
Skip to product information

Product Info

5.0 Brushless Spur Gear Pump
Ground Shaking Performance - Advanced Technology

  • Supports

    • Fuel injected engines: GAS
      up to 3400 FWHP - naturally aspirated
      up to 2600 FWHP - forced air induction

    • Carbureted engines: GAS
      Up to 3600 FWHP - naturally aspirated
      Up to 2700 FWHP - forced air induction

    • Fuel injected engines: E85
      up to 2380 FWHP – naturally aspirated
      up to 1820 FWHP – forced air induction

    • Carbureted engines: E85
      Up to 2520 FWHP – naturally aspirated
      Up to 1890 FWHP – forced air induction

    • Fuel injected engines: METHANOL
      up to 1,190 FWHP – naturally aspirated
      up to 910 FWHP – forced air induction

    • Carbureted engines: METHANOL
      Up to 1,260 FWHP – naturally aspirated
      Up to 945 FWHP – forced air induction


  • Lighter than the traditional external mount pumps.

  • Reduced current draw at higher, EFI pressures.

  • Extended service life in methanol and ethanol.

  • New integral spur-gear pumping mechanism.

  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.

  • ORB-12 inlet and ORB-10 outlet ports.

  • Requires straight 12-VDC to 16-VDC power supply.
    • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.
  • Not compatible with pulse modulated systems or fuel pump speed controllers.


EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts

Specifications

Series 5.0GPM
Maximum Flow Rating 5.0 GPM
Maximum Pressure 90
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External External
Pump Design Spur Gear
Motor Style Brushless
Integrated Controller Yes
Pulse Width Modulation Compatible No
Fuel Delivery Type Carburation & Fuel Injection
Inlet Type Female Thread
Inlet Outside Diameter ORB-12
Outlet Type Female Thread
Outlet Outside Diameter ORB-10
Maximum Current Draw 12 @ 40 psi
Voltage 12
Negative Ground Yes
Wire Quantity 3
Wiring Harness Included No
Terminal Quantity 0
Terminal Type Lead Wire
Strainer Included No
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included Yes
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance
Marine Approved No
