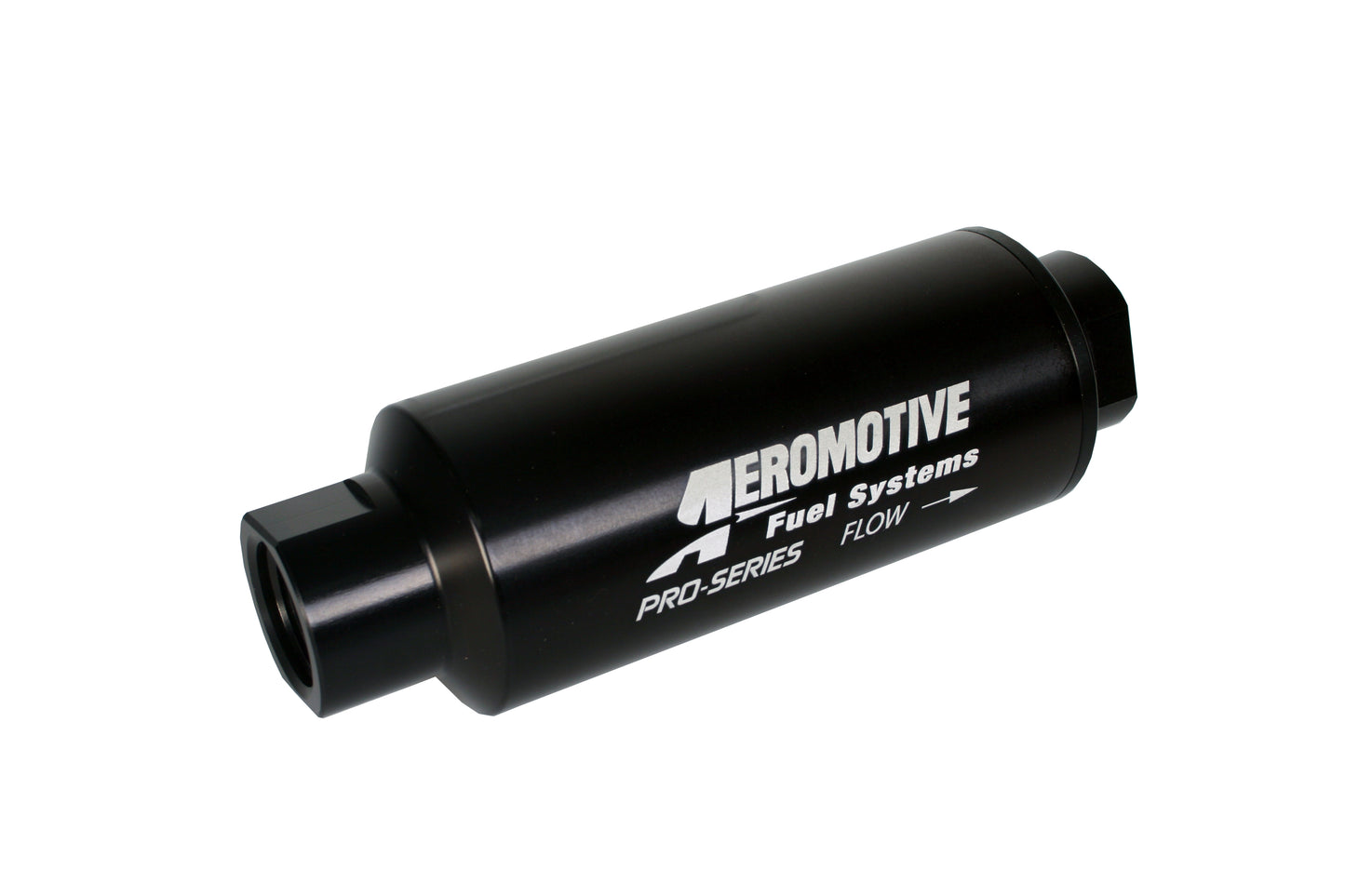

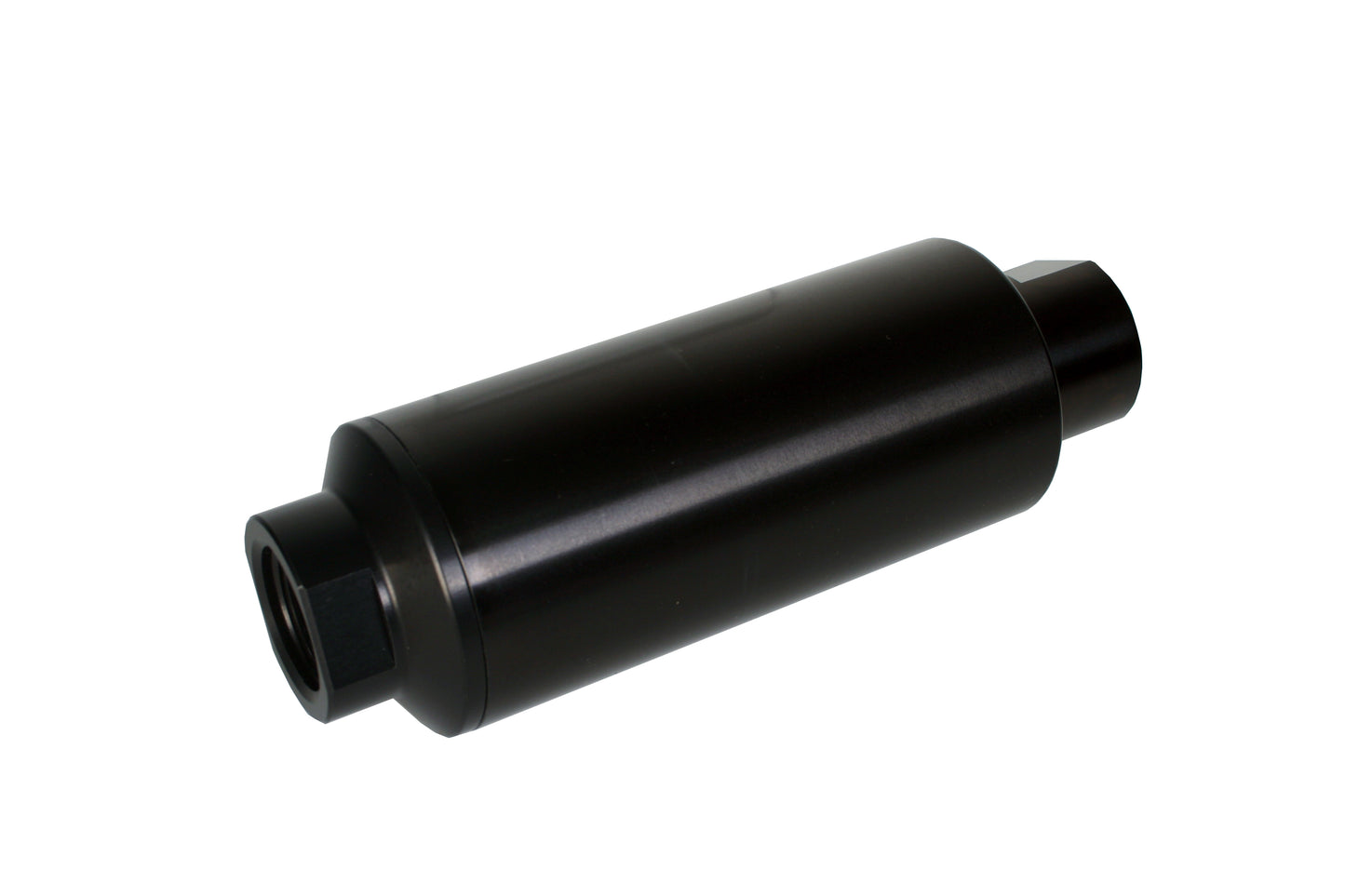

100 Micron Pro-Series Fuel Filter with ORB-12 Ports & Stainless Mesh Element
100 Micron Pro-Series Fuel Filter with ORB-12 Ports & Stainless Mesh Element
Product Info
Product Info
P/N 12302: Pro-Series 100 Micron, ORB-12 Fuel Filter
Designed for use with gas and alcohol fuels.

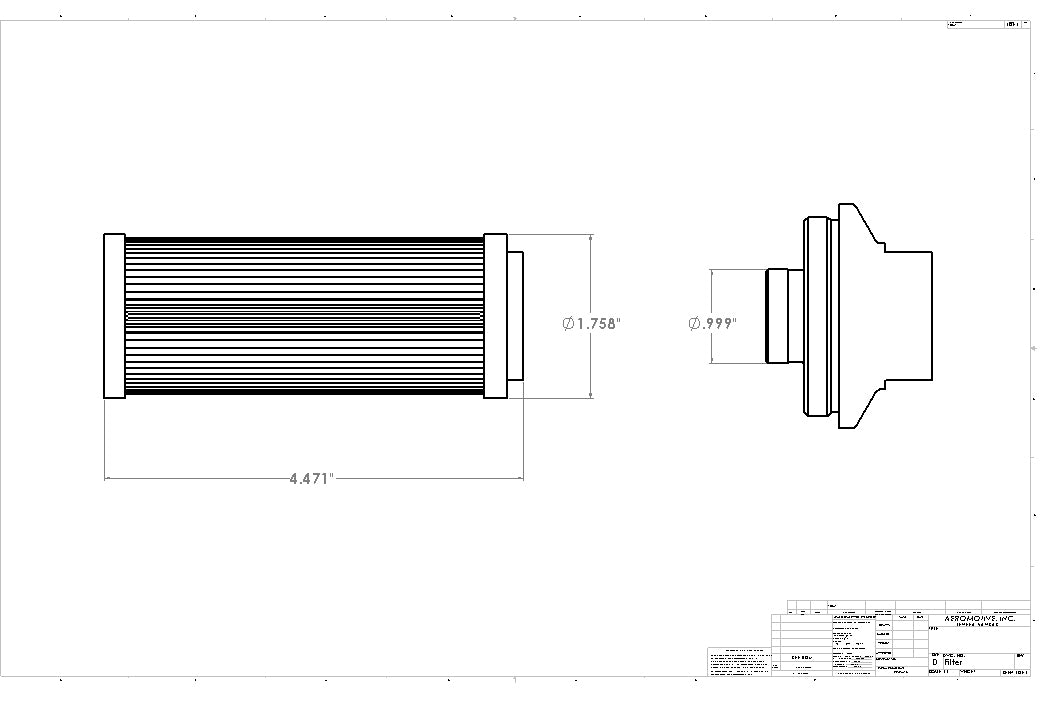

Replacement 100-m Stainless Element: P/N 12602
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
- High-flow, 100-micron stainless steel (coarse) cleanable element.
- Featuring our tough, Hard-Coat Black Anodized finish.
- Flows 2,000 lb/hr with a pressure drop of less than .15 PSI.
- ORB-12 ports. Fittings available to adapt these filters to AN-12, -10 line sizes. (see Fittings & Adapters)

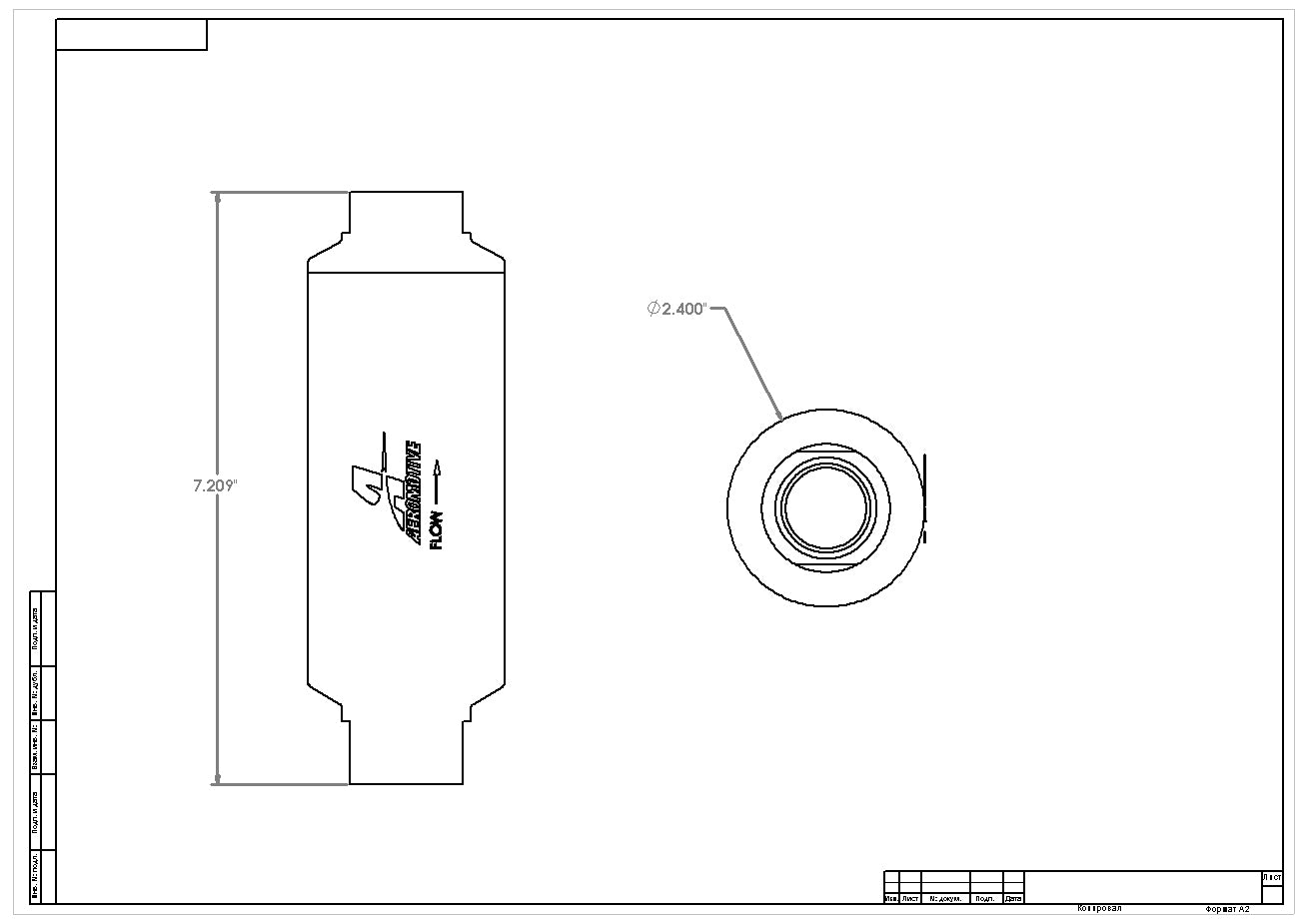

- 7' long x 2.5' diameter.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Designed for use with gas and alcohol fuels.
Replacement 100-m Stainless Element: P/N 12602
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
- High-flow, 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than .15 PSI.
- ORB-12 ports. Fittings available to adapt these filters to AN-12, -10 line sizes. (see Fittings & Adapters)
- Pro-Series filters feature an indestructible electroless nickel finish.
- 7' long x 2.5' diameter.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Additional information
Additional information
An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
Designed for use with gas and alcohol fuels.
Replacement 100-m Stainless Element: P/N 12602
- High-flow, 100-micron stainless steel (coarse) cleanable element.
- Featuring our tough, Hard-Coat Black Anodized finish.
- Flows 2,000 lb/hr with a pressure drop of less than .15 PSI.
- ORB-12 ports. Fittings available to adapt these filters to AN-12, -10 line sizes. (see Fittings & Adapters)
- 7' long x 2.5' diameter.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Designed for use with gas and alcohol fuels.
Replacement 100-m Stainless Element: P/N 12602
Specifications
Specifications
| Fuel Filter Style | Inline |
|---|---|
| Fuel Type | All Fuels |
| Inlet Quantity | 1 |
| Inlet Size | AN-12 |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | AN-12 |
| Outlet Quantity | 1 |
| Outlet Size | AN-12 |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | AN-12 |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Fitting Type | AN-12 |
| Fittings Included | No |
| Filter Element Included | Yes |
| Filter Element Material | Stainless steel mesh |
| Micron Rating | 100 |
| Smallest Particle Filtered | 100 microns |
| Flow Rate | 2000 Pounds Per Hour |
| Filter Housing Color | Black |
| Filter Housing Finish | Anodized |
| Filter Housing Diameter | 2.5 Inches |
| Filter Housing Length | 7 Inches |
| Filter Housing Material | Billet Aluminum |
| Mounting Type | External |
| Mounting Bracket Included | No |
| Clamps Included | No |
| Gasket Or Seal Included | Yes |
| Maximum Fuel Pressure (psi) | 70 PSI |
| Universal Or Specific Fit | Universal |
