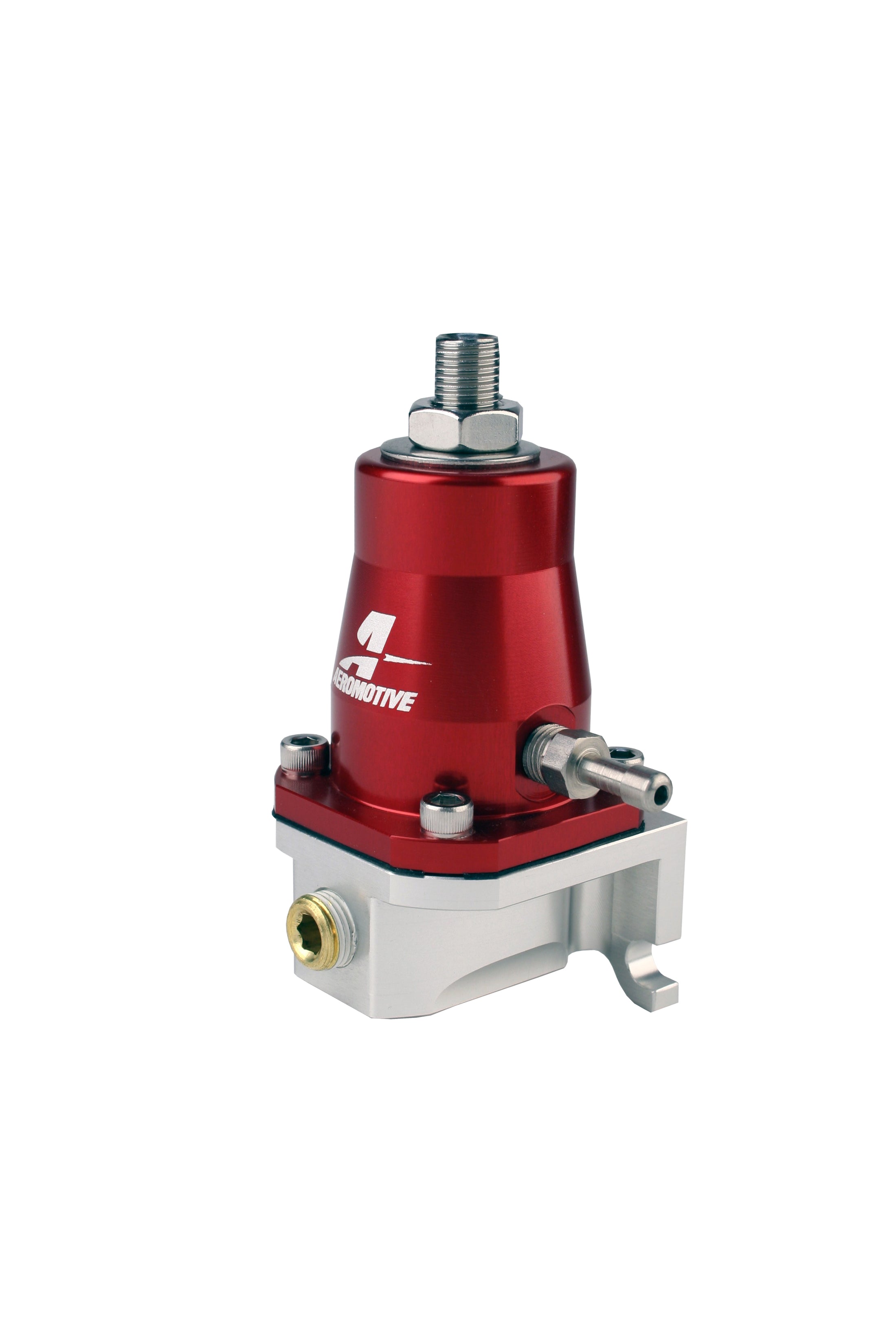

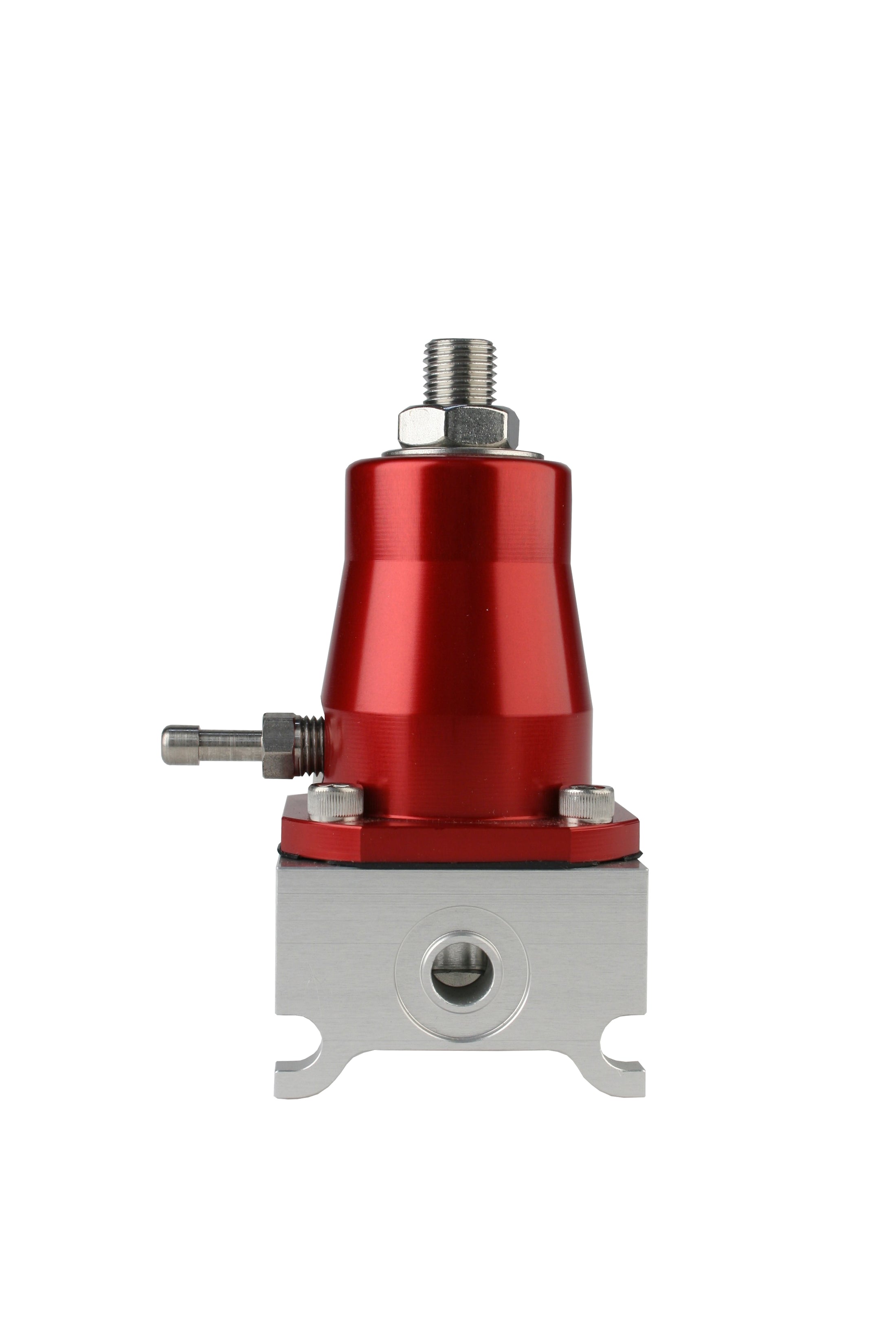

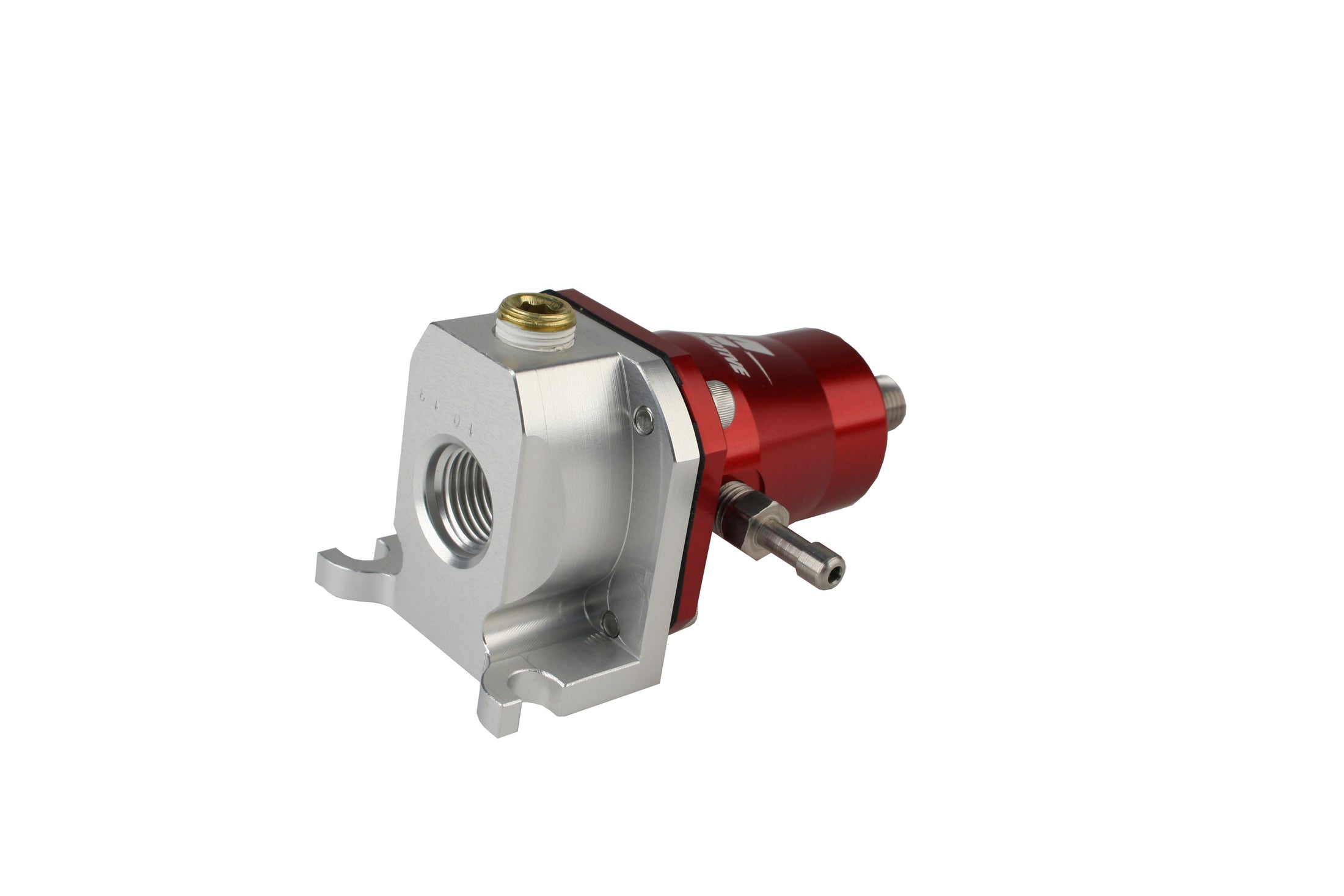

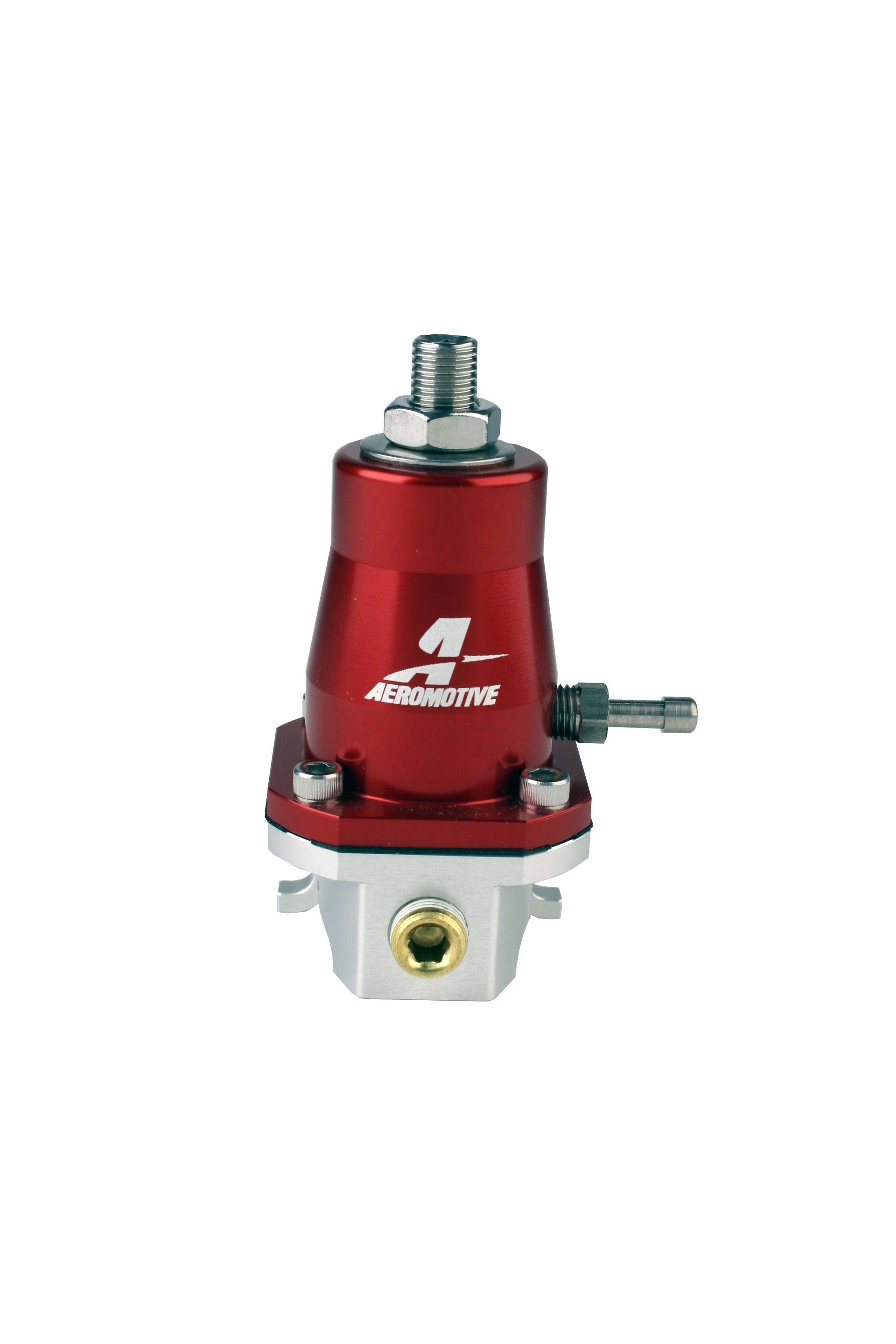

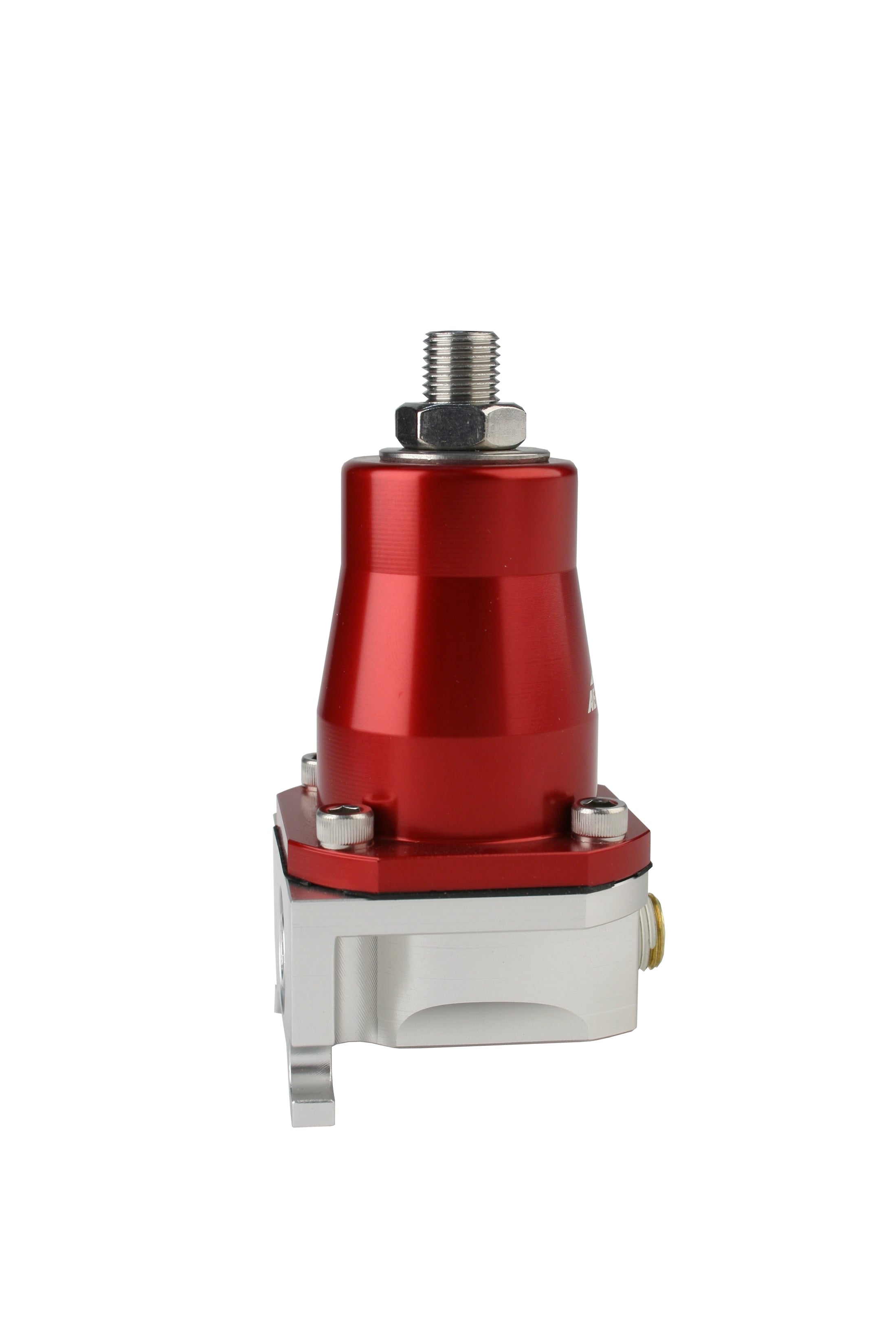

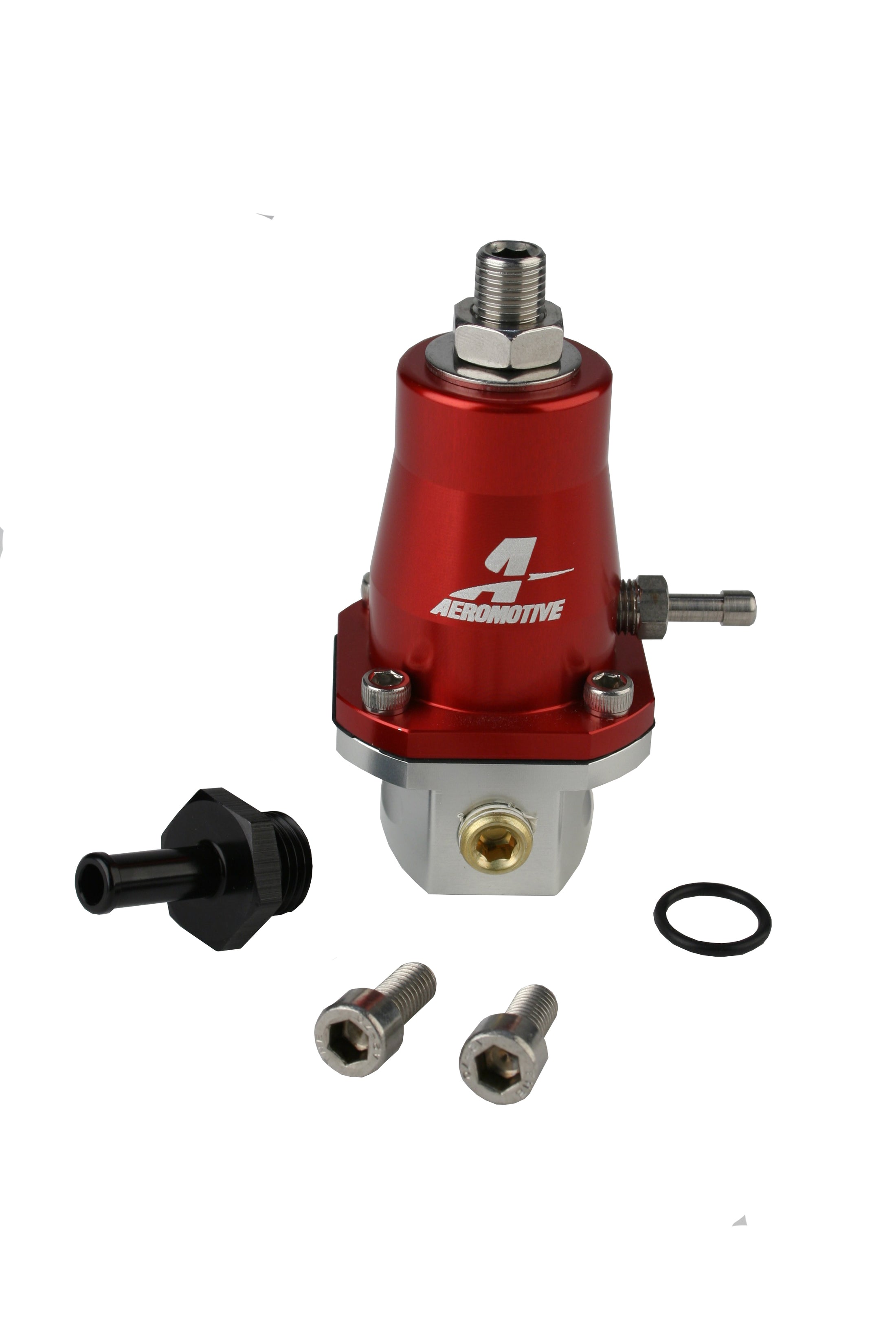

Billet Adjustable EFI Fuel Pressure Regulator, 92-97 Honda/Acura

Billet Adjustable EFI Fuel Pressure Regulator, 92-97 Honda/Acura

Part Number: 13116

Product Info
P/N 13116: Honda Billet Rail Mount Regulator
Fits Factory Honda Fuel Rail and fuel return line

Billet adjustable regulators specifically designed for Honda and Acura engines.  Provides fully adjustable base fuel pressure and mounts directly to a factory or aftermarket fuel rail with factory mounting pad.

  • Adjustable base pressure from 30-70 PSI.

  • Fuel pressure rises on a 1:1 ratio with boost.

  • Compatible with gas and ethanol based fuels.

  • Connects to the stock fuel rail and return line.

  • 1/8' NPT dedicated gauge/pressure test  port.

  • Suitable for pumps from stock flow up to A1000.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • The same Aeromotive flow and pressure control demanded by top racers and tuners, rolled into a Honda specific, bolt-on package.


P/N 13116
92-97 1.6L VTEC
86 - 89 Accord LXi/SEi
92 - 95 Civic
99 - 00 Civic Si
93 - 95 Del Sol S/Si
94 - 97 Del Sol VTEC
89 - 91 Prelude Si
94 - 01 Integra

For additional Honda / Accura Applications see:

P/N 13115
8-01 2.3L VTEC
98 - 02 Accord 4 cyl
96 - 97 Del Sol Si
00 - 04 S2000
98 - 99 CL 2.3L

Additional information
Application specific billet, adjustable fuel pressure regulator.  Specially engineered for fitment and optimum flow and pressure control on Honda and Acura engines.  Provides fully adjustable base fuel pressure, 1:1 rising rate for forced induction engines if necessary and mounts directly to a factory or aftermarket Honda or Accura fuel rail equipped with the factory style fuel pressure regulator mounting pad.

  • Adjustable base pressure from 30-70 PSI.

  • Fuel pressure rises on a 1:1 ratio with boost.

  • Compatible with gas and ethanol based fuels.

  • Connects to the stock fuel rail and return line.

  • 1/8' NPT dedicated gauge/pressure test  port.

  • Suitable for pumps from stock flow up to A1000.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • The same Aeromotive flow and pressure control demanded by top racers and tuners, rolled into a Honda specific, bolt-on package.

Specifications
Pressure Range 30-70 PSI
Adjustable Yes
Minimum Pressure 30 PSI
Maximum Pressure 70 PSI
Mounting Bracket Included Yes
Port Quantity 2
Gauge Included No
Color Red/Silver
Grade Type Performance

Regulator Service Kits
  • EFI Regulator Service Kit

    EFI Regulator Service Kit

    EFI Regulator Service Kit

    Part Number: 13003
    $39.95
    $39.95

    • Installation Instructions
    Instruction Manual
    Installation Instructions

    Download PDF

    Product warranty

    Retail Purchasers:

    • Warranty: 1 year from purchase date with proof.
    • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
    • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
    • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

    Distributors:

    • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
    • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

    Returns & replacements

    Returns:

    • Accepted within 90 days of purchase.
    • Prior authorization required; items must be new and resaleable.
    • Call 913-808-2376 to initiate a return and get an RGA.
    • Ship unused products in original packaging with proof of purchase.
    • You pay return shipping; use a trackable method.
    • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
    • Refunds processed within 5-10 days of return acceptance.

    Defective Items:

    • Call 913-808-2376 (Returns and Repairs) for assistance.
    • Follow RGA/Warranty protocol for refunds or replacements.

    Limits of Responsibility:

    • See Product Warranty page for more info.

    Price/Description Changes:

    • Prices, pictures, and descriptions may change.
    • Report discrepancies within 30 days.
    • No refunds for price differences on past or future orders.

    Promotions:

    • Discount codes apply to web store orders only.
    • Not valid on previous orders or outside promotion dates.

    Reviews

    Billet Adjustable EFI Fuel Pressure Regulator, 92-97 Honda/Acura

    Billet Adjustable EFI Fuel Pressure Regulator, 92-97 Honda/Acura

    Part Number: 13116
    $350.95
    $350.95

    Part Number: 13116
    Does This part fit My vehicle?
    Product details
    1 Year Warranty 90 Days Return Policy
    View full details

    Product Info
    P/N 13116: Honda Billet Rail Mount Regulator
    Fits Factory Honda Fuel Rail and fuel return line

    Billet adjustable regulators specifically designed for Honda and Acura engines.  Provides fully adjustable base fuel pressure and mounts directly to a factory or aftermarket fuel rail with factory mounting pad.

    • Adjustable base pressure from 30-70 PSI.

    • Fuel pressure rises on a 1:1 ratio with boost.

    • Compatible with gas and ethanol based fuels.

    • Connects to the stock fuel rail and return line.

    • 1/8' NPT dedicated gauge/pressure test  port.

    • Suitable for pumps from stock flow up to A1000.

    • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

    • The same Aeromotive flow and pressure control demanded by top racers and tuners, rolled into a Honda specific, bolt-on package.


    P/N 13116
    92-97 1.6L VTEC
    86 - 89 Accord LXi/SEi
    92 - 95 Civic
    99 - 00 Civic Si
    93 - 95 Del Sol S/Si
    94 - 97 Del Sol VTEC
    89 - 91 Prelude Si
    94 - 01 Integra

    For additional Honda / Accura Applications see:

    P/N 13115
    8-01 2.3L VTEC
    98 - 02 Accord 4 cyl
    96 - 97 Del Sol Si
    00 - 04 S2000
    98 - 99 CL 2.3L

    Additional information
    Application specific billet, adjustable fuel pressure regulator.  Specially engineered for fitment and optimum flow and pressure control on Honda and Acura engines.  Provides fully adjustable base fuel pressure, 1:1 rising rate for forced induction engines if necessary and mounts directly to a factory or aftermarket Honda or Accura fuel rail equipped with the factory style fuel pressure regulator mounting pad.

    • Adjustable base pressure from 30-70 PSI.

    • Fuel pressure rises on a 1:1 ratio with boost.

    • Compatible with gas and ethanol based fuels.

    • Connects to the stock fuel rail and return line.

    • 1/8' NPT dedicated gauge/pressure test  port.

    • Suitable for pumps from stock flow up to A1000.

    • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

    • The same Aeromotive flow and pressure control demanded by top racers and tuners, rolled into a Honda specific, bolt-on package.

    Specifications
    Pressure Range 30-70 PSI
    Adjustable Yes
    Minimum Pressure 30 PSI
    Maximum Pressure 70 PSI
    Mounting Bracket Included Yes
    Port Quantity 2
    Gauge Included No
    Color Red/Silver
    Grade Type Performance

    Regulator Service Kits
  • EFI Regulator Service Kit

    EFI Regulator Service Kit

    EFI Regulator Service Kit

    Part Number: 13003
    $39.95
    $39.95

    • Installation Instructions
    Instruction Manual
    Installation Instructions

    Download PDF

    Product warranty

    Retail Purchasers:

    • Warranty: 1 year from purchase date with proof.
    • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
    • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
    • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

    Distributors:

    • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
    • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

    Returns & replacements

    Returns:

    • Accepted within 90 days of purchase.
    • Prior authorization required; items must be new and resaleable.
    • Call 913-808-2376 to initiate a return and get an RGA.
    • Ship unused products in original packaging with proof of purchase.
    • You pay return shipping; use a trackable method.
    • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
    • Refunds processed within 5-10 days of return acceptance.

    Defective Items:

    • Call 913-808-2376 (Returns and Repairs) for assistance.
    • Follow RGA/Warranty protocol for refunds or replacements.

    Limits of Responsibility:

    • See Product Warranty page for more info.

    Price/Description Changes:

    • Prices, pictures, and descriptions may change.
    • Report discrepancies within 30 days.
    • No refunds for price differences on past or future orders.

    Promotions:

    • Discount codes apply to web store orders only.
    • Not valid on previous orders or outside promotion dates.

    Reviews
    Year / Make / Model 1997 Acura EL
    Engine Size(s) Liters: 1.6
    Cubic Inches: 97

    Year / Make / Model 1992-1997 Honda Civic
    Engine Size(s) Liters: 1.6
    Cubic Inches: 98
