Product Info
Product Info

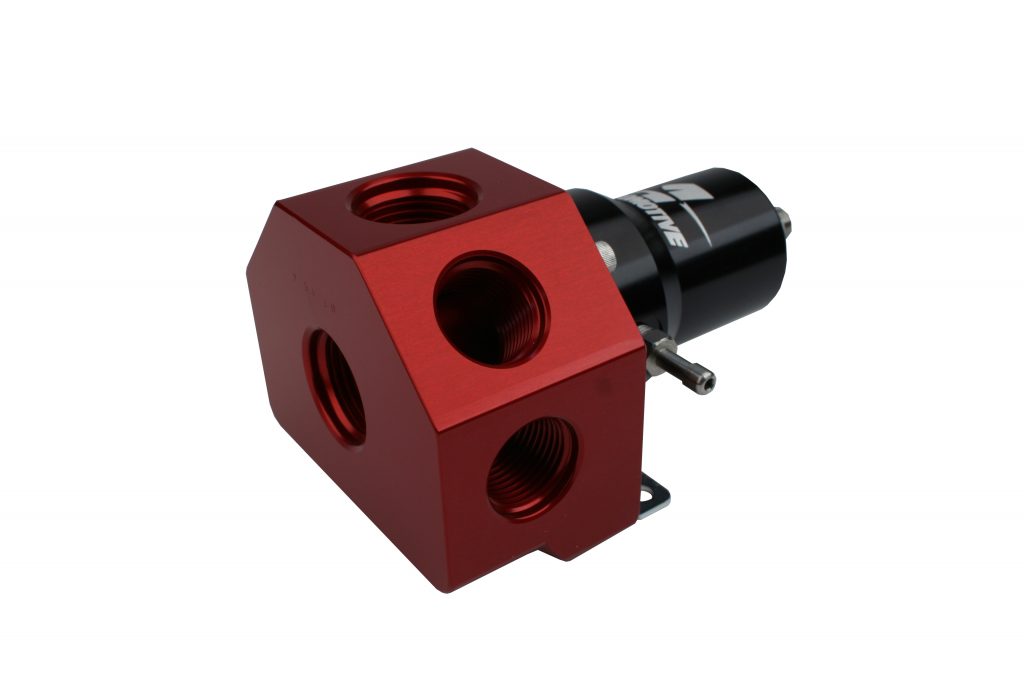

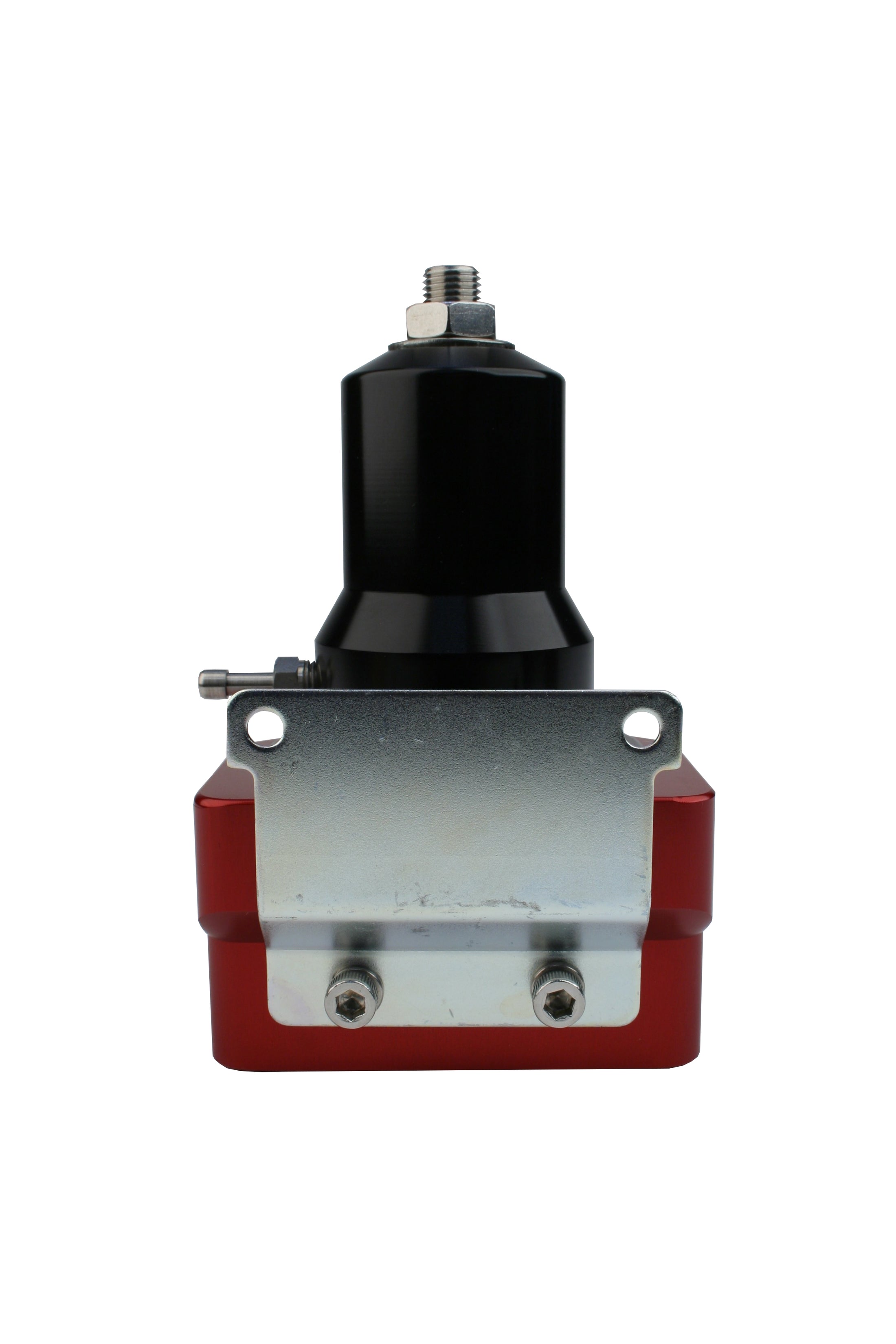

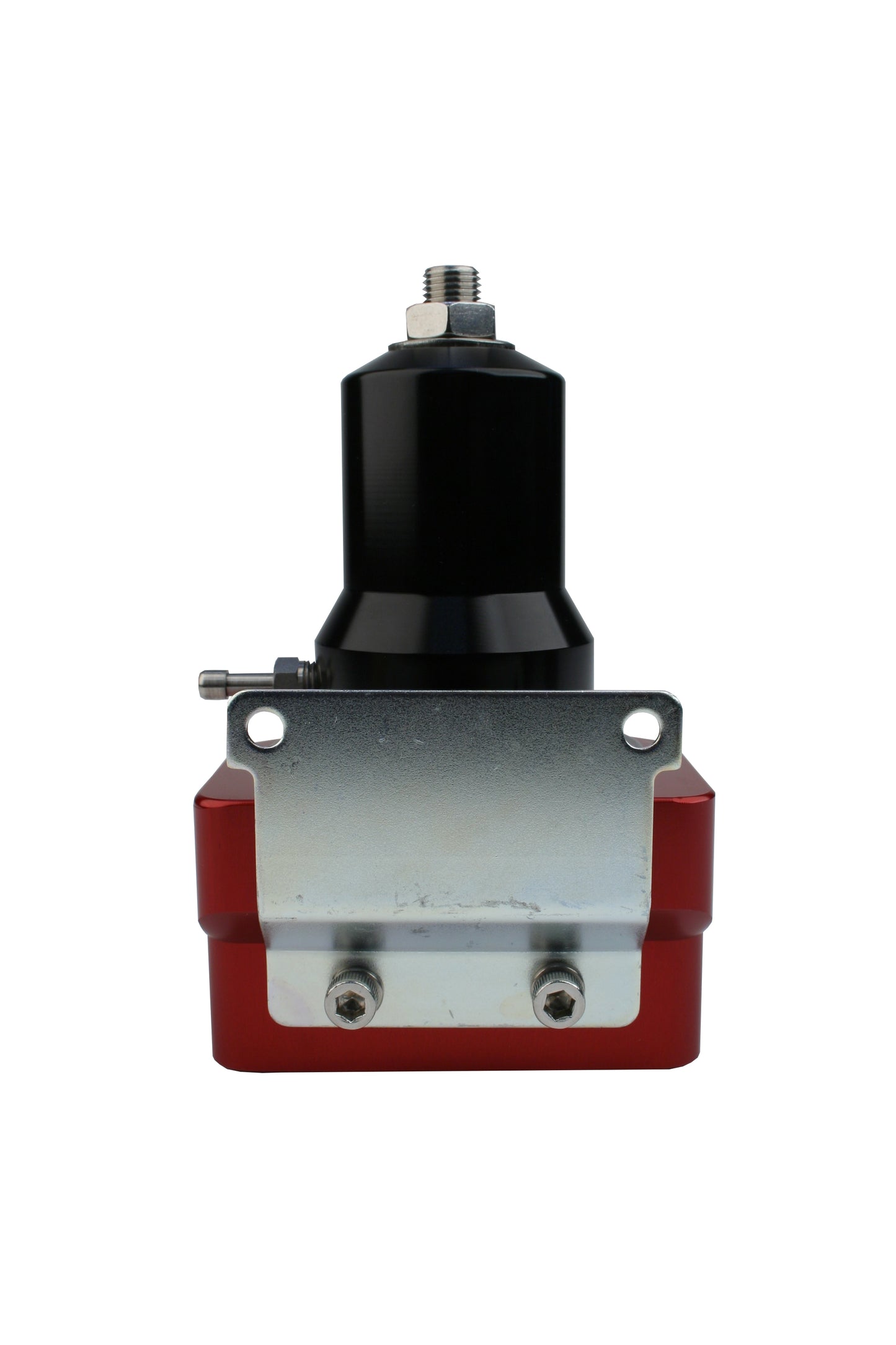

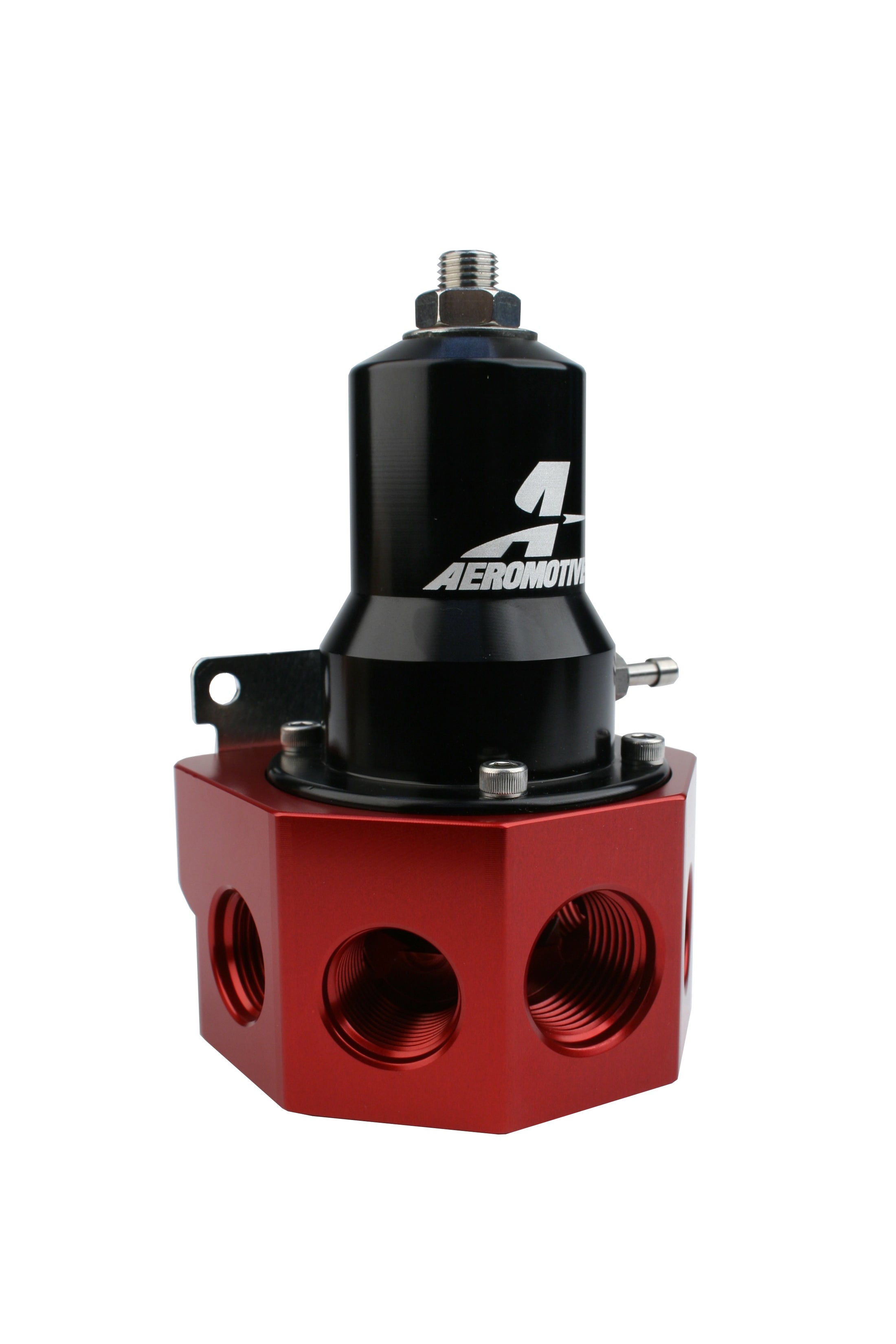

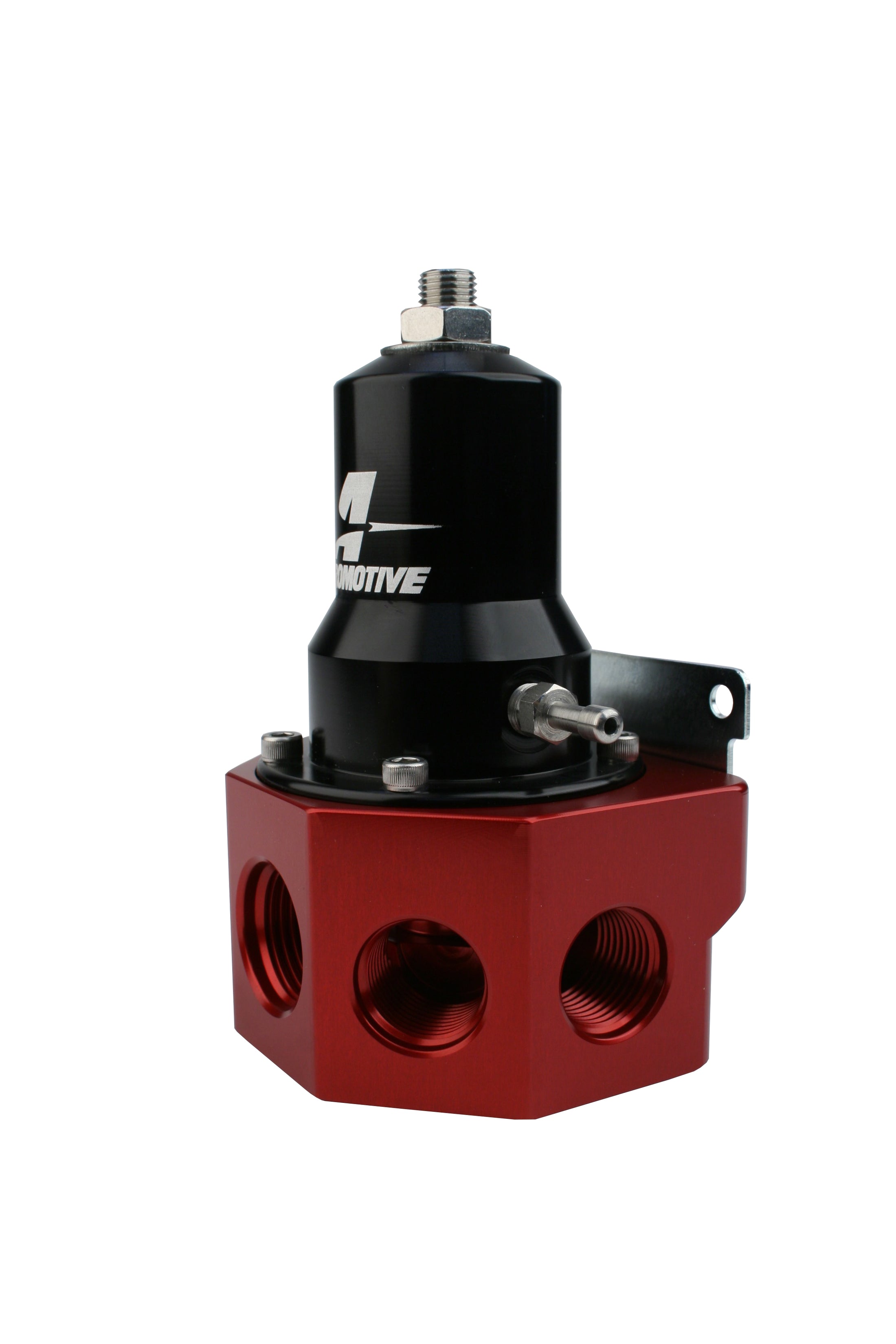

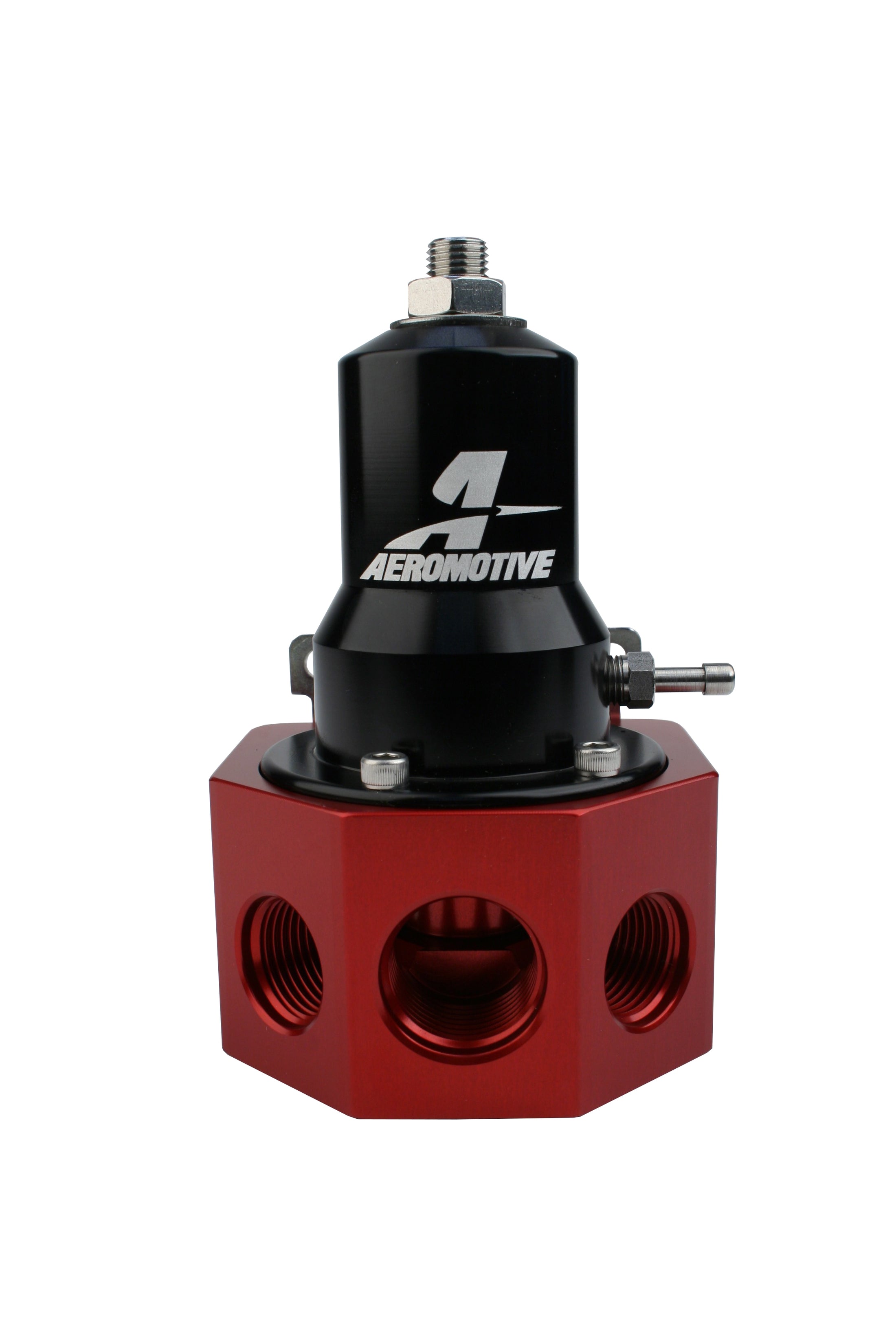

Extreme Flow EFI Regulator
Designed for use with Belt or Hex Drive Fuel Pumps .
Expanded, 5-Port Body with 1 - AN-10 plus 4 AN-08 inlet/outlet ports, and one AN-10 return port.
0.500 High Flow Valve/Seat, able to handle 7-26 GPM Fuel Pumps

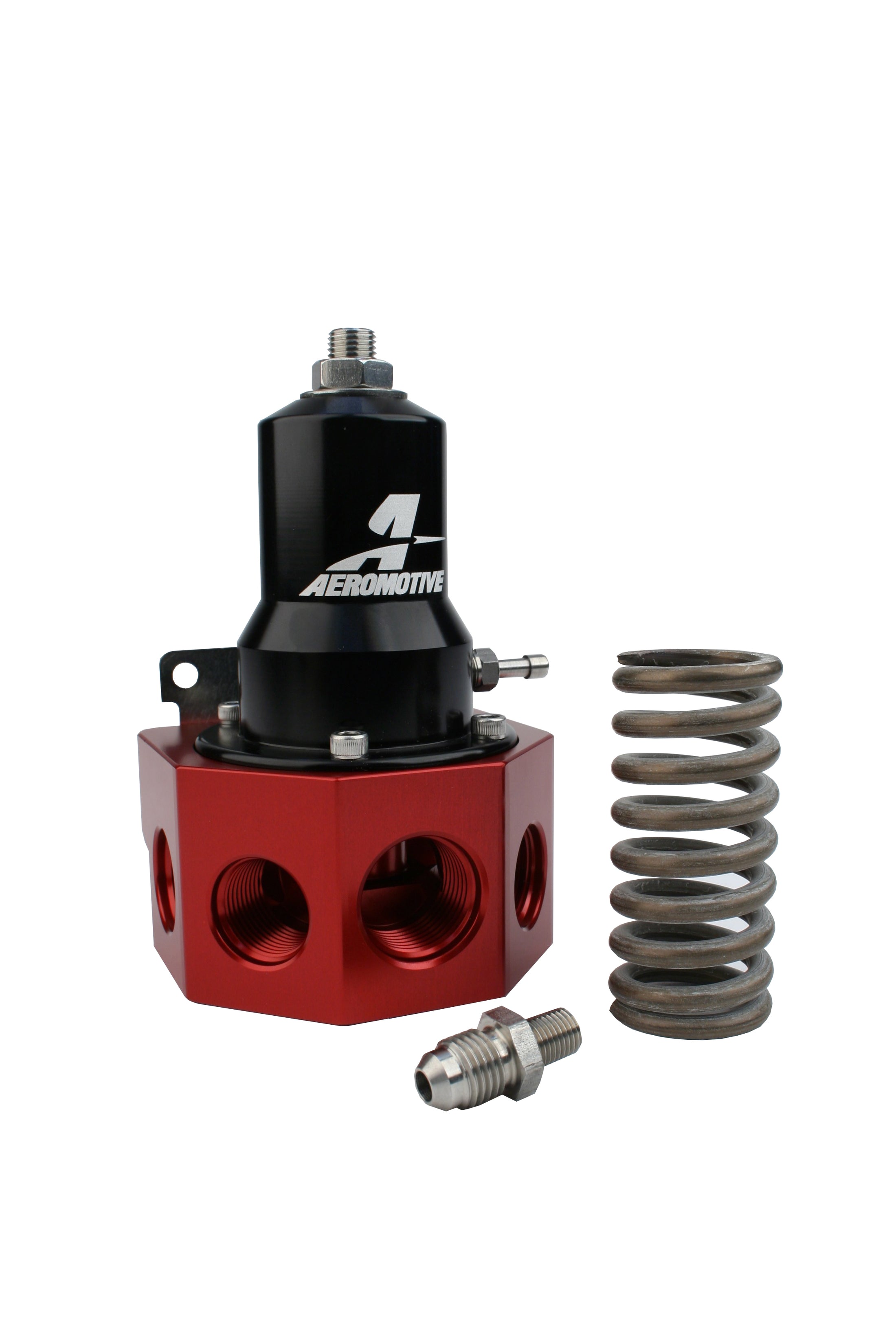

Dual Springs expand operating pressure range while maintaining a low profile and reduced weight.
Standard spring (installed) supports 30-75 PSI base fuel pressure.
High Pressure spring (included) supports 75-120 PSI base fuel pressure.
Supports vacuum and boost reference on a 1:1 ratio with PSI
This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
Designed for use with Belt or Hex Drive Fuel Pumps .
Expanded, 5-Port Body with 1 - AN-10 plus 4 AN-08 inlet/outlet ports, and one AN-10 return port.
0.500 High Flow Valve/Seat, able to handle 7-26 GPM Fuel Pumps
Dual Springs expand operating pressure range while maintaining a low profile and reduced weight.
Standard spring (installed) supports 30-75 PSI base fuel pressure.
High Pressure spring (included) supports 75-120 PSI base fuel pressure.
Supports vacuum and boost reference on a 1:1 ratio with PSI
This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
Specifications
Specifications
| Pressure Range | 30-120 PSI |
|---|---|
| Adjustable | Yes |
| Minimum Pressure | 30 PSI |
| Maximum Pressure | 120 PSI |
| Mounting Bracket Included | Yes |
| Port Quantity | 5 |
| Inlet Port Diameter | ORB-10 |
| Inlet Gender | Female |
| Gauge Included | No |
| Color | Black/Red |
| Grade Type | Performance |
Regulator Service Kits
Regulator Service Kits
Regulator Diaphragm Service Kit
Part Number:
13006
Regular price
$58.45
Sale price
$58.45
Regular price
Unit price
per
Installation Instructions
Installation Instructions
Product warranty
Product warranty
Retail Purchasers:
- Warranty: 1 year from purchase date with proof.
- Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
- Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
- Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).
Distributors:
- Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
- Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.
Returns & replacements
Returns & replacements
Returns:
- Accepted within 90 days of purchase.
- Prior authorization required; items must be new and resaleable.
- Call 913-808-2376 to initiate a return and get an RGA.
- Ship unused products in original packaging with proof of purchase.
- You pay return shipping; use a trackable method.
- Refund excludes initial shipping fees and may include up to a 15% restocking fee.
- Refunds processed within 5-10 days of return acceptance.
Defective Items:
- Call 913-808-2376 (Returns and Repairs) for assistance.
- Follow RGA/Warranty protocol for refunds or replacements.
Limits of Responsibility:
- See Product Warranty page for more info.
Price/Description Changes:
- Prices, pictures, and descriptions may change.
- Report discrepancies within 30 days.
- No refunds for price differences on past or future orders.
Promotions:
- Discount codes apply to web store orders only.
- Not valid on previous orders or outside promotion dates.
Reviews
Reviews
Regular price
$294.95
Sale price
$294.95
Regular price
Unit price
per
Does This part fit My vehicle?
Product Info
Product Info
Extreme Flow EFI Regulator
Designed for use with Belt or Hex Drive Fuel Pumps .
Expanded, 5-Port Body with 1 - AN-10 plus 4 AN-08 inlet/outlet ports, and one AN-10 return port.
0.500 High Flow Valve/Seat, able to handle 7-26 GPM Fuel Pumps
Dual Springs expand operating pressure range while maintaining a low profile and reduced weight.
Standard spring (installed) supports 30-75 PSI base fuel pressure.
High Pressure spring (included) supports 75-120 PSI base fuel pressure.
Supports vacuum and boost reference on a 1:1 ratio with PSI
This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
Designed for use with Belt or Hex Drive Fuel Pumps .
Expanded, 5-Port Body with 1 - AN-10 plus 4 AN-08 inlet/outlet ports, and one AN-10 return port.
0.500 High Flow Valve/Seat, able to handle 7-26 GPM Fuel Pumps
Dual Springs expand operating pressure range while maintaining a low profile and reduced weight.
Standard spring (installed) supports 30-75 PSI base fuel pressure.
High Pressure spring (included) supports 75-120 PSI base fuel pressure.
Supports vacuum and boost reference on a 1:1 ratio with PSI
This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
Specifications
Specifications
| Pressure Range | 30-120 PSI |
|---|---|
| Adjustable | Yes |
| Minimum Pressure | 30 PSI |
| Maximum Pressure | 120 PSI |
| Mounting Bracket Included | Yes |
| Port Quantity | 5 |
| Inlet Port Diameter | ORB-10 |
| Inlet Gender | Female |
| Gauge Included | No |
| Color | Black/Red |
| Grade Type | Performance |
