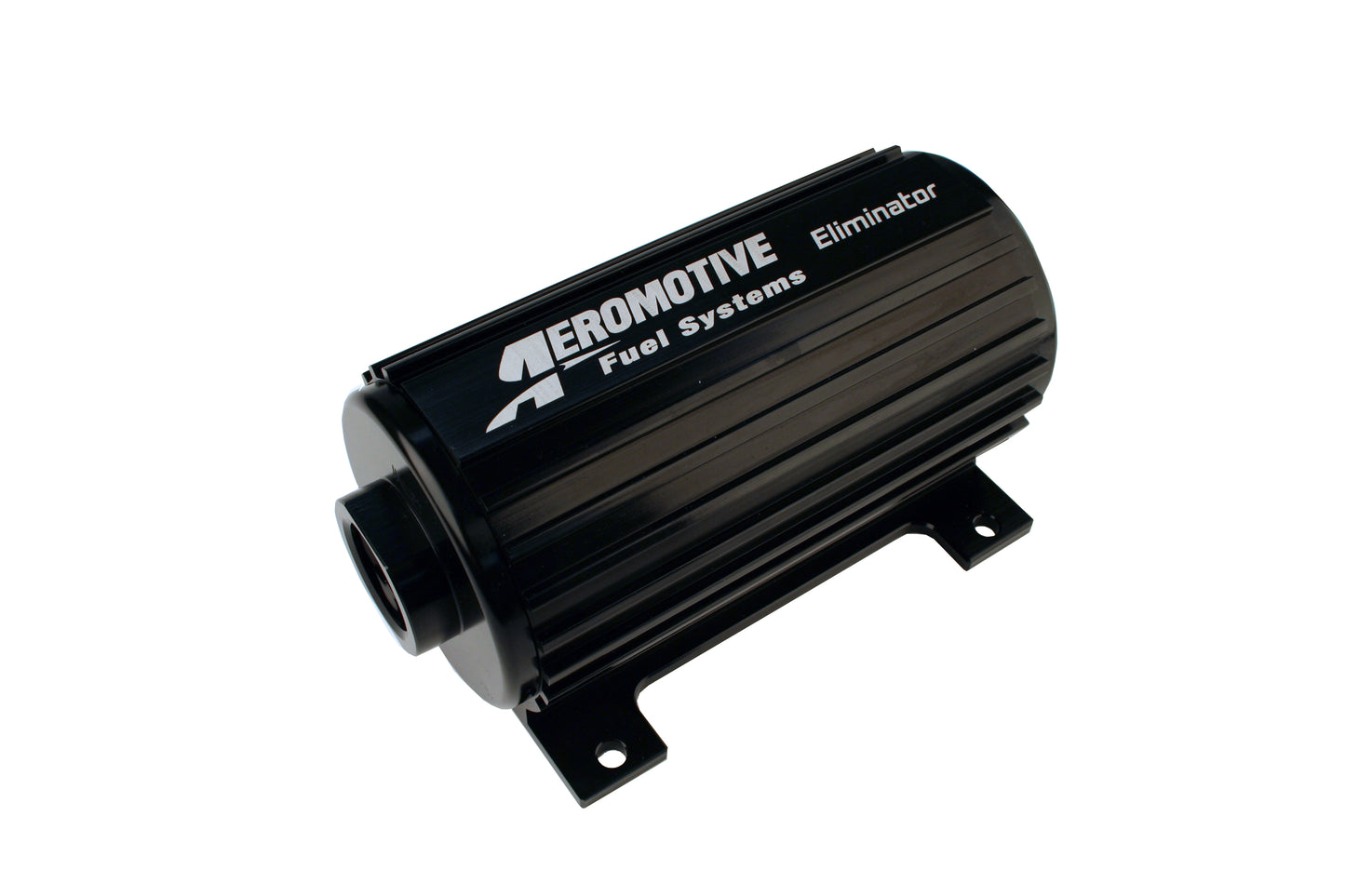

Eliminator In-Line Fuel Pump

Eliminator In-Line Fuel Pump

Part Number: 11104
Skip to product information

Product Info

P/N 11104: Eliminator Fuel Pump

This continuous duty 'street warrior' supports big horsepower and maintains the drivability necessary for a true high performance street car. Designed for high horsepower street/strip applications, EFI or Carbureted, it features our 'dual chamber' pumping mechanism.

Fuel Injected Engines:
up to 1900 HP - naturally aspirated
up to 1400 HP - forced air induction

Carbureted Engines:
up to 2300 HP - naturally aspirated
up to 1700 HP - forced air induction

Fuel Injected Engines: E85
up to 1330 FWHP – naturally aspirated
up to 980 FWHP – forced air induction

Carbureted Engines: E85
up to 1610 FWHP – naturally aspirated
up to 1190 FWHP – forced air induction

  • ORB-12 inlet port and ORB-10 outlet port.

  • For EFI applications use regulator P/N 13110 or 13134, carbureted P/N 13212 13202.

  • Fully submersible for custom, in-tank placement.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • 25% more flow at pressure than our A1000 Fuel Pump.

  • Perfect for 'blow-through' carbureted engines up to 1700 HP.

  • Billet Speed Pump Controller (P/N 16306) recommended for EFI street applications.

Specifications

Series Eliminator
Maximum Flow Rating 1250
Maximum Pressure 100
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External External Or Internal
Pump Design Rotary Vane
Motor Style Brushed
Integrated Controller No
Pulse Width Modulation Compatible Yes
Fuel Delivery Type Carburation & Fuel Injection
Inlet Type Female Thread
Inlet Outside Diameter ORB-12
Outlet Type Female Thread
Outlet Outside Diameter ORB-10
Maximum Current Draw 16 @ 45 psi
Voltage 12
Negative Ground Yes
Wire Quantity 0
Wiring Harness Included No
Terminal Gender Male
Terminal Quantity 2
Terminal Type Threaded Stud
Strainer Included No
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included Yes
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance
Marine Approved No

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Limited Warranty for Aeromotive Products for the United States of America

Aeromotive, LLC warrant to the original end user purchaser in the United States that the Aeromotive and Waterman Racing Components branded products (“Product(s)”) shall be free from defects in material and workmanship for the warranty durations set forth in the chart below from the date of purchase or delivery, whichever is later.

 Products Warranty Duration
  • Aeromotive marine pumps
2 years
  • All other Aeromotive products
  • Waterman Racing Components products
1 year



Because Aeromotive, LLC (collectively, the “Company”) cannot control the quality of products sold by unauthorized sellers, this warranty applies only to Products that were purchased from the Company or the Company’s authorized sellers in the United States, unless otherwise prohibited by law. Company reserves the right to reject warranty claims for Products purchased from unauthorized sellers, including unauthorized Internet sites.

This warranty does not cover any defects due to normal wear and tear, damage due to misuse, alteration to the product, negligence, damage caused by aftermarket applied coatings, discoloration, or corrosion of finished surfaces. This warranty also does not cover damage resulting from collision, improper installation, off-road use, road hazards, the use of exhaust insulating wrap or like products, or rust occurring after installation.

Purchasers of a Product who wish to make a warranty claim based upon an alleged Product defect should email the Company at techs@aeromotiveinc.com the following information: (1) Product subject to the claim, (2) brief description of the alleged defect, (3) date and place of purchase/delivery, (4) proof of purchase (showing when and where the Product was purchased), and (5) pictures or videos of the Product. If you purchased on an online marketplace, please be sure the proof of purchase shows from whom you purchased (this information is available in your order history). In some instances, Company may instruct you to mail the Product to Company for inspection and/or repair; if such instruction is provided, Company will provide you with a prepaid shipping label. You can also contact the Company Monday – Friday, 8AM – 6:30PM CT at (913) 808-2376.

Company will replace or repair a defective Product that is covered by this warranty. This
warranty does not cover the cost of removal or installation. Company will pay for the return shipping of the Product to the purchaser.

There are no warranties which extend beyond those stated herein. ANY IMPLIED
WARRANTIES THAT MAY BE APPLICABLE TO PRODUCTS, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some States do not
allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

UNDER NO CIRCUMSTANCES SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF THIS LIMITED
WARRANTY, BREACH OF CONTRACT OR STRICT LIABILITY. Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

If you have any questions about whether a seller is authorized, please contact us at (913) 808-2376.

This warranty supersedes any warranties stated in product manuals or other written materials.

Effective Date: March 16, 2026

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Limits of Responsibility:

  • See Product Warranty page for more info.
