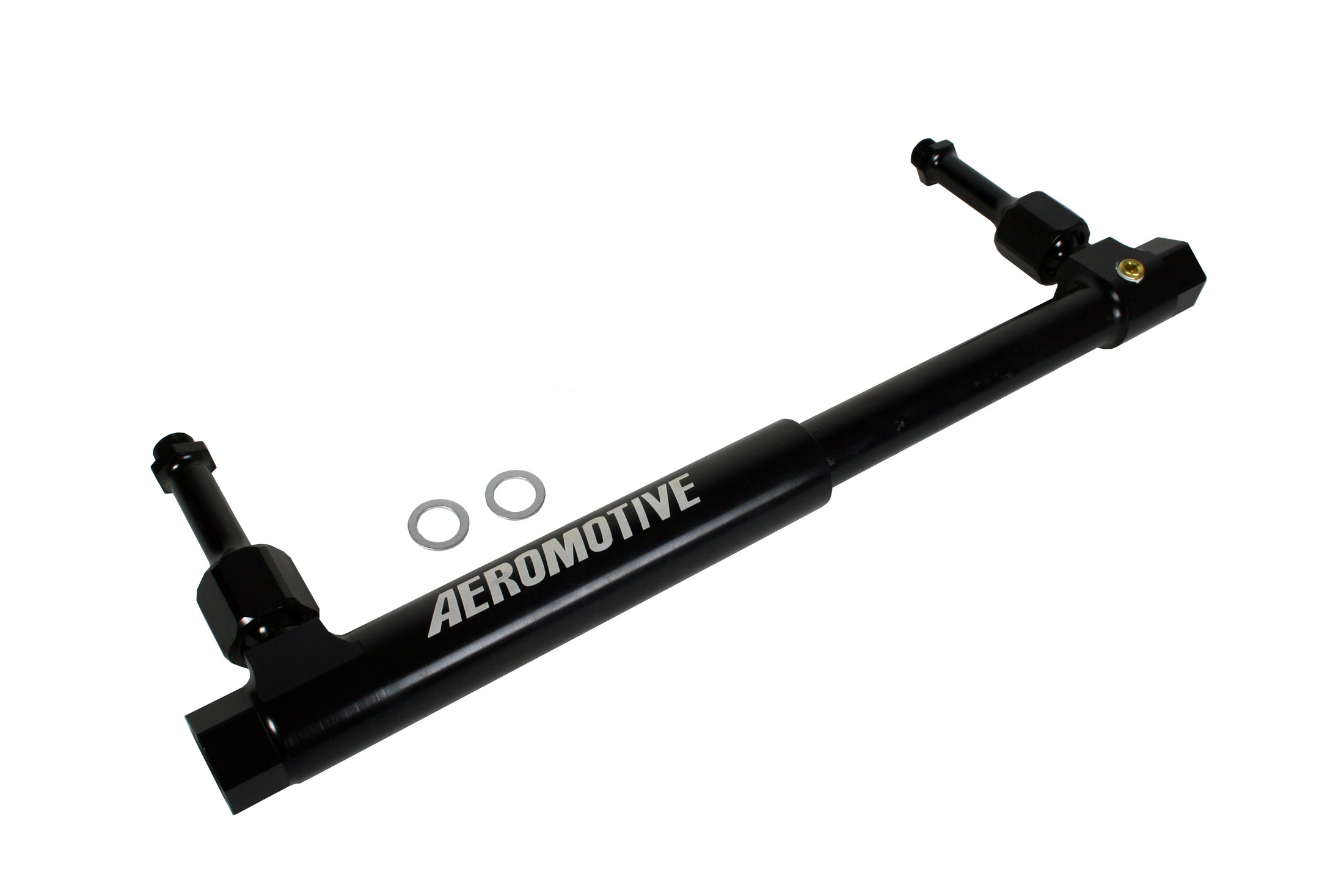

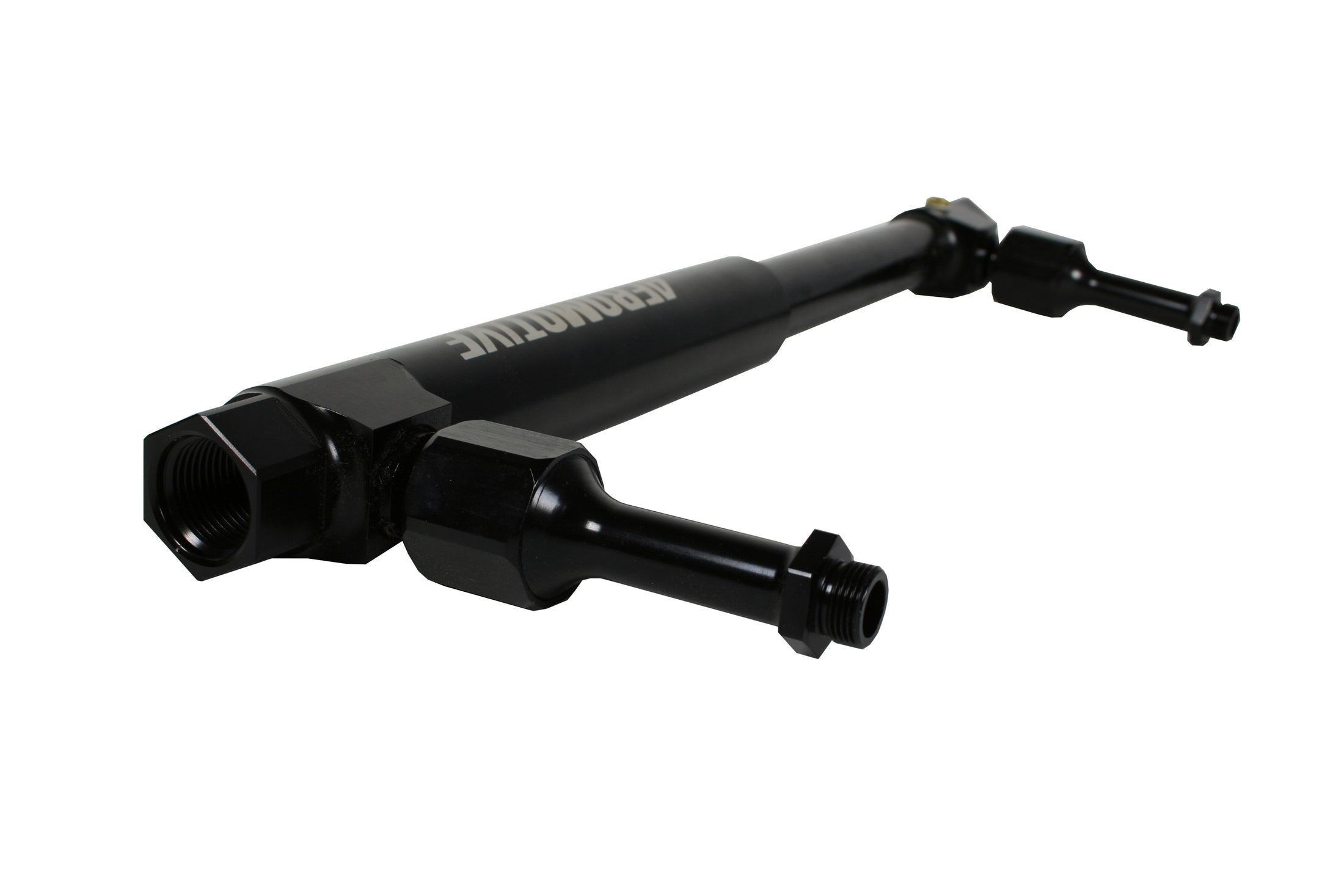

Dual Action Adjustable Fuel Log (Demon Style)


P/N: 14202 Dual Action Carburetor Fuel Log

  • Engineered for Carbs like the Demon with ORB-06 fine or 9/16″ – 24 with o-ring float bowls.
  • Slip style length adjustment allows fitment to both 4150 and 4500 style carburetors.
  • Ball and Socket adjustment permits the log to be manipulated vertically for better clearance.

View Installation Instructions

For stand-off conversion to other carburetor applications:

  • P/N 14001 Standard Holley Style 7/8″ – 20 bowls.
  • P/N 14003 Ultra HP Style 3/4″ – 16 bowls.

For rebuild/reseal kit see:

  • P/N 14001


Billet, double adjustable, carburetor fuel logs for superior fitment. The advantage of a company that understands engineering, design, and manufacturing, is peace of mind. When you buy a fuel log from Aeromotive, you can be assured they will fit and deliver as promised.

  • Threaded with 9/16″ – 24 ORB (o-ring boss) for proper sealing on carburetors like the Holley Ultra-HP and those with similar float bowls.
  • Carburetor inlets swivel + or – 20 degrees in all directions for optimum clearance from valve cover and intake runners.
  • Telescoping center line is 7.700″ to 13.450″ adapts to standard and high capacity float bowls.
  • ORB-10 inlet and outlet ports can be adapted from AN-12 to AN-06 with available Aeromotive ORB port fittings.
  • Two 1/8″ NPT ports for gauges and/or pressure transducers.
  • 1.056/.806″ ID bore for high flow capacity.
  • Type II bright-dip black anodized finish for durability and great looks.

Additional information

Weight1.48 lbs
Dimensions18 × 6.75 × 1.5 in

Mounting Configuration:

CARB or EFIPower AdderFUELHorsepower
