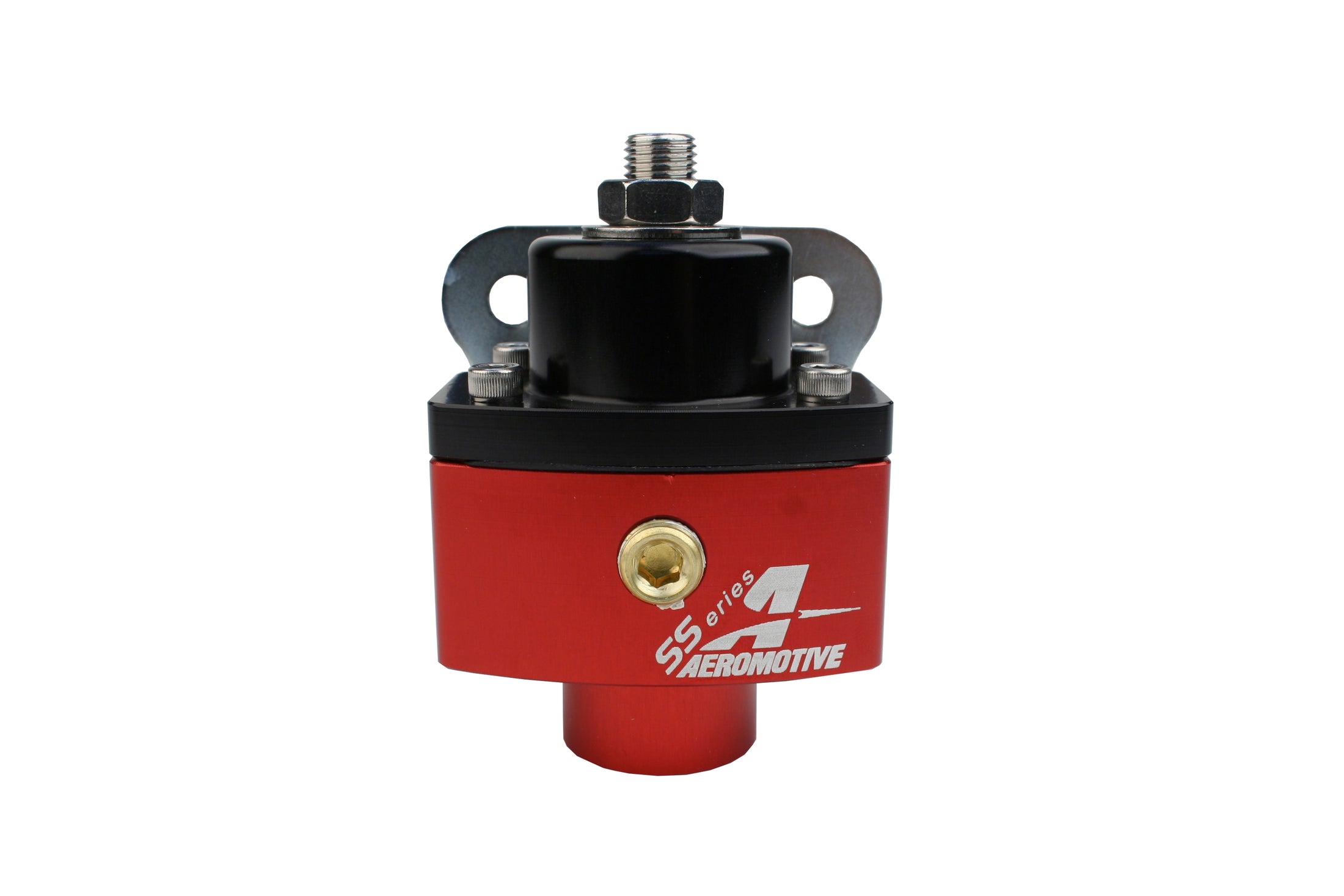

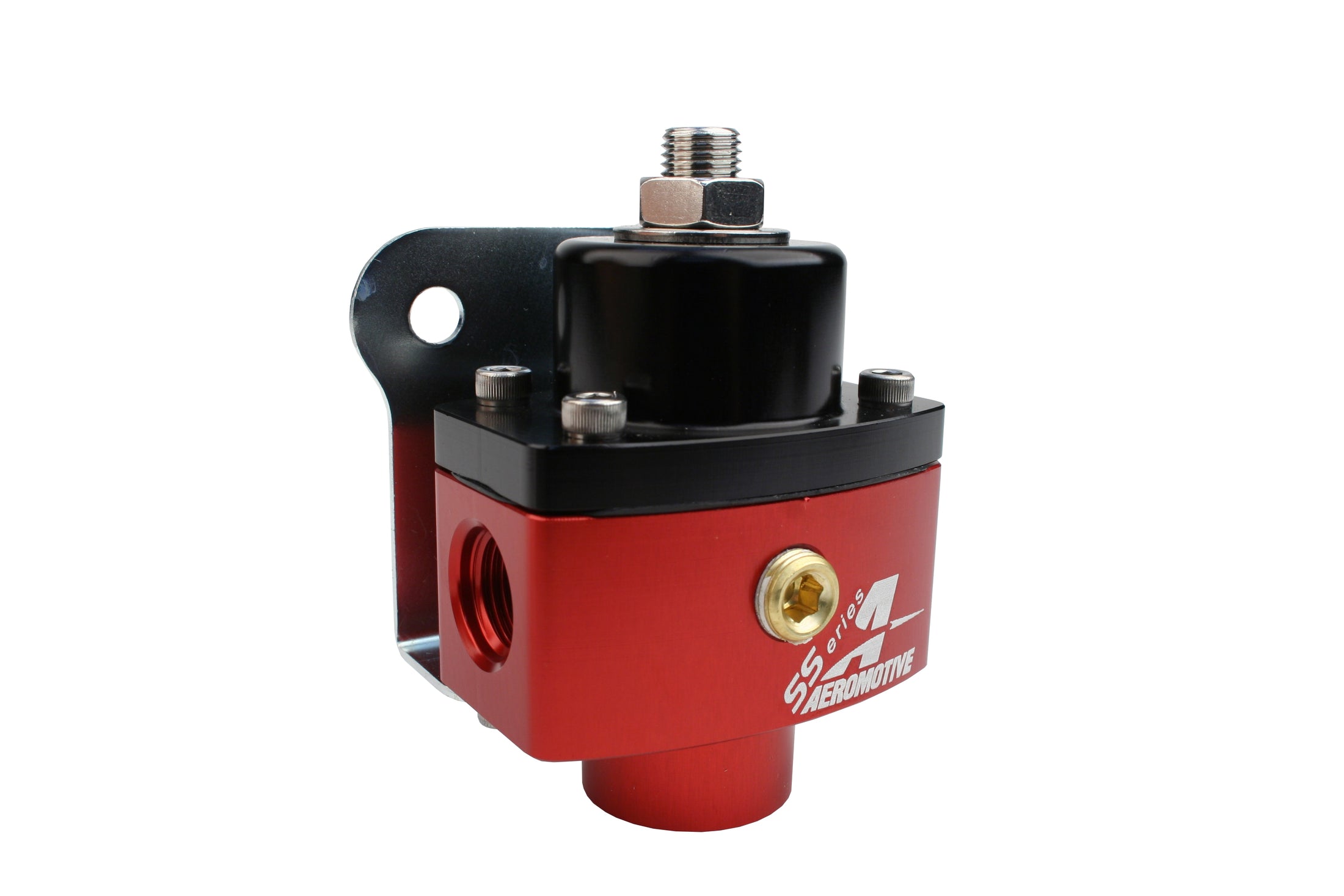

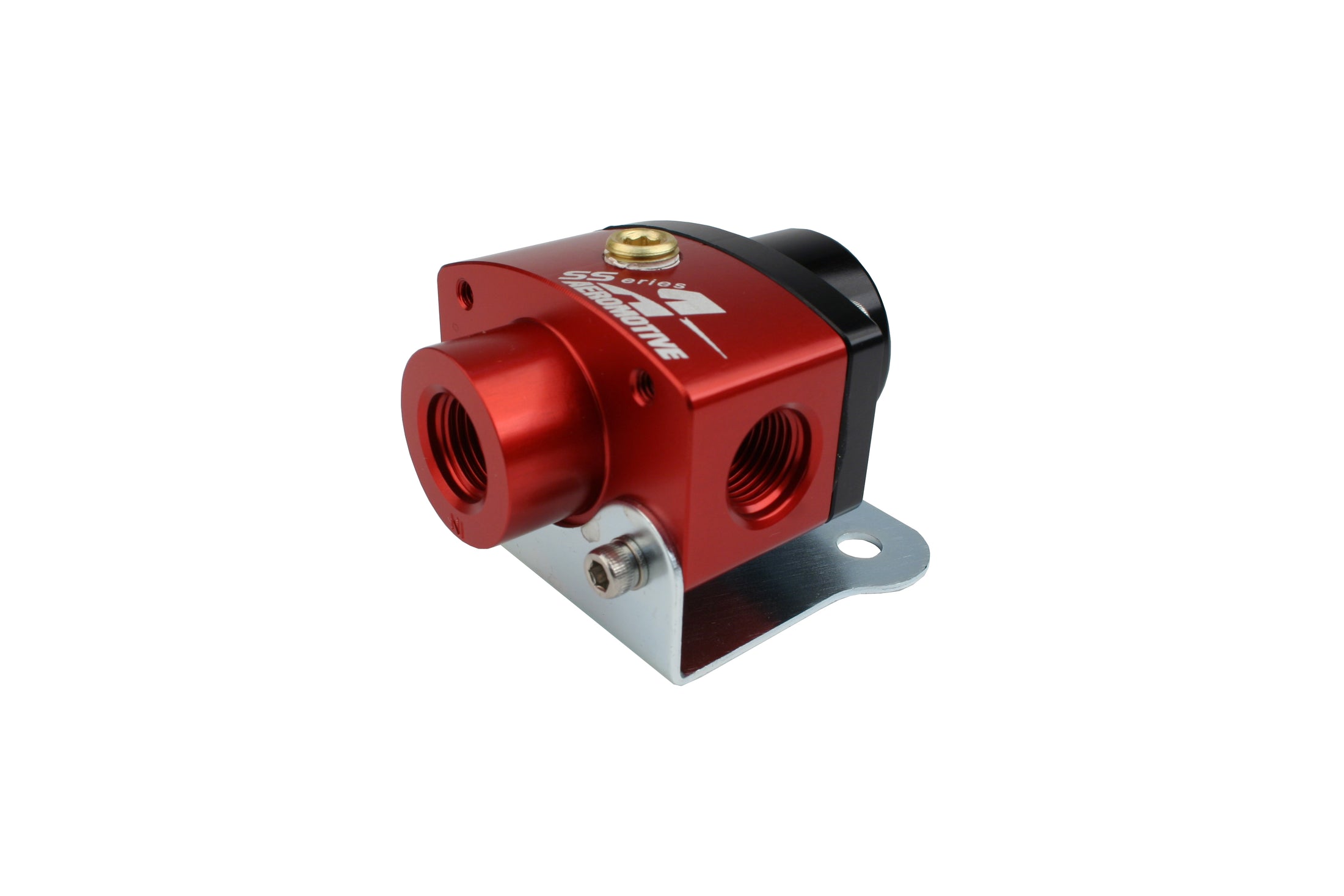

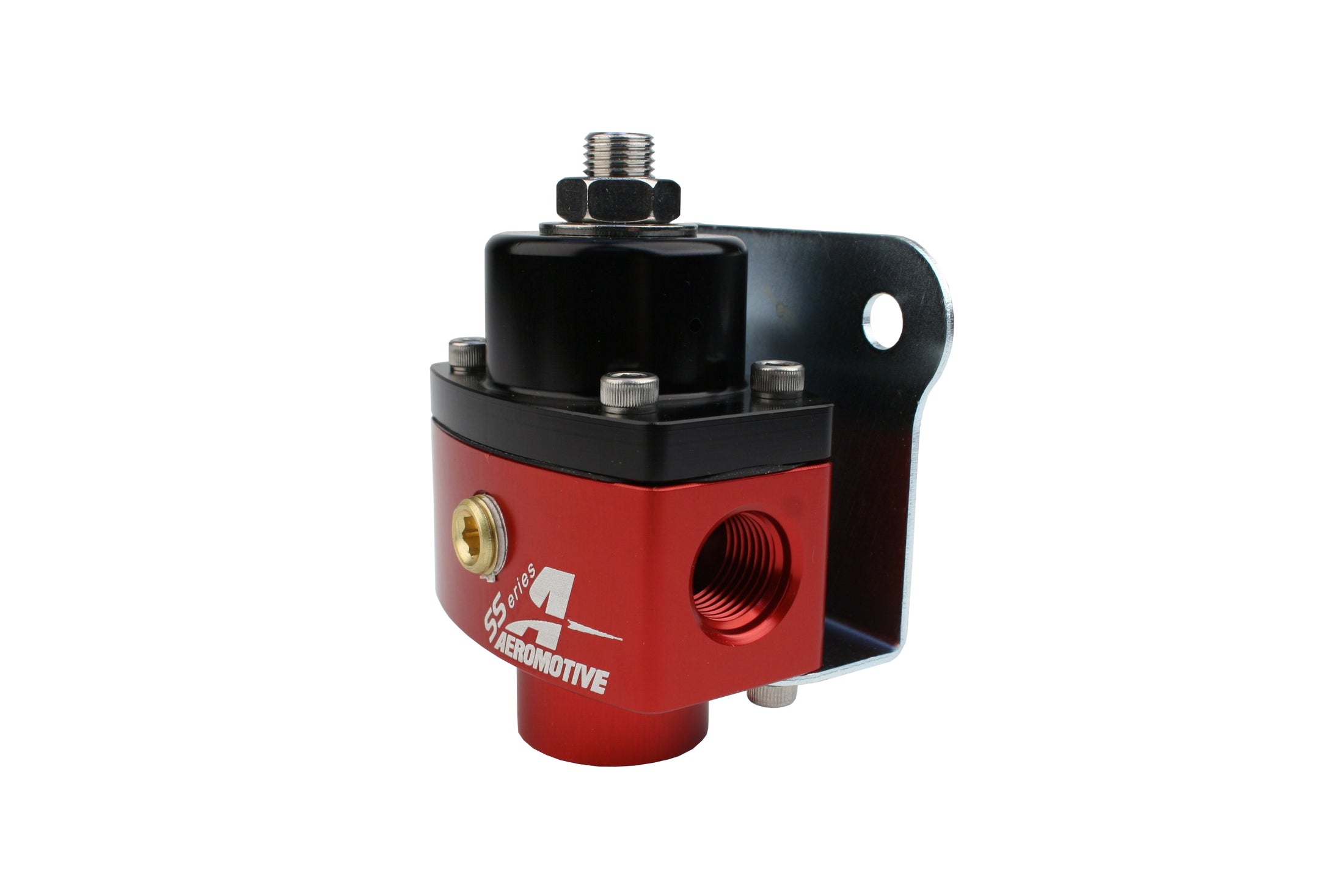

SS-Series ORB-06 Carburetor Fuel Pressure Regulator

Part Number: 13201

Product Info

P/N 13201 SS-Series ORB-06 Carb Regulator
Dead-Head Regulator for up to 750 FWHP on gas.

Specifically designed for carbureted street or racing engines on gasoline, the SS-Series adjustable regulator offers higher flow, quicker response and less pressure creep than competing two-port designs. Popular in circle track applications up to and including NASCAR® level horsepower and as a dedicated nitrous regulator. Not rated for alcohol fuels, ethanol or methanol.

Adjustable from 5-10 PSI.

P/N 13201 provides ORB-06 inlet and outlet ports.

Dedicated 1/8' NPT gauge port.

Regulator re-seats when the needle and seat closes, preventing pressure creep.

Mounting bracket included.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Not rated for alcohol fuels, ethanol or methanol.

Available in kit form with port fittings, braided line and hose ends for Holley style Carbs under P/N 17120.

Fitting only kits available:

P/N 15108 : 3x ORB-06 to AN-06 port fittings.

P/N 15203 : 3x ORB-06 to AN-08 port fittings.

Additional information

Specifically designed for carbureted street or racing engines on gasoline, the SS-Series adjustable regulator offers higher flow, quicker response and less pressure creep than competing two-port designs. Popular in circle track applications up to and including NASCAR® level horsepower and as a dedicated nitrous regulator.

Adjustable from 5-10 PSI.

P/N 13201 provides ORB-06 inlet and outlet ports.

1/8' NPT gauge port.

Regulator re-seats when the needle and seat closes, preventing pressure creep.

Includes mounting bracket

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Not rated for alcohol fuels, ethanol or methanol.

Specifications

Pressure Range	5-10 PSI
Adjustable	Yes
Minimum Pressure	5 PSI
Maximum Pressure	10 PSI
Mounting Bracket Included	Yes
Port Quantity	3
Inlet Port Diameter	ORB-06
Inlet Gender	Female
Gauge Included	No
Color	Black/Red
Grade Type	Performance

Regulator Service Kits

Carbureted Regulator Service Kit

Part Number: 13005

$25.95

Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

Warranty: 1 year from purchase date with proof.
Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

Accepted within 90 days of purchase.
Prior authorization required; items must be new and resaleable.
Call 913-808-2376 to initiate a return and get an RGA.
Ship unused products in original packaging with proof of purchase.
You pay return shipping; use a trackable method.
Refund excludes initial shipping fees and may include up to a 15% restocking fee.
Refunds processed within 5-10 days of return acceptance.

Defective Items:

Call 913-808-2376 (Returns and Repairs) for assistance.
Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

See Product Warranty page for more info.

Price/Description Changes:

Prices, pictures, and descriptions may change.
Report discrepancies within 30 days.
No refunds for price differences on past or future orders.

Promotions:

Discount codes apply to web store orders only.
Not valid on previous orders or outside promotion dates.

Reviews

SS-Series ORB-06 Carburetor Fuel Pressure Regulator

Part Number: 13201

Product variants

$133.95

Part Number: 13201

Does This part fit My vehicle?

QTY

1 Year Warranty 90 Days Return Policy

View full details

Product Info

Adjustable from 5-10 PSI.

P/N 13201 provides ORB-06 inlet and outlet ports.

Dedicated 1/8' NPT gauge port.

Regulator re-seats when the needle and seat closes, preventing pressure creep.

Mounting bracket included.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Not rated for alcohol fuels, ethanol or methanol.

Available in kit form with port fittings, braided line and hose ends for Holley style Carbs under P/N 17120.

Fitting only kits available:

P/N 15108 : 3x ORB-06 to AN-06 port fittings.

P/N 15203 : 3x ORB-06 to AN-08 port fittings.

Additional information

Adjustable from 5-10 PSI.

P/N 13201 provides ORB-06 inlet and outlet ports.

1/8' NPT gauge port.

Regulator re-seats when the needle and seat closes, preventing pressure creep.

Includes mounting bracket

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Not rated for alcohol fuels, ethanol or methanol.

Specifications

Pressure Range	5-10 PSI
Adjustable	Yes
Minimum Pressure	5 PSI
Maximum Pressure	10 PSI
Mounting Bracket Included	Yes
Port Quantity	3
Inlet Port Diameter	ORB-06
Inlet Gender	Female
Gauge Included	No
Color	Black/Red
Grade Type	Performance
