Brushless In-Line 5.0 Spur Gear Pump with Variable Speed Controller

$1,410.86

P/N 11192: Brushless In-Line 5.0 Spur Gear Pump w/ Variable Speed Controller

  • Supports
    • Fuel injected engines:
      up to 3400 FWHP – naturally aspirated
      up to 2600 FWHP – forced air induction
    • Carbureted engines:
      Up to 3600 FWHP – naturally aspirated
      Up to 2700 FWHP – forced air induction
  • E85 Compatible, reduce max FWHP by 30%
  • Lighter than the traditional external mount pumps.
  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.
  • New integral spur-gear pumping mechanism.
  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
  • ORB-12 inlet and ORB-10 outlet ports.
  • Requires straight 12-VDC to 16-VDC power supply.
  • Not compatible with pulse modulated systems or fuel pump speed controllers.

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts

View Installation Instructions

Also Available as a Drop-In Stealth Module and in Complete Stealth Fuel Cells. Click Here for More Info

SKU: 11192 Category:

Description

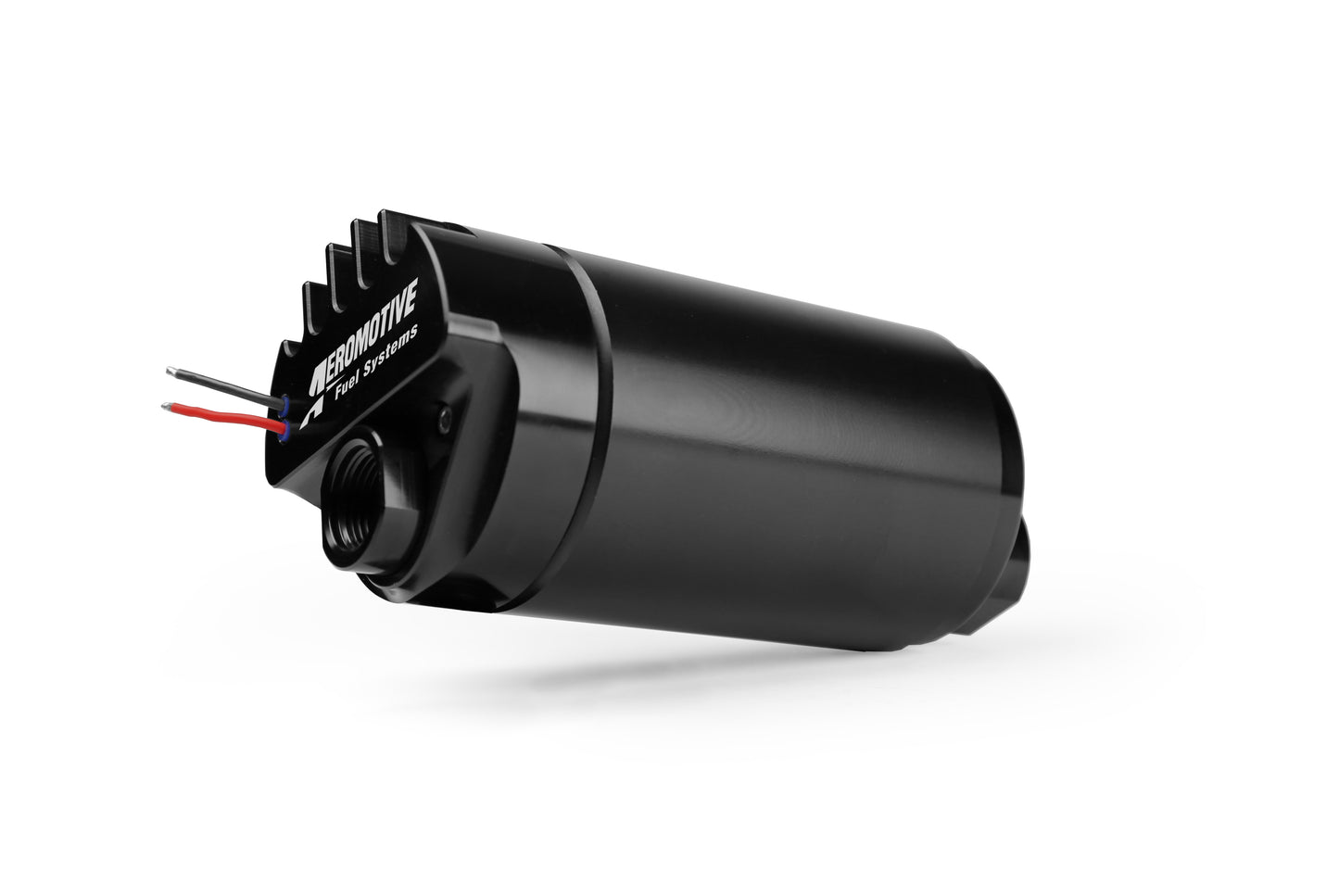

Image is not an accurate representation of this product.

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Additional information

Weight6 lbs
Dimensions9.5 × 4.5 × 4.5 in

Mounting Configuration: External

CARB or EFIPower AdderFUELHorsepower
