Billet Belt Drive Fuel Pump

$649.50

-

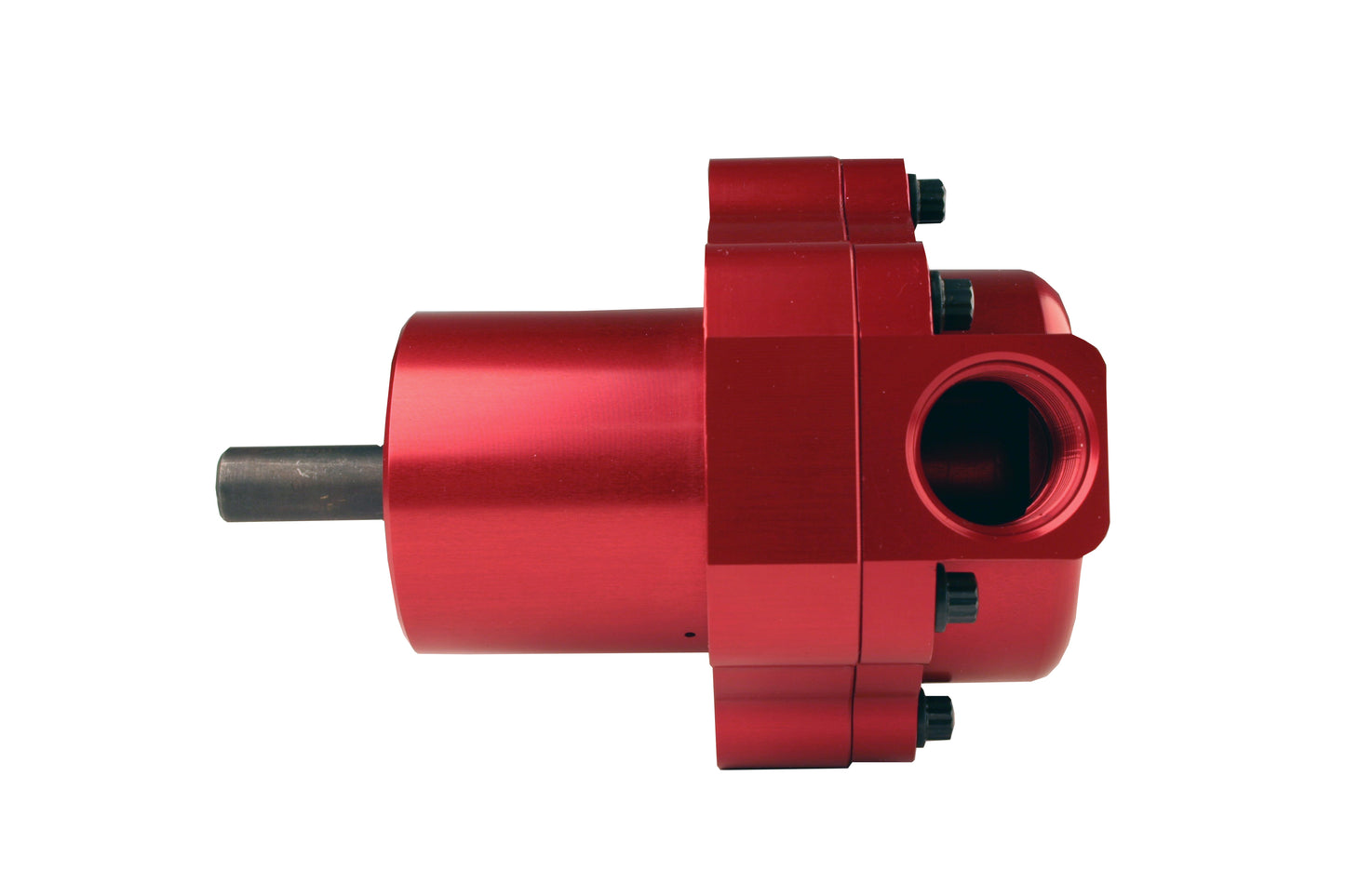

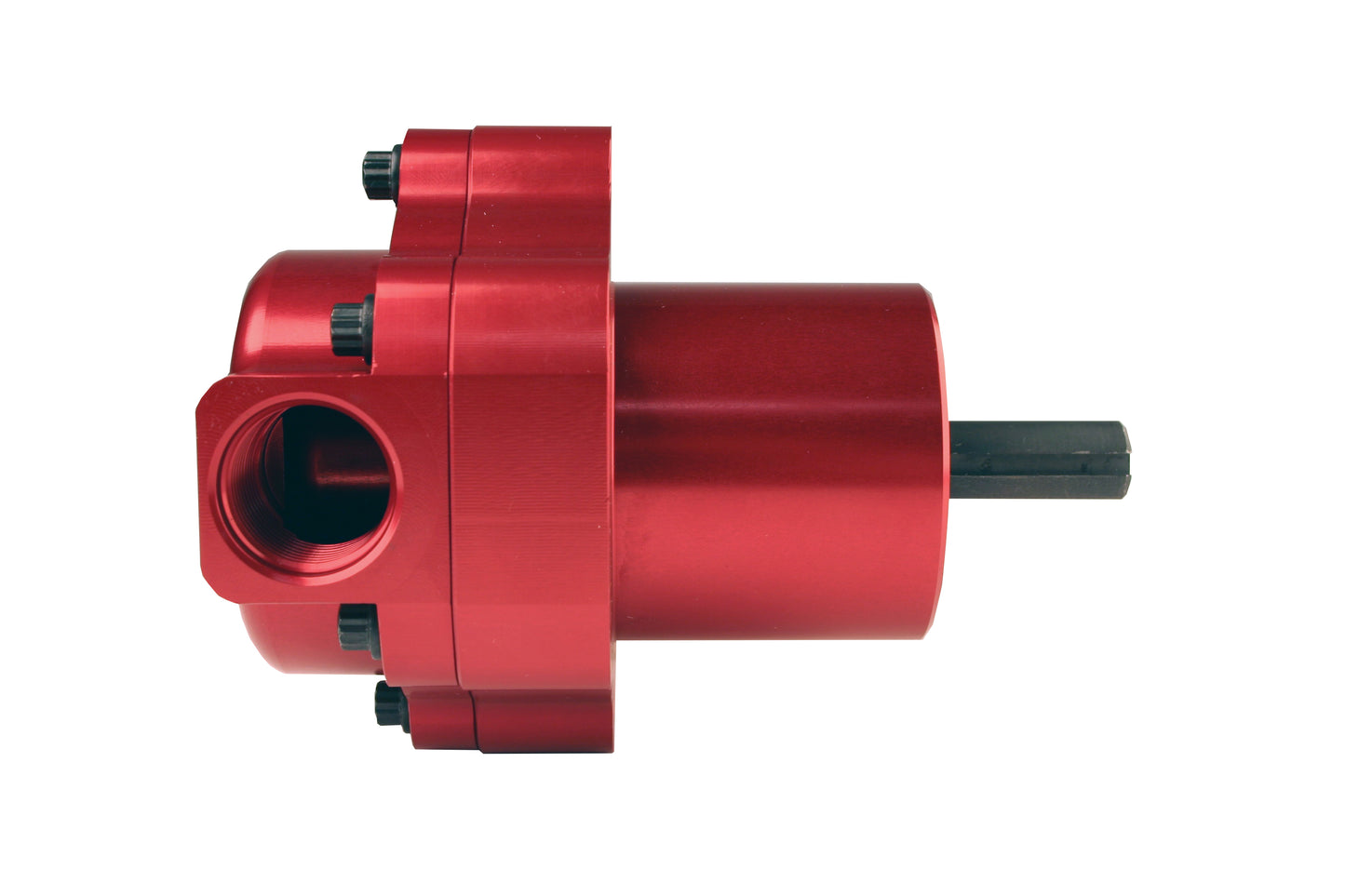

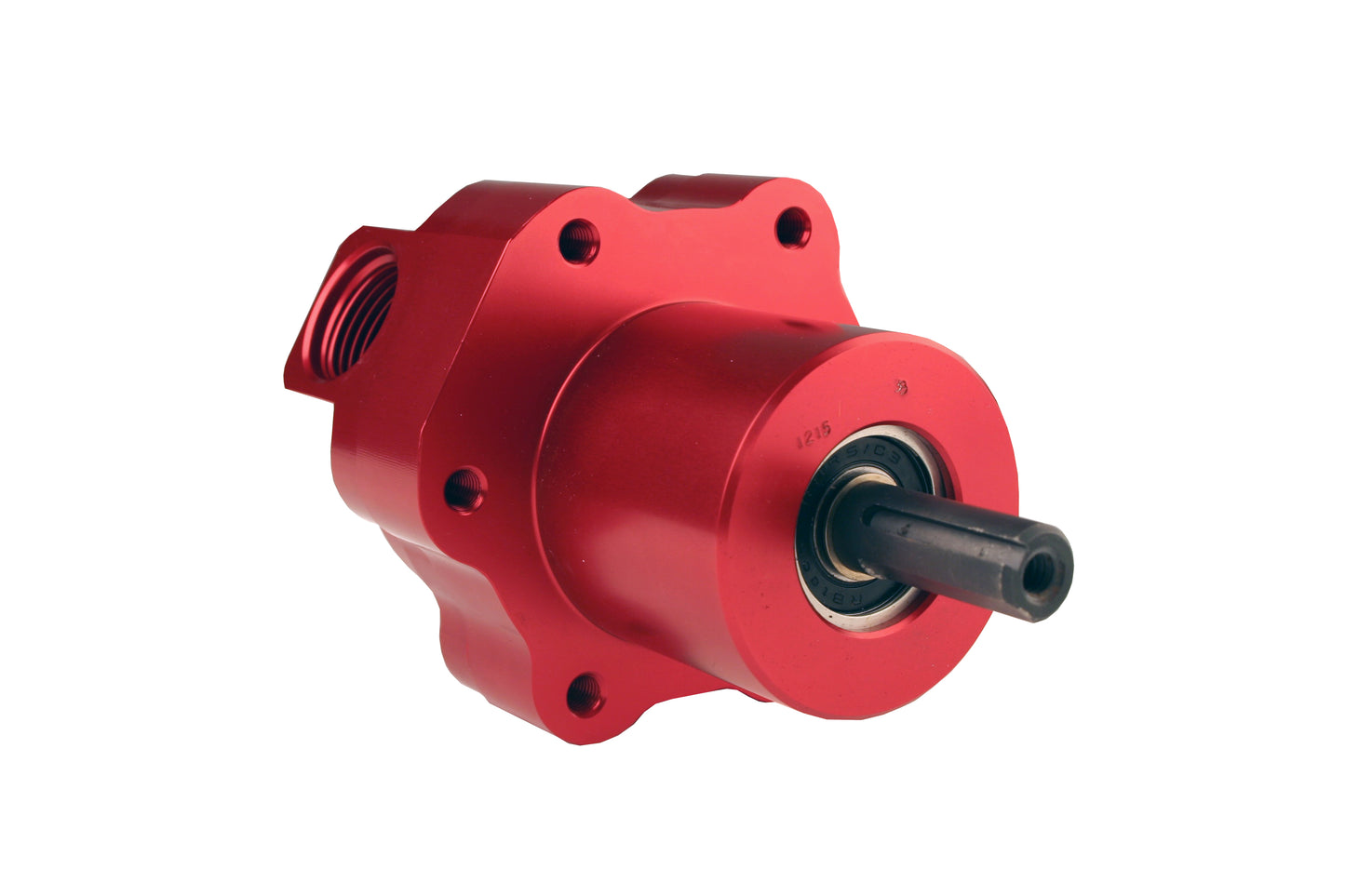

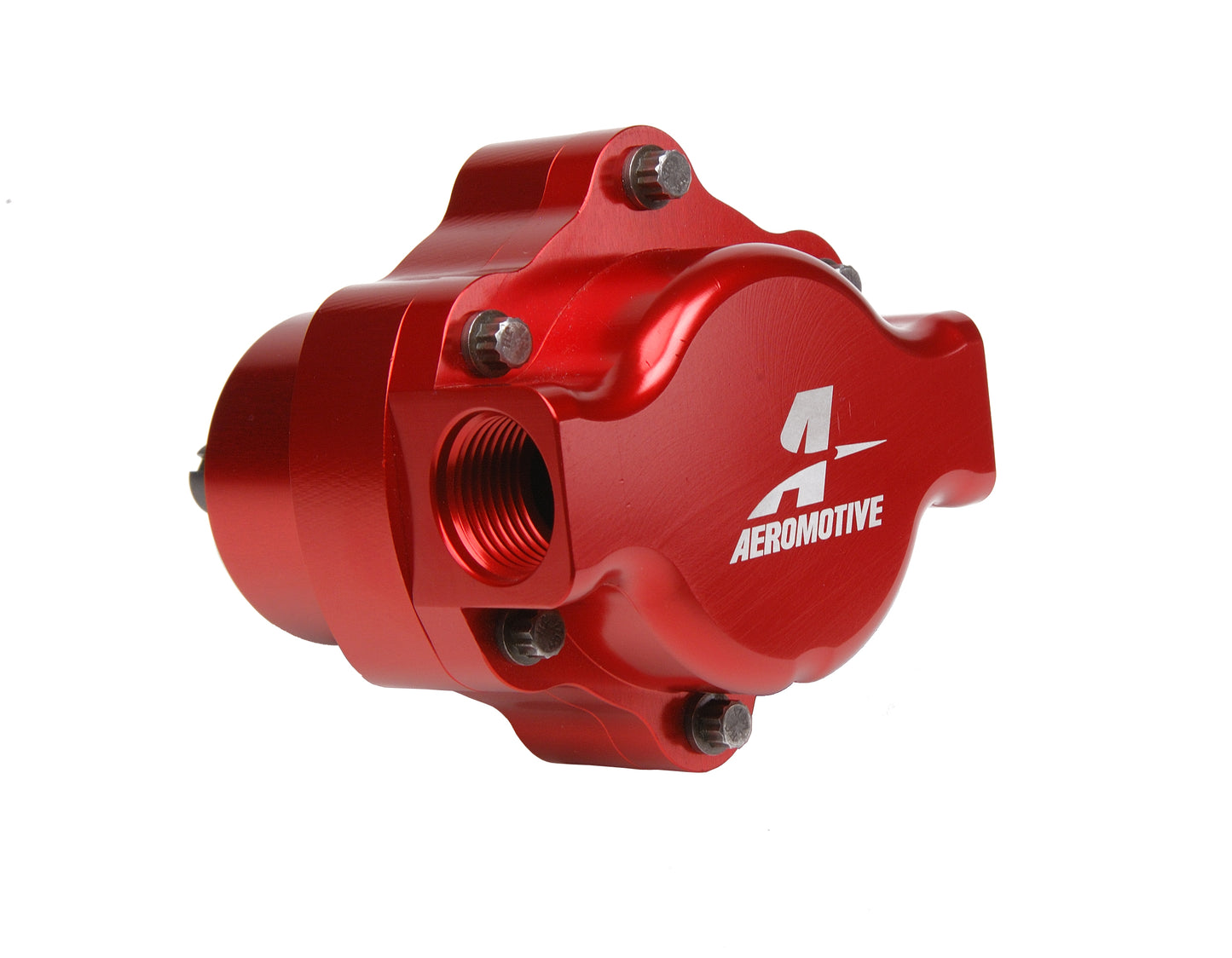

P/N 11105: Billet Belt Drive Fuel Pump

Zero amperage draw, less weight, and more flow!
The Aeromotive Billet Belt Drive Fuel Pump was designed to solve fuel delivery problems in high horsepower, forced-induction EFI applications, as well as the now popular, carbureted applications on gas or methanol.

  • Proven performance, powering some of the world’s fastest EFI vehicles.
  • Carbureted, Naturally Aspirated Supports up to 3,900 HP gas, 2,700 E85, 1,350 HP methanol.
  • Fuel Injected, Forced Induction Supports up to 3,000 HP on gas, 2,100 E85, 1,050 HP methanol.
  • Compact size facilitates easy mounting.
  • Billet aluminum CNC-machined body, not ‘cast’.
  • ORB-10 inlet and outlet ports.
  • For EFI applications use regulator P/N 13113.
  • Carbureted gasoline applications require regulator P/N 13202 or P/N 13212.
  • Alcohol applications require Double Adjustable Regulator P/N 13209 or 13214.
  • Bracket and Cog Pulley sold separately. (see Accessories)
  • Available as a kit (P/N 17140) includes: Pump, Bracket and Pump Pulley.Note: Electric Priming Kit available – P/N 17301 (see Accessories)View Installation Instructions
SKU: 11105 Categories: , Tag:

Description

Zero amperage draw, less weight, and more flow! The Aeromotive Billet Belt Drive Fuel Pump was designed to solve fuel delivery problems in high horsepower, forced-induction EFI applications, as well as the now popular, carbureted applications on gas or methanol.

  • Proven performance, powering some of the world’s fastest EFI vehicles.
  • Carbureted, Naturally Aspirated Supports up to 3,900 HP gas, 2,700 E85, 1,350 HP methanol.
  • Fuel Injected, Forced Induction Supports up to 3,000 HP on gas, 2,100 E85, 1,050 HP methanol.
  • Compact size facilitates easy mounting.
  • Billet aluminum CNC-machined body, not ‘cast’.
  • This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
  • ORB-10 inlet and outlet ports.
  • For EFI applications use regulator P/N 13113.
  • Carbureted gasoline applications require regulator P/N 13202 or P/N 13212.
  • Alcohol applications require Double Adjustable Regulator P/N 13209 or 13214.
  • Bracket and Cog Pulley sold separately. (see Accessories)
  • Available as a kit (P/N 17140) includes: Pump, Bracket and Pump Pulley. Note: Electric Priming Kit available – P/N 17301 (see Accessories) View Installation Instructions

Additional information

Weight 3.5 lbs

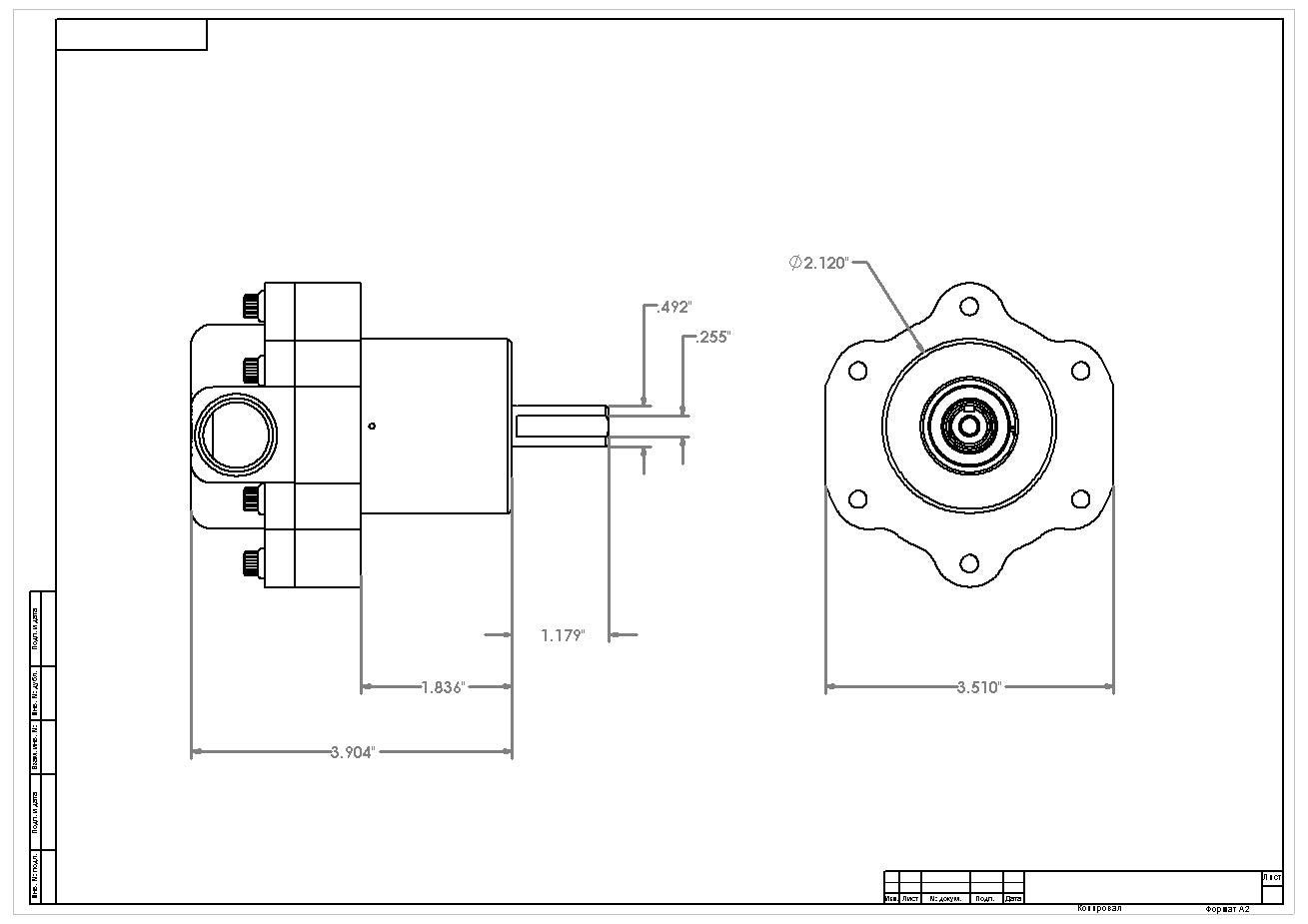

Dimensions 8.25 × 7 × 6.5 in

Mounting Configuration: External

CARB or EFI Power Adder FUEL Horsepower
