AN-12 Outlet Port Adapter 12-Series Mechanical Pumps

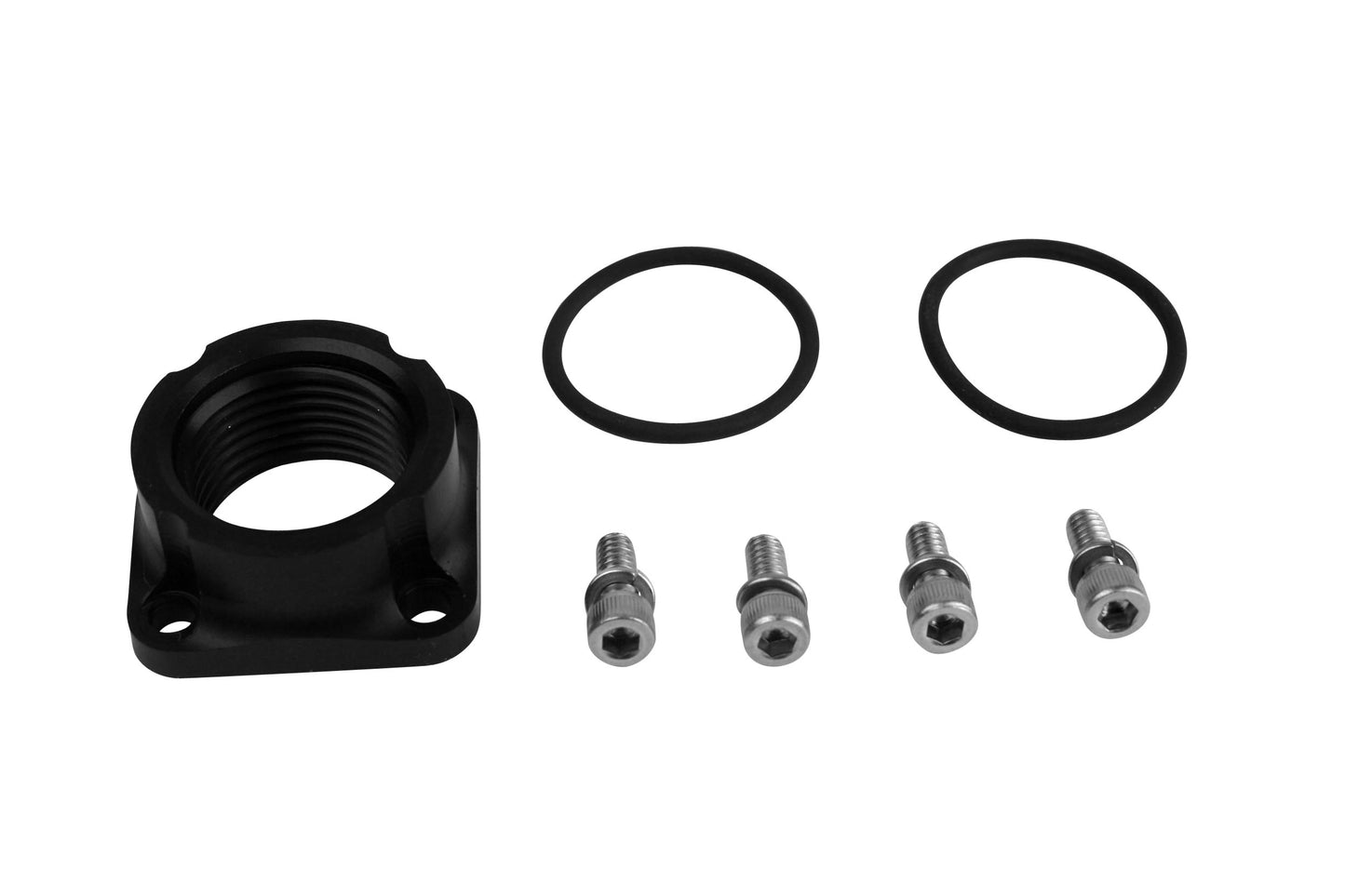

P/N 11746 ORB-12 High Flow Outlet Port Adapter
Designed for the outlet of Aeromotive 12-Series Pumps

  • Bolt-on outlet port fitting ORB-12
  • Accepts ORB-12 to AN-12 port fitting P/N 15612.
  • Accepts ORB-12 to AN-10 port fitting P/N 15613.
  • Do NOT use as inlet adapter for 12-Series Pumps.

Suitable inlet adapters for the 12-Series pumps include either AN-16 or 1 – 1/4″ Bib/Barb style connections.

AN-16 male flare inlet adapter P/N 11747
1 – 1/4″ bib/barb inlet adapter P/N 11748


High Flow Outlet (Pressure) Port Adapter for use on the 12-Series fuel pump outlet port.

Not for use on the suction side of any 12-Series Mechanical Pump, P/N’s 11115 or 11117.

For the 12-Series pump inlet adapters use nothing smaller than AN-16 or 1-1/4″ Bib/Barb.

AN-16 inlet adapter P/N 11747

1-1/4″ Bib/Barb inlet adapter P/N 11748

Additional information

Weight 0.13 lbs
Dimensions 5.63 × 2.88 × 2 in

Mounting Configuration: External

CARB or EFI Power Adder FUEL Horsepower
