Marine 10m Microglass, Outlet ORB-10 Fuel Filter

Marine 10m Microglass, Outlet ORB-10 Fuel Filter

Part Number: 12346

Product Info

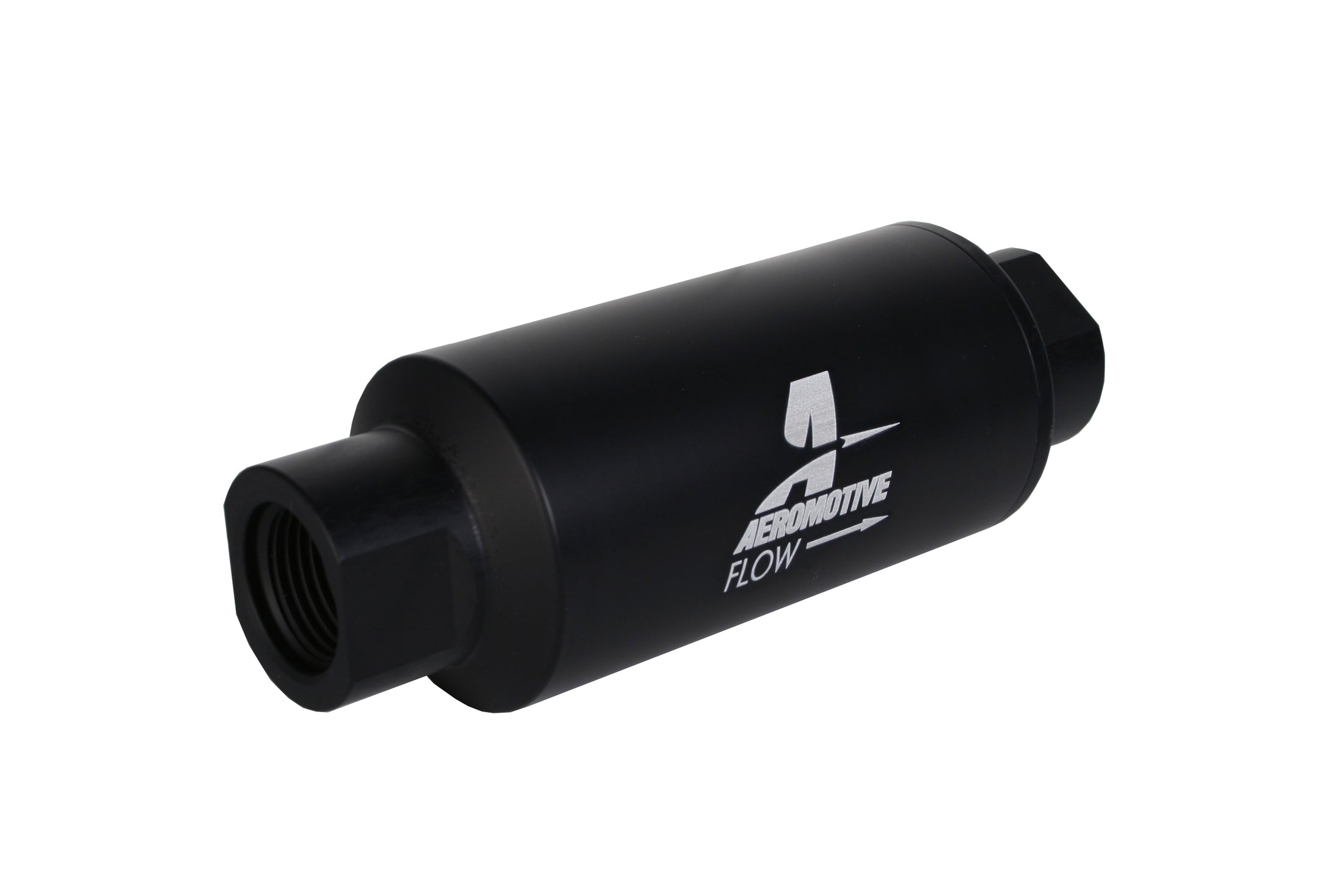

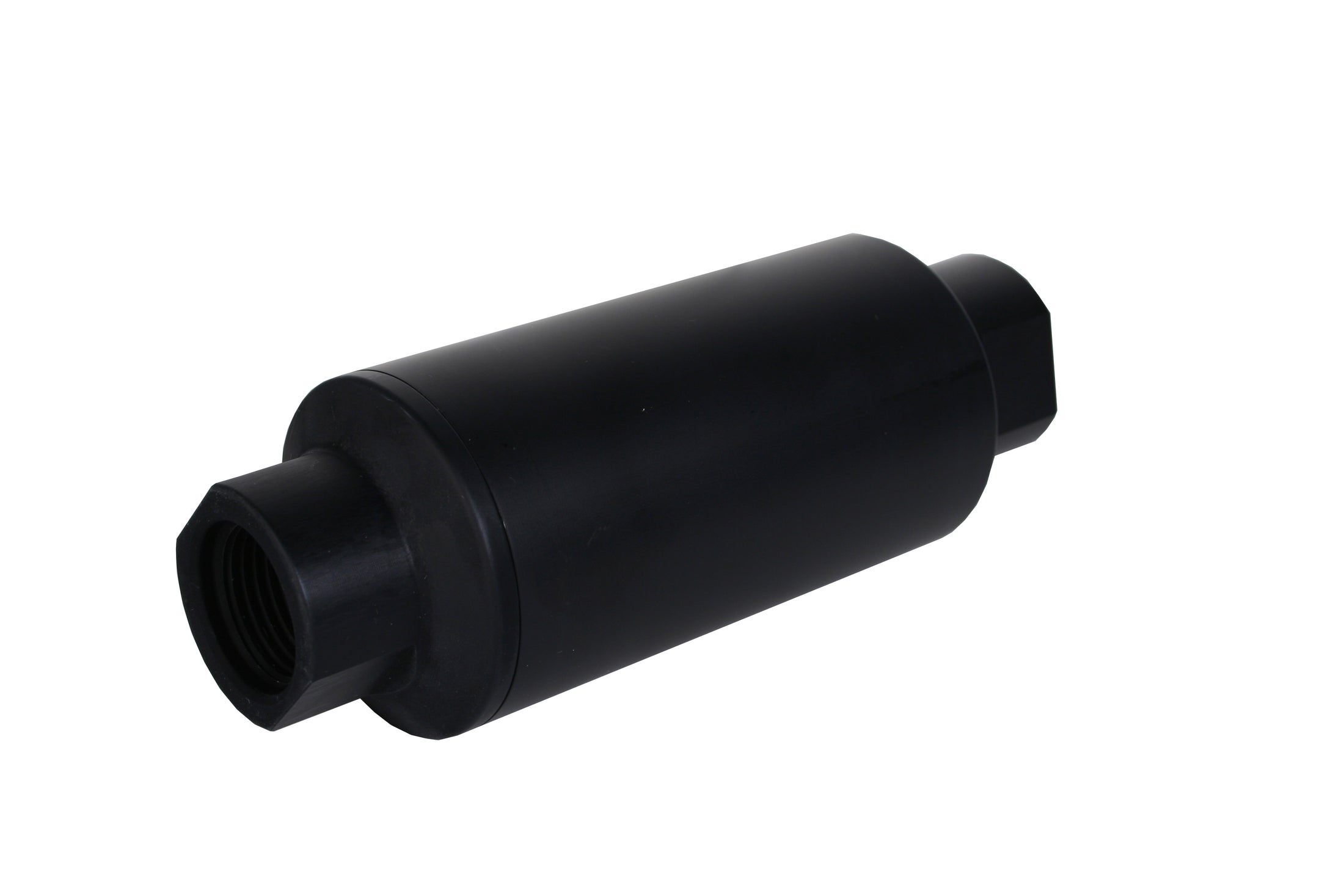

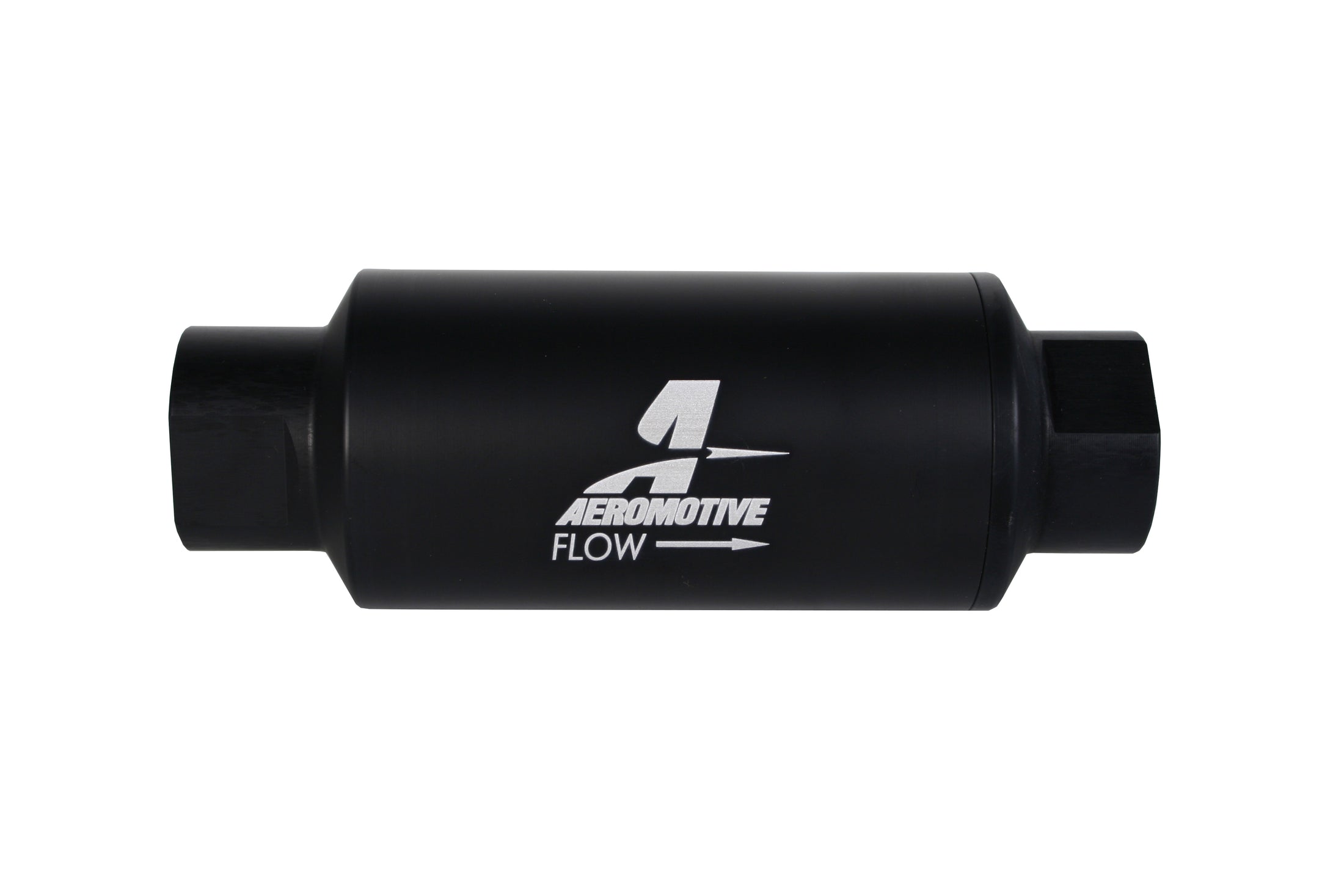

P/N 12346 10-m Microglass Filter Assembly
ORB-10 ports with durable Hard-Coat Black Finish

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.

  • High-flow, 10-micron Microglass (fine) replaceable element.

  • Compatible with gasoline and alcohol fuels.

  • Impervious to water contamination.

  • Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. (see Fittings & Adapters)

  • Compact size: 5.5' long x 2' diameter


10 Micron Microglass Element ORB-10 - 12650

For additional information on this product, see Filter P/N 12340

Specifications
Fuel Filter Style Inline
Fuel Type All Fuels
Fuel Type E85/Alcohol
Inlet Quantity 1
Inlet Size AN-10
Inlet Attachment Male Thread
Inlet Outside Diameter AN-10
Outlet Quantity 1
Outlet Size AN-10
Outlet Attachment Male Thread
Outlet Outside Diameter AN-10
End 1 Gender Male
End 2 Gender Male
Fitting Type AN-10
Fittings Included No
Filter Element Included Yes
Filter Element Material Microglass
Micron Rating 10
Smallest Particle Filtered 10 microns
Flow Rate 2000 Pounds Per Hour
Filter Housing Color Black
Filter Housing Finish Anodized
Filter Housing Diameter 2.0 Inches
Filter Housing Length 5.5 Inches
Filter Housing Material Billet Aluminum
Mounting Type External
Mounting Bracket Included No
Clamps Included No
Gasket Or Seal Included Yes
Maximum Fuel Pressure (psi) 70 PSI
Universal Or Specific Fit Universal

filter replacement element
  • 10 Micro Replacement Microglass Element for ORB-10 Filter Housings

    10 Micro Replacement Microglass Element for ORB-10 Filter Housings

    10 Micro Replacement Microglass Element for ORB-10 Filter Housings

    Part Number: 12650
    $61.95
    $61.95
  • 2" Filter Body 10-pack Replacement O-Rings

    2" Filter Body 10-pack Replacement O-Rings

    2" Filter Body 10-pack Replacement O-Rings

    Part Number: 12001
    $11.95
    $11.95

    • Product warranty

    Retail Purchasers:

    • Warranty: 1 year from purchase date with proof.
    • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
    • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
    • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

    Distributors:

    • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
    • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

    Returns & replacements

    Returns:

    • Accepted within 90 days of purchase.
    • Prior authorization required; items must be new and resaleable.
    • Call 913-808-2376 to initiate a return and get an RGA.
    • Ship unused products in original packaging with proof of purchase.
    • You pay return shipping; use a trackable method.
    • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
    • Refunds processed within 5-10 days of return acceptance.

    Defective Items:

    • Call 913-808-2376 (Returns and Repairs) for assistance.
    • Follow RGA/Warranty protocol for refunds or replacements.

    Limits of Responsibility:

    • See Product Warranty page for more info.

    Price/Description Changes:

    • Prices, pictures, and descriptions may change.
    • Report discrepancies within 30 days.
    • No refunds for price differences on past or future orders.

    Promotions:

    • Discount codes apply to web store orders only.
    • Not valid on previous orders or outside promotion dates.
