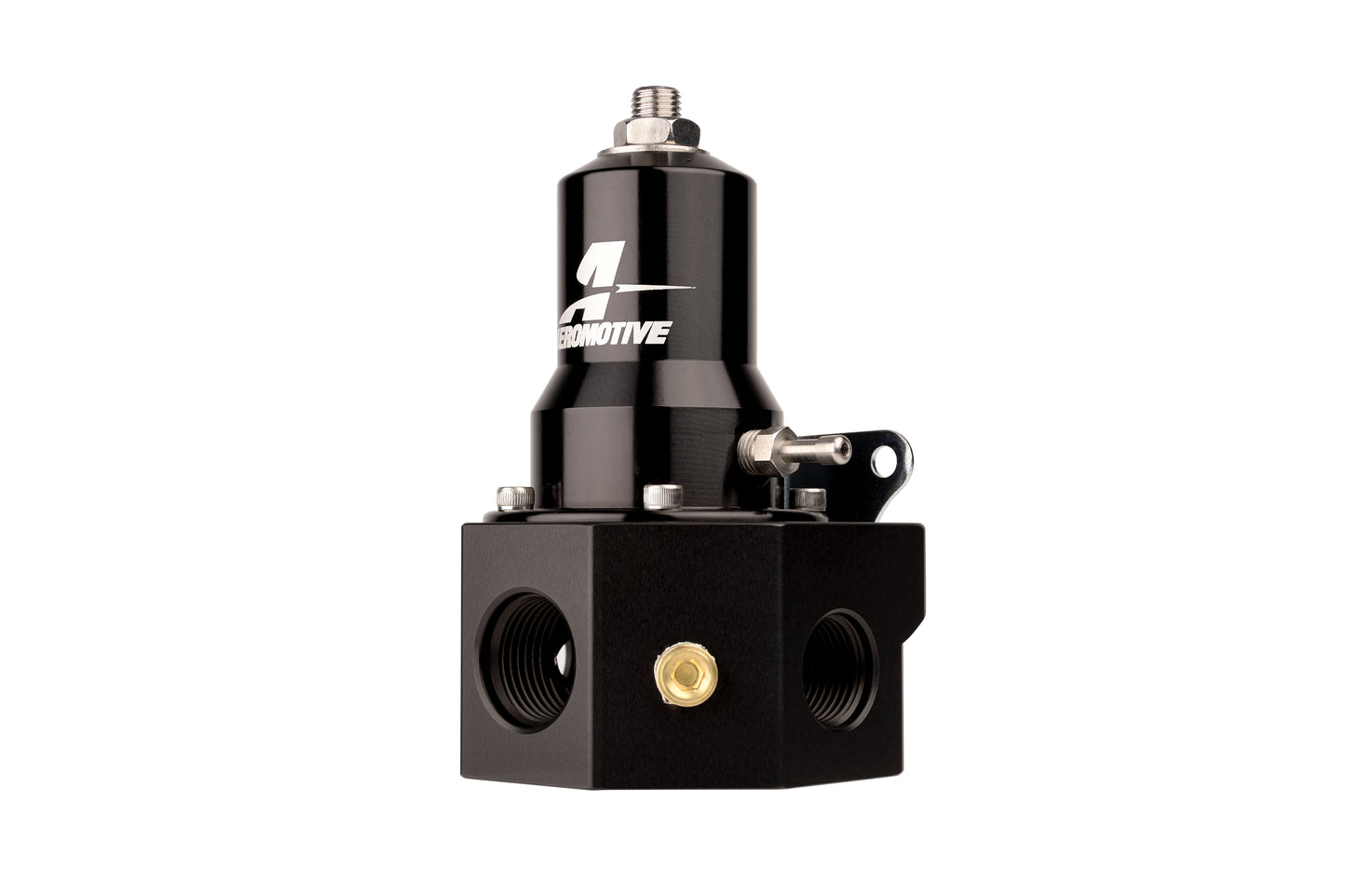

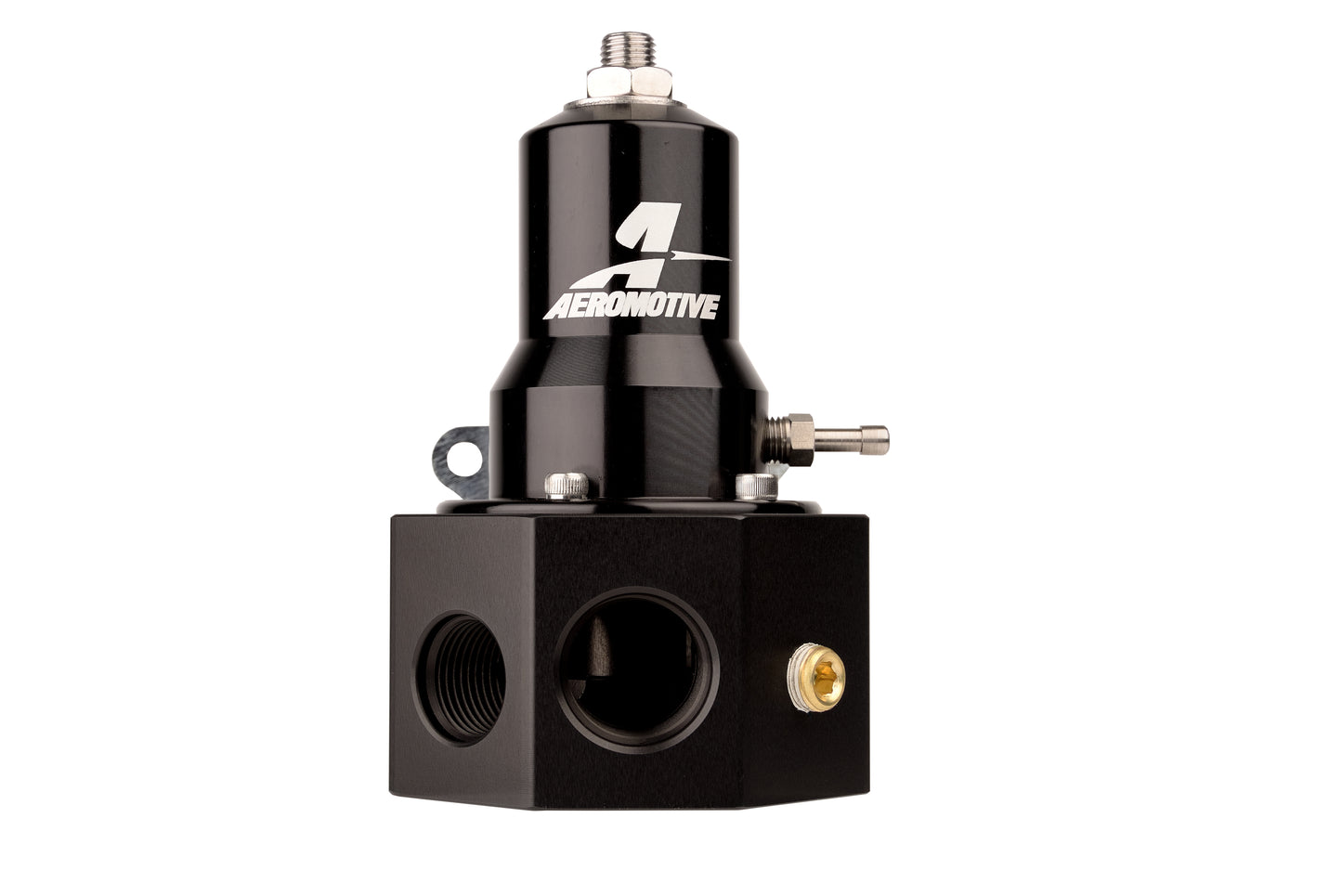

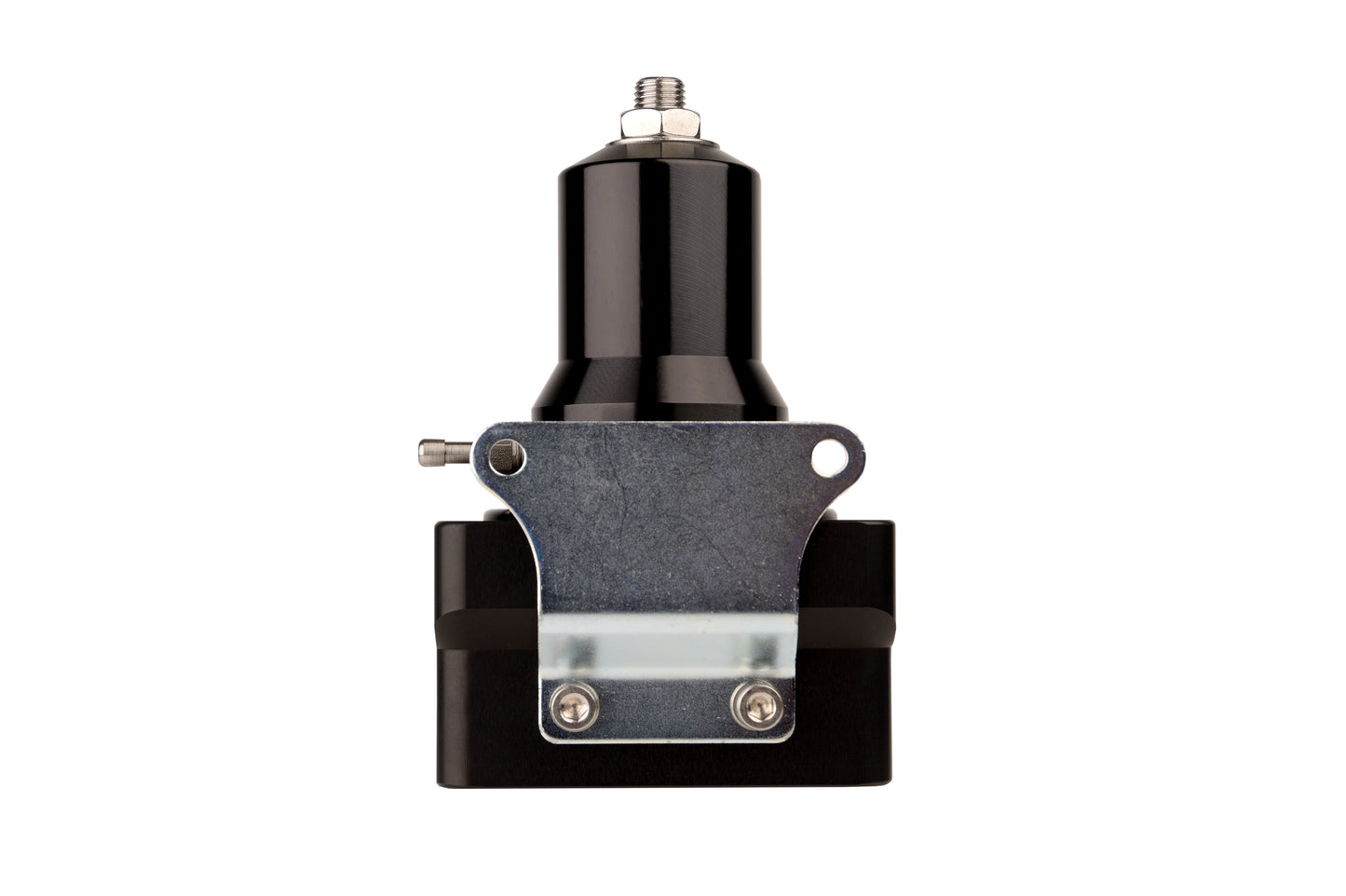

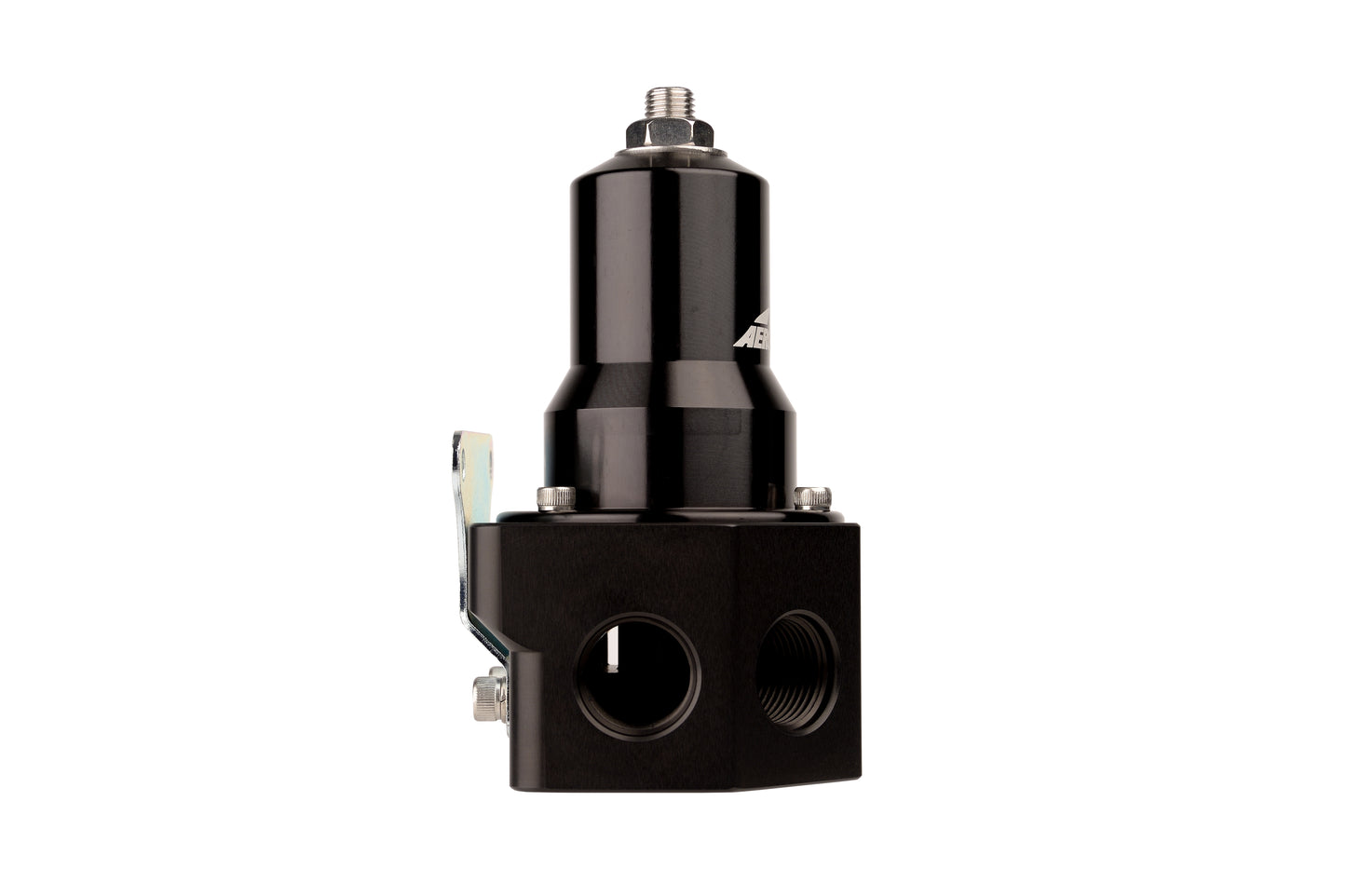

Pro-Series EFI Regulator (No Fittings)

$253.39

-

P/N 13145: Pro-Series EFI Regulator Only
Your favorite Pro-Series Regulator but without the port fittings

The tuner’s choice for high horsepower EFI applications. The Pro-Series Regulator can support up to 2000 HP. For engines requiring high volume, high pressure fuel delivery the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power.

  • Base adjustment range 30-75 PSI with the installed spring.
  • Base adjustment range 75-125 PSI with the optional spring.
  • Ideal for Pro-Series, Brushless 3.5 and Brushless 5.0 Electric Pumps using the 30-75 PSI spring.
  • Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring.
  • Auxiliary ports available for nitrous applications, pressure gauges and transducers.
  • References Vacuum/Boost on a 1:1 ratio.
  • Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications)
  • Dedicated 1/8” NPT gauge/pressure port.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • Virtually indestructible black hard-coat anodized finish.
SKU: 13145 Categories: ,

Description

P/N 13145: Pro-Series EFI Regulator Only
Your favorite Pro-Series Regulator but without the port fittings

The tuner’s choice for high horsepower EFI applications. The Pro-Series Regulator can support up to 2000 HP. For engines requiring high volume, high pressure fuel delivery the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power.

  • Base adjustment range 30-75 PSI with the installed spring.
  • Base adjustment range 75-125 PSI with the optional spring.
  • Ideal for Pro-Series, Brushless 3.5 and Brushless 5.0 Electric Pumps using the 30-75 PSI spring.
  • Suitable for 6-GPM mechanical pumps using both the standard and high pressure springs.
  • Auxiliary ports available for nitrous applications, pressure gauges and transducers.
  • References Vacuum/Boost on a 1:1 ratio.
  • Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications)
  • Dedicated 1/8” NPT gauge/pressure port.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • Virtually indestructible black hard-coat anodized finish.

Additional information

Weight 1.35 lbs
Dimensions 8.5 × 4.75 × 4 in

Mounting Configuration: External

CARB or EFI Power Adder FUEL Horsepower
