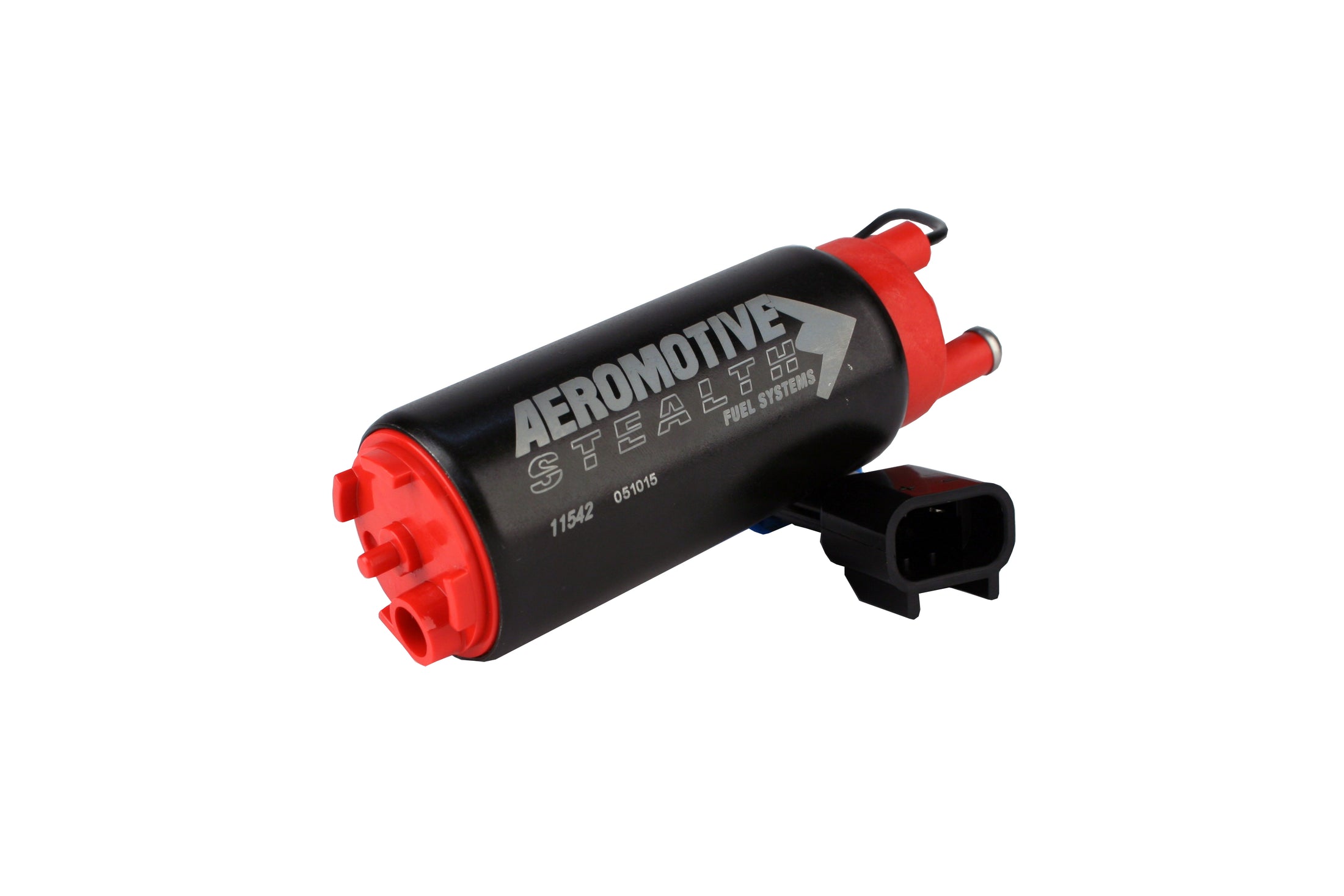

340 LPH In-Tank Fuel Pump, Inline Inlet

340 LPH In-Tank Fuel Pump, Inline Inlet

Part Number: 11542
Skip to product information

Product Info

P/N 11542: 340 Fuel Pump, Offset Inlet

**Offset Inlet, inline w/ outlet** The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. (to find your vehicle, see the applications guide below) What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.

  • Fits most vehicles where popular aftermarket pumps are applicable.

  • Offset Inlet, In-line with outlet • E85 Compatible

  • OEM 39mm Body

  • Includes universal filter sock - may not fit in some applications (see OEM filter replacement recommendations)

  • Designed for in-tank use only

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Can be used in carbureted or EFI applications

  • Turbine pump mechanism increases durability and can be used in pulse modulated applications.

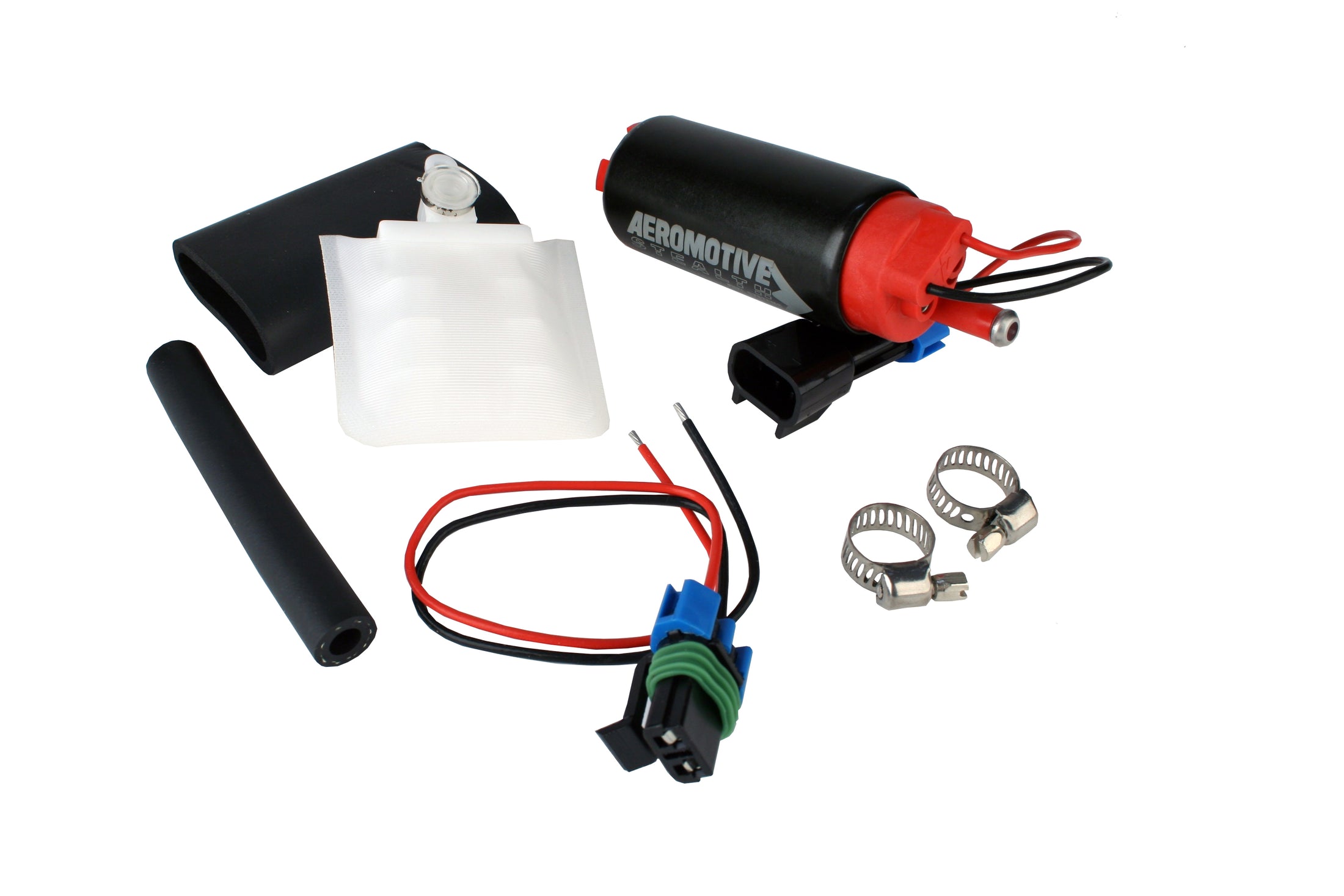

P/N 11542 Includes:

  • 340 Stealth Pump

  • Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)

  • Supersedes P/N 11142

Specifications

Series Stealth 340
Maximum Flow Rating 340
Maximum Pressure 40
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External Internal
Pump Design Turbine Impeller
Integrated Controller No
Pulse Width Modulation Compatible Yes
Fuel Delivery Type Carburation & Fuel Injection
Outlet Type Barb
Outlet Outside Diameter 0.35
Maximum Current Draw 15.5
Voltage 12
Negative Ground Yes
Wire Quantity 2
Wiring Harness Included Yes
Terminal Gender 280 Metri_Pack
Terminal Quantity 2
Terminal Type Lead Wire
Strainer Included Yes
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included No
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.

Reviews

340 LPH In-Tank Fuel Pump, Inline Inlet

340 LPH In-Tank Fuel Pump, Inline Inlet

Part Number: 11542
Regular price $144.95
Sale price $144.95 Regular price

Part Number: 11542
Does This part fit My vehicle?
Product details
View full details

Product Info

P/N 11542: 340 Fuel Pump, Offset Inlet

**Offset Inlet, inline w/ outlet** The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. (to find your vehicle, see the applications guide below) What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That's over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications.

  • Fits most vehicles where popular aftermarket pumps are applicable.

  • Offset Inlet, In-line with outlet • E85 Compatible

  • OEM 39mm Body

  • Includes universal filter sock - may not fit in some applications (see OEM filter replacement recommendations)

  • Designed for in-tank use only

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • Can be used in carbureted or EFI applications

  • Turbine pump mechanism increases durability and can be used in pulse modulated applications.


P/N 11542 Includes:

  • 340 Stealth Pump

  • Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)

  • Supersedes P/N 11142

Specifications

Series Stealth 340
Maximum Flow Rating 340
Maximum Pressure 40
Fuel Type Gas/E85
Universal Or Specific Fit Universal
Internal Or External Internal
Pump Design Turbine Impeller
Integrated Controller No
Pulse Width Modulation Compatible Yes
Fuel Delivery Type Carburation & Fuel Injection
Outlet Type Barb
Outlet Outside Diameter 0.35
Maximum Current Draw 15.5
Voltage 12
Negative Ground Yes
Wire Quantity 2
Wiring Harness Included Yes
Terminal Gender 280 Metri_Pack
Terminal Quantity 2
Terminal Type Lead Wire
Strainer Included Yes
Fuel Sending Unit Included No
Regulator Included No
Mounting Bracket Included No
Mounting Hardware Included No
Seal And Lock Ring Included No
Gasket Or Seal Included No
Grade Type Performance

Installation Instructions

Instruction Manual
Installation Instructions

Download PDF

Product warranty

Retail Purchasers:

  • Warranty: 1 year from purchase date with proof.
  • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
  • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
  • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

Distributors:

  • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
  • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

Returns & replacements

Returns:

  • Accepted within 90 days of purchase.
  • Prior authorization required; items must be new and resaleable.
  • Call 913-808-2376 to initiate a return and get an RGA.
  • Ship unused products in original packaging with proof of purchase.
  • You pay return shipping; use a trackable method.
  • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
  • Refunds processed within 5-10 days of return acceptance.

Defective Items:

  • Call 913-808-2376 (Returns and Repairs) for assistance.
  • Follow RGA/Warranty protocol for refunds or replacements.

Limits of Responsibility:

  • See Product Warranty page for more info.

Price/Description Changes:

  • Prices, pictures, and descriptions may change.
  • Report discrepancies within 30 days.
  • No refunds for price differences on past or future orders.

Promotions:

  • Discount codes apply to web store orders only.
  • Not valid on previous orders or outside promotion dates.

Reviews

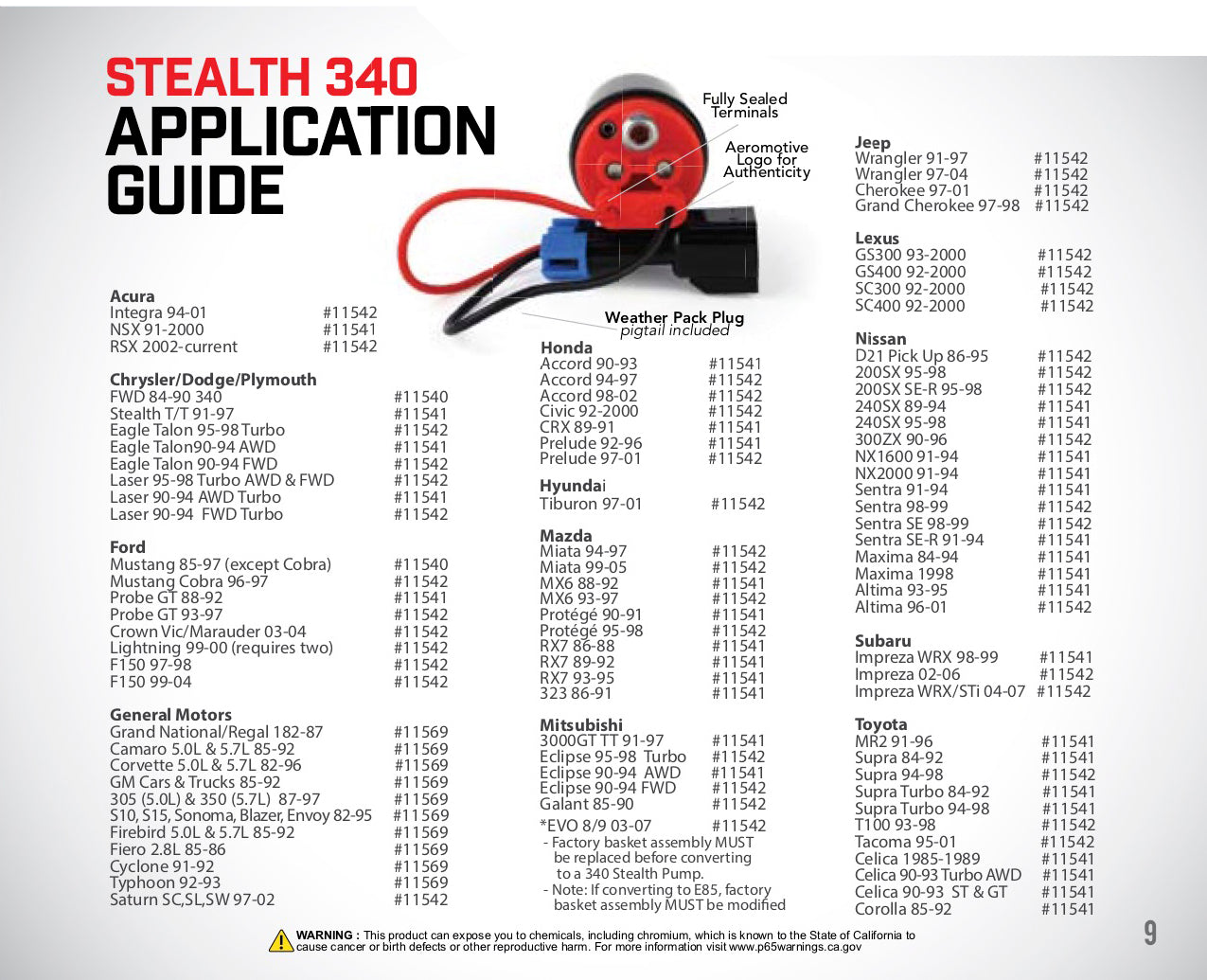

Year / Make / Model 2002-2006 Subaru Impreza
Engine Size(s) Liters: 2.0, 2.5

Year / Make / Model 2004-2007 Subaru Impreza WRX
Engine Size(s) Liters: 2.0, 2.5

Year / Make / Model 2004-2007 Subaru Impreza WRX STI
Engine Size(s) Liters: 2.0, 2.5

Year / Make / Model 1997-2001 Hyundai Tiburon
Engine Size(s) Liters: 1.8, 2.0

Year / Make / Model 1990-1994 Eagle Talon
Engine Size(s) Liters: 1.8, 2.0
Cubic Inches: 107, 122

Year / Make / Model 1995-1998 Eagle Talon
Engine Size(s) Liters: 2.0
Cubic Inches: 122

Year / Make / Model 1997-2001 Jeep Cherokee
Engine Size(s) Liters: 2.5, 4.0
Cubic Inches: 150, 242

Year / Make / Model 1997-1998 Jeep Grand Cherokee
Engine Size(s) Liters: 4.0, 5.2, 5.9
Cubic Inches: 242, 318, 360

Year / Make / Model 1991-1995 Jeep Wrangler
Engine Size(s) Liters: 2.4, 2.5, 4.0
Cubic Inches: 148, 150, 242

Year / Make / Model 1997-2004 Jeep Wrangler
Engine Size(s) Liters: 2.4, 2.5, 4.0
Cubic Inches: 148, 150, 242

Year / Make / Model 1994 Plymouth Laser
Engine Size(s) Liters: 2.0
Cubic Inches: 122

Year / Make / Model 2003-2004 Ford Crown Victoria
Engine Size(s) Liters: 4.6
Cubic Inches: 281

Year / Make / Model 1997-1998 Ford F-150
Engine Size(s) Liters: 4.2, 4.6, 4.9, 5.4
Cubic Inches: 256, 281, 300, 330

Year / Make / Model 1999-2004 Ford F-150
Engine Size(s) Liters: 4.2, 4.6, 5.4
Cubic Inches: 256, 281, 330

Year / Make / Model 1997 Ford Mustang Cobra
Engine Size(s) Liters: 4.6
Cubic Inches: 281

Year / Make / Model 1993-1997 Ford Probe GT
Engine Size(s) Liters: 2.5

Year / Make / Model 2003-2004 Mercury Marauder
Engine Size(s) Liters: 4.6
Cubic Inches: 281

Year / Make / Model 1994-2001 Acura Integra
Engine Size(s) Liters: 1.8

Year / Make / Model 1994-2002 Honda Accord
Engine Size(s) Liters: 2.2, 2.3, 2.7, 3.0

Year / Make / Model 1992-2000 Honda Civic
Engine Size(s) Liters: 1.5, 1.6
Cubic Inches: 98

Year / Make / Model 1997-2001 Honda Prelude
Engine Size(s) Liters: 2.2

Year / Make / Model 1986-1994 Nissan D21
Engine Size(s) Liters: 2.4, 3.0
Cubic Inches: 181

Year / Make / Model 1995-1998 Nissan 200SX
Engine Size(s) Liters: 1.6, 2.0
Cubic Inches: 97, 122

Year / Make / Model 1990-1996 Nissan 300ZX
Engine Size(s) Liters: 3.0
Cubic Inches: 181

Year / Make / Model 1996-2001 Nissan Altima
Engine Size(s) Liters: 2.4

Year / Make / Model 1991-1994 Nissan Sentra SE-R
Engine Size(s) Liters: 2.0
Cubic Inches: 122

Year / Make / Model 1998-1999 Nissan Sentra
Engine Size(s) Liters: 1.6, 2.0
Cubic Inches: 97, 122

Year / Make / Model 1998-1999 Nissan Sentra SE
Engine Size(s) Liters: 2.0
Cubic Inches: 122

Year / Make / Model 1986-1990 Mitsubishi Galant
Engine Size(s) Liters: 2.0, 2.4, 3.0
Cubic Inches: 122, 181

Year / Make / Model 1990-1994 Mitsubishi Eclipse
Engine Size(s) Liters: 1.8, 2.0
Cubic Inches: 107, 122

Year / Make / Model 1995-1998 Mitsubishi Eclipse
Engine Size(s) Liters: 2.0
Cubic Inches: 122

Year / Make / Model 1992-2000 Lexus SC300
Engine Size(s) Liters: 3.0

Year / Make / Model 1992-2000 Lexus SC400
Engine Size(s) Liters: 4.0

Year / Make / Model 1993-2000 Lexus GS300
Engine Size(s) Liters: 3.0

Year / Make / Model 1998-2000 Lexus GS400
Engine Size(s) Liters: 4.0

Year / Make / Model 1994-1998 Toyota Supra
Engine Size(s) Liters: 3.0

Year / Make / Model 1993-1998 Toyota T100
Engine Size(s) Liters: 2.7, 3.0, 3.4

Year / Make / Model 1995-2001 Toyota Tacoma
Engine Size(s) Liters: 2.4, 2.7, 3.4

Year / Make / Model 1994-1997 Mazda Miata
Engine Size(s) Liters: 1.8

Year / Make / Model 1999-2005 Mazda Miata
Engine Size(s) Liters: 1.8

Year / Make / Model 1993-1997 Mazda MX-6
Engine Size(s) Liters: 2.0, 2.5

Year / Make / Model 1995-1998 Mazda Protege
Engine Size(s) Liters: 1.5, 1.8
