A1000 Return Style Carbureted Fuel Pressure Regulator

A1000 Return Style Carbureted Fuel Pressure Regulator

Part Number: 13204
Skip to product information

Product Info

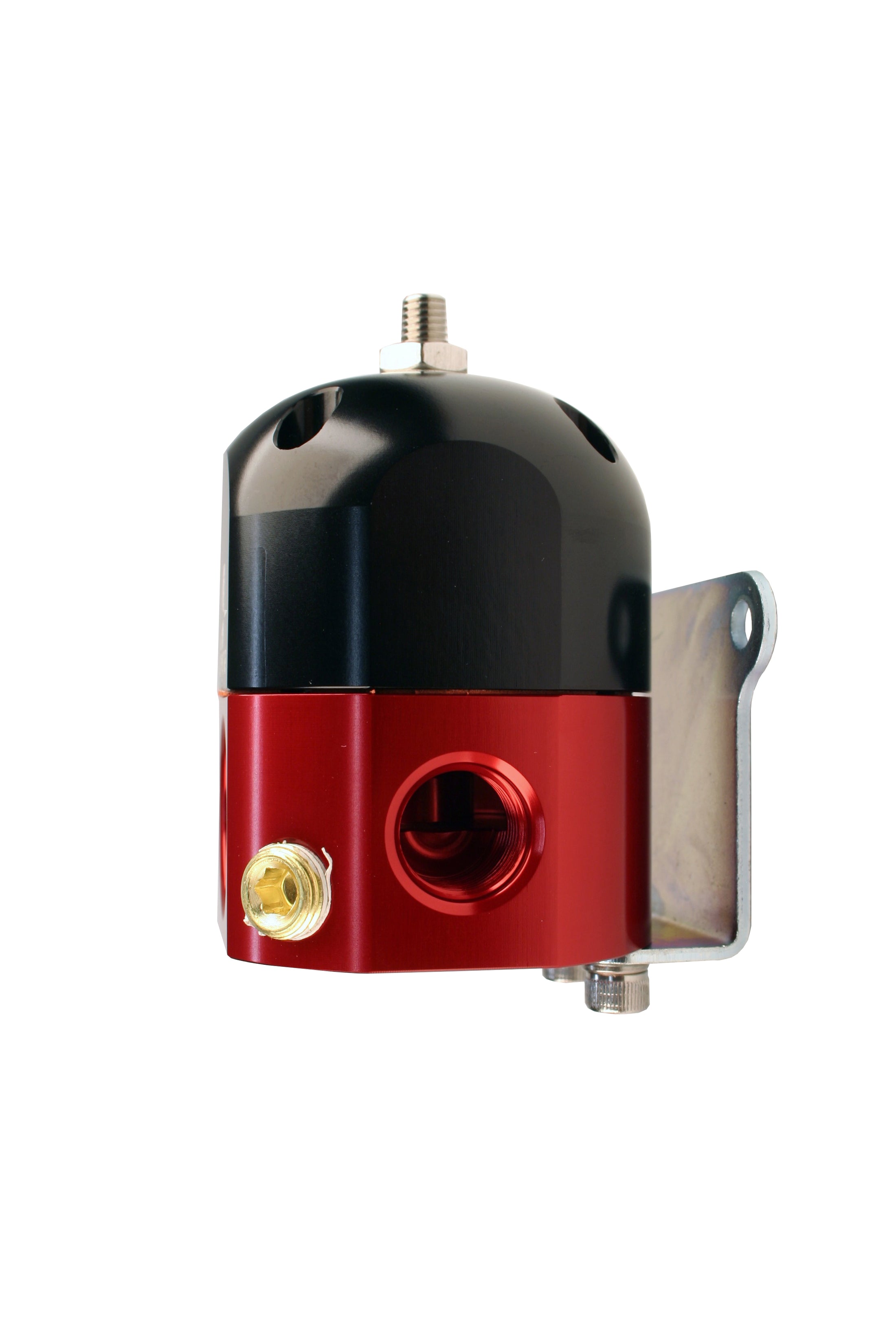

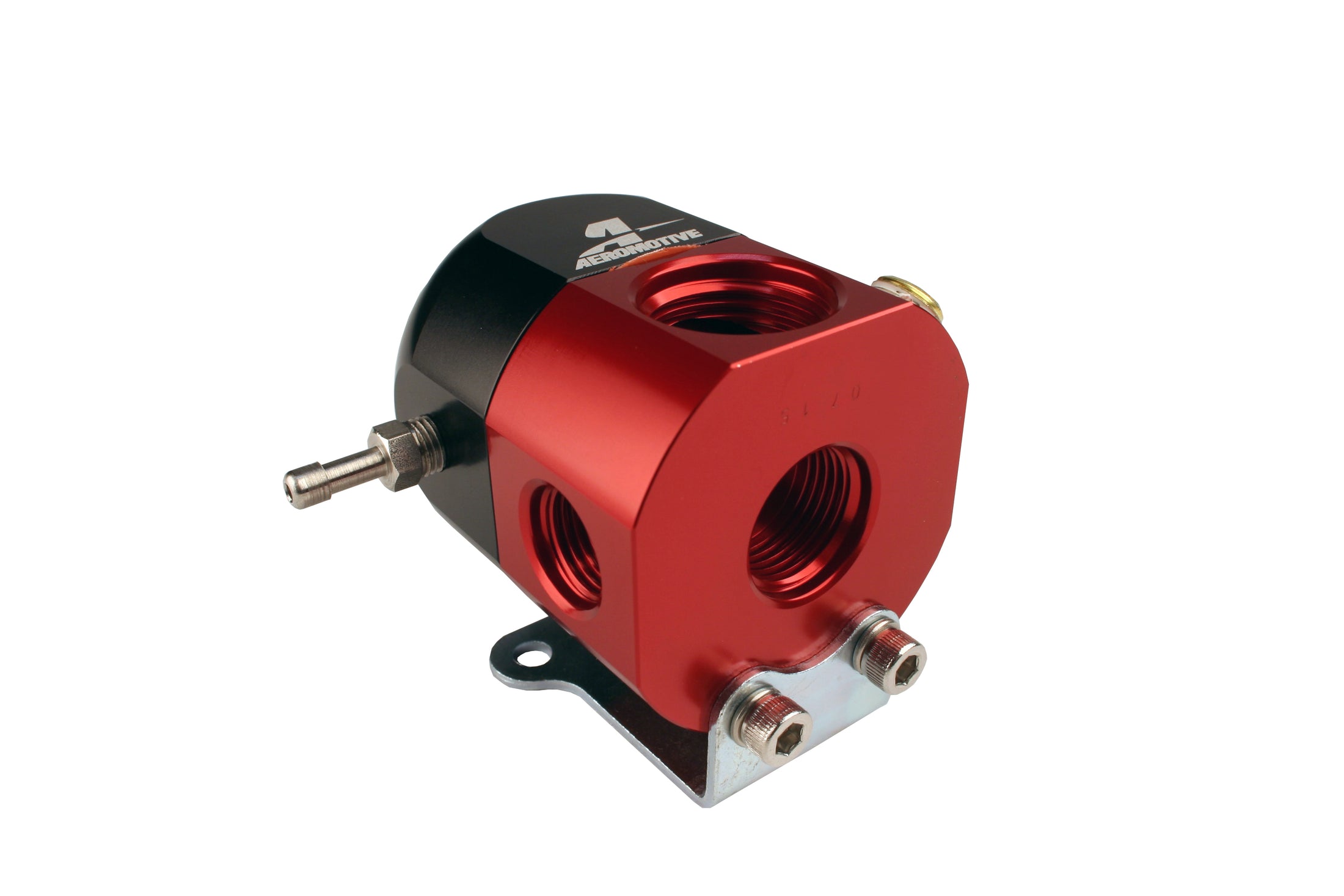

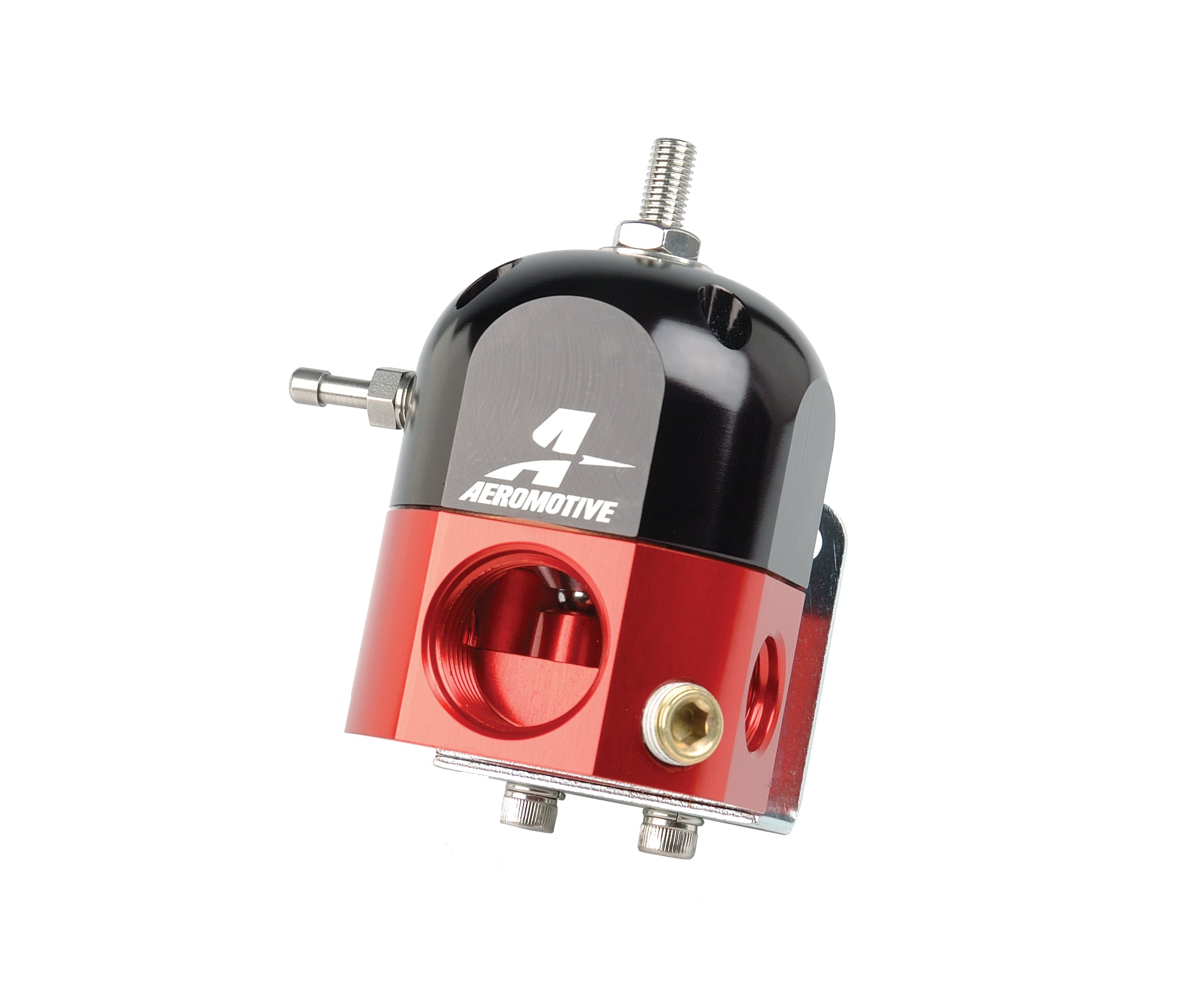

P/N 13204: A1000 Carbureted return style Regulator

The A1000 return style Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or 'blow-through' supercharged engines.

  • Base fuel pressure adjustable from 3-15 PSI.

  • (1) ORB-10 inlet port and (1) ORB-08 return port.

  • P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port.

  • Fuel pressure rises on a 1:1 ratio when referencing boost.

  • return style design provides the ultimate, dynamic fuel delivery system.

  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

  • EFI conversions will require a larger-than-stock return line for proper low pressure control.


Note: Requires AN-08 return line from bottom of regulator back to top of the tank.

Specifications

Pressure Range 3-15 PSI
Adjustable Yes
Minimum Pressure 3 PSI
Maximum Pressure 15 PSI
Mounting Bracket Included Yes
Port Quantity 3
Inlet Port Diameter ORB-10
Inlet Gender Female
Gauge Included No
Color Black/Red
Grade Type Performance

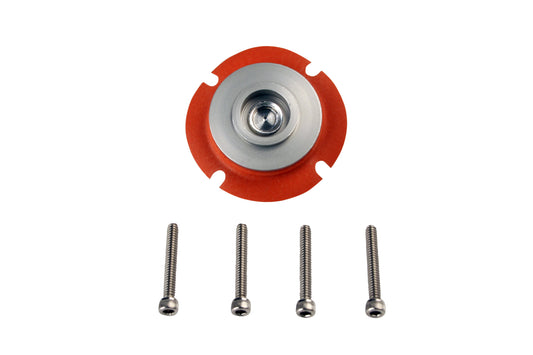

Regulator Service Kits

  • Installation Instructions

    Instruction Manual
    Installation Instructions

    Download PDF

    Product warranty

    Retail Purchasers:

    • Warranty: 1 year from purchase date with proof.
    • Claims: Contact Aeromotive for issues and RGA. Pre-paid shipping required.
    • Remedies: Limited to product sale price. Not liable for incidental damages. Not for emission-controlled vehicles.
    • Contact: 913-808-2376, option 3 (have part, proof of purchase, pen, paper).

    Distributors:

    • Warranty Returns: Require RGA and proof of customer purchase. Handled as repair or replacement.
    • Stock Adjustments: Annual returns need prior approval and RGA. Over 5% of annual sales incur 15% restocking fee. Account credit only, no cash refunds.

    Returns & replacements

    Returns:

    • Accepted within 90 days of purchase.
    • Prior authorization required; items must be new and resaleable.
    • Call 913-808-2376 to initiate a return and get an RGA.
    • Ship unused products in original packaging with proof of purchase.
    • You pay return shipping; use a trackable method.
    • Refund excludes initial shipping fees and may include up to a 15% restocking fee.
    • Refunds processed within 5-10 days of return acceptance.

    Defective Items:

    • Call 913-808-2376 (Returns and Repairs) for assistance.
    • Follow RGA/Warranty protocol for refunds or replacements.

    Limits of Responsibility:

    • See Product Warranty page for more info.

    Price/Description Changes:

    • Prices, pictures, and descriptions may change.
    • Report discrepancies within 30 days.
    • No refunds for price differences on past or future orders.

    Promotions:

    • Discount codes apply to web store orders only.
    • Not valid on previous orders or outside promotion dates.
